Technical Details
| Case/Package | TO-264 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 230V |
| Collector Emitter Breakdown Voltage | 230V |
| Collector Emitter Saturation Voltage | 3V |
| Collector Emitter Voltage (VCEO) | 230V |
| Contact Plating | Tin |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 30MHz |
| Gain Bandwidth Product | 30MHz |
| Height | 26.4mm |
| hFE Min | 35 |
| Introduction Date | 2007-06-19 |
| Lead Free | Lead Free |
| Length | 20.2mm |
| Lifecycle Status | Obsolete |
| Max Collector Current | 15A |
| Max Frequency | 30MHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 150W |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | NPN |
| Power Dissipation | 150W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Transition Frequency | 30MHz |
| Width | 5.2mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

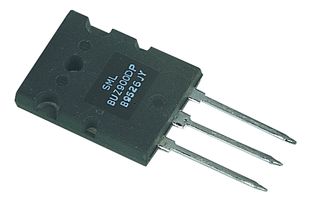

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| STMicroelectronics | Obsolete | ||
| Toshiba | Obsolete | ||
| onsemi | Production | ||
| onsemi | Production | ||
| onsemi | Production | ||
| onsemi | Production | ||
| STMicroelectronics | Obsolete | ||
| onsemi | Production | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| element14 APAC |
SG: 0
|
$ | 2.709 | 1.4949 | 1.4949 | 1.2748 | 1.1307 | 1.1307 | ||
