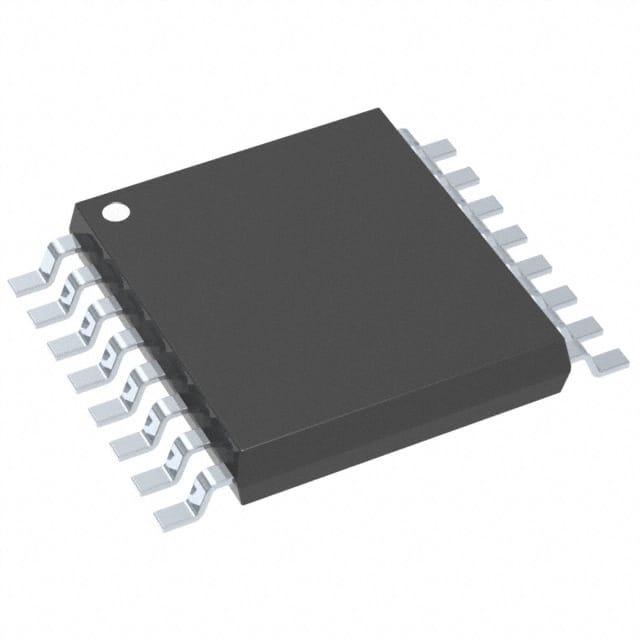

ALED6001TR - STMicroelectronics
Automotive grade PWM-dimmable single channel LED driver with integrated boost controller
Technical Details
| China RoHS | Compliant |
| Country of Origin | Philippines |
| Dimming | Analog, PWM |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 1MHz |
| Height - Seated (Max) | 1.2mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2014-10-01 |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Max Input Voltage | 36V |
| Max Operating Temperature | 125°C |
| Max Output Voltage | 60V |
| Max Supply Voltage | 36V |
| Max Switching Frequency | 1MHz |
| Min Input Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 5.5V |
| Min Switching Frequency | 100kHz |
| Mount | Surface Mount |
| Nominal Input Voltage (DC) | 12V |
| Number of Channels | 1 |
| Number of Characters | 1 |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 18 |
| Number of Terminals | 16 |
| Operating Supply Voltage | 12V |
| Packaging | Tape and Reel |
| Quiescent Current | 10µA |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Switching Frequency | 1MHz |
| Temperature Grade | Automotive |
| Terminal Pitch | 650µm |
| Topology | Buck-Boost, SEPIC |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
