BD139 - STMicroelectronics
Transistor, Bipolar, Si, NPN, Amplifier, Driver, Vceo 80V, IC 1.5A, Pd 12.5W, SOT-32
Technical Details
| Case/Package | SOT-32 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 80V |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Saturation Voltage | 500mV |
| Collector Emitter Voltage (VCEO) | 80V |
| Contact Plating | Tin |
| Country of Origin | India |
| Current Rating | 1.5A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 13.2mm |
| hFE Min | 25 |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.00.75 |
| Introduction Date | 1980-01-04 |
| Lead Free | Lead Free |
| Length | 7.8mm |
| Lifecycle Status | Production |
| Max Collector Current | 1.5A |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 8W |
| Manufacturer Package Identifier | SOT-32-0016114E |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | NPN |
| Power Dissipation | 12.5W |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 250MHz |
| Voltage Rating (DC) | 80V |
| Weight | 90.718474mg |
| Width | 2.9mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

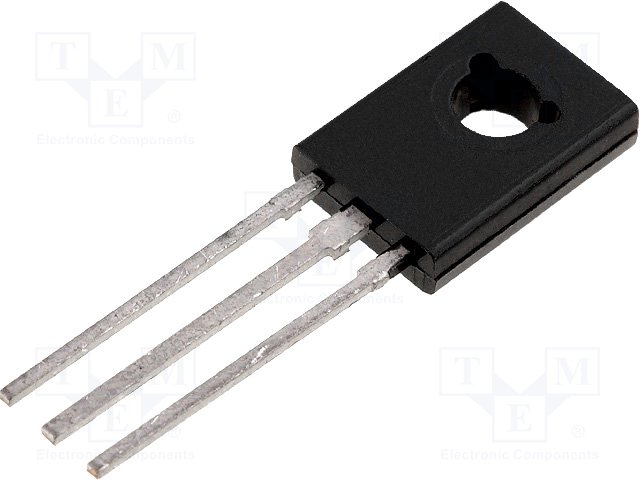

Images
