BD241AA - STMicroelectronics
Power Bipolar Transistor, 3A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin
Technical Details
| Case/Package | TO-220-3 |
| China RoHS | Compliant |
| Collector Emitter Breakdown Voltage | 60V |
| Collector Emitter Voltage (VCEO) | 60V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| hFE Min | 10 |
| Introduction Date | 2007-07-12 |
| Lifecycle Status | Obsolete |
| Max Collector Current | 3A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 40W |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Polarity | NPN |
| REACH SVHC | Yes |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

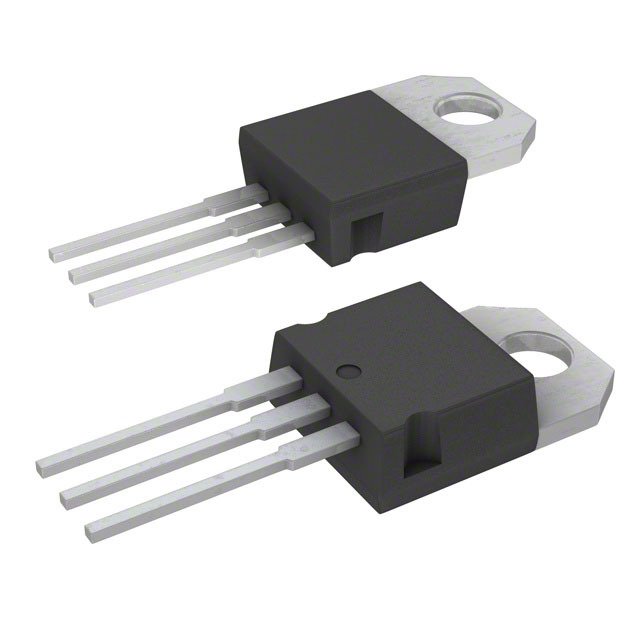

Images
