STMicroelectronics - BDW94C

Bipolar (Bjt) Single Transistor, Darlington, Pnp, 100 V, 80 W, 12 A, 20000 Rohs Compliant: Yes

 Datasheets

Technical Details

Case/Package TO-220
China RoHS Non-Compliant
Collector Base Voltage (VCBO) 100V
Collector Emitter Breakdown Voltage 100V
Collector Emitter Saturation Voltage 3V
Collector Emitter Voltage (VCEO) 100V
Contact Plating Tin
Country of Origin Mainland China
Current Rating -12A
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Emitter Base Voltage (VEBO) 2.5V
Height 19.68mm
hFE Min 100
Harmonized Tariff Schedule (HTS) Code 8541.29.00.95
Introduction Date 1989-06-01
Lead Free Lead Free
Length 10.4mm
Lifecycle Status Production
Max Collector Current 12A
Max Junction Temperature (Tj) 150°C
Max Operating Temperature 150°C
Max Power Dissipation 80W
Manufacturer Package Identifier TO-220-P011
Min Operating Temperature -65°C
Mount Through Hole
Number of Elements 1
Number of Pins 3
Number of Terminals 3
Polarity PNP
Power Dissipation 80W
Radiation Hardening No
REACH SVHC No
RoHS Compliant
Schedule B 8541290080
Transition Frequency 20MHz
Voltage Rating (DC) -100V
Weight 6.000006g
Width 4.6mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

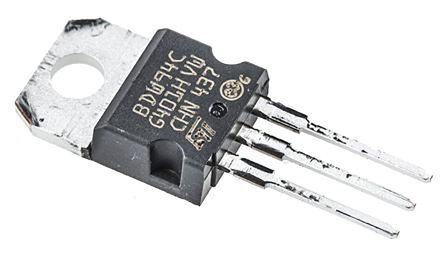

STMicroelectronics BDW94C | RS
