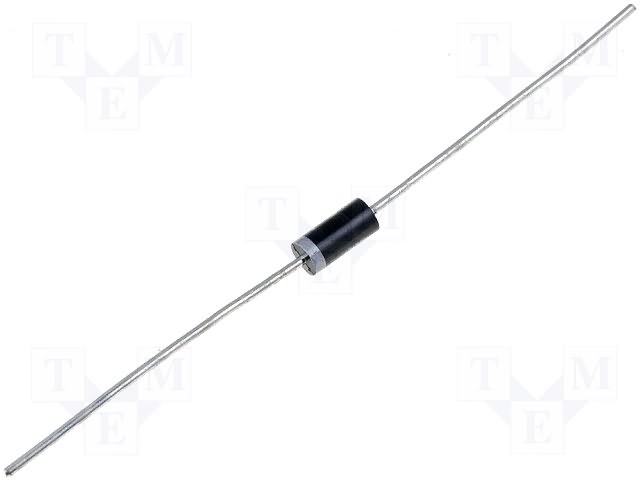

BZW06-13 - STMicroelectronics
Trans Voltage Suppressor Diode, 600W, 13V V(RWM), Unidirectional, 1 Element, Silicon, DO-15
Technical Details
| Breakdown Voltage | 15V |
| Case/Package | DO-15 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 27.2V |
| Direction | Unidirectional |
| Height | 3.53mm |
| Length | 6.75mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 1.7W |
| Max Reverse Leakage Current | 5µA |
| Min Breakdown Voltage | 14.3V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Peak Pulse Current | 147A |
| Peak Pulse Power | 600W |
| Peak Reverse Current | 5µA |
| Polarity | Unidirectional |
| REACH SVHC | No |
| Reverse Standoff Voltage | 13V |
| RoHS | Compliant |
| Test Current | 1mA |
| Width | 3.53mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| STMicroelectronics | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| STMicroelectronics | Obsolete | ||
| Vishay | Obsolete | ||
| Diotec | Production | ||
| onsemi | Obsolete | ||
| Vishay | Obsolete | ||
| Diotec | Production | ||
| Panjit | Production | ||
| STMicroelectronics | Obsolete |
