BZW06-31BRL - STMicroelectronics
Trans Voltage Suppressor Diode, 600W, 31V V(RWM), Bidirectional, 1 Element, Silicon, DO-15
Technical Details
| Breakdown Voltage | 34.2V |
| Capacitance | 950pF |
| Case/Package | DO-15 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 64.3V |
| Composition | Zener |
| Diameter | 3.53mm |
| Lead Free | Lead Free |
| Length | 6.75mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 1.7W |
| Max Surge Current | 1mA |
| Min Breakdown Voltage | 34.2V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Bidirectional Channels | 1 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 30.8V |
| Peak Pulse Current | 62A |
| Peak Pulse Power | 600W |
| Peak Reverse Current | 5µA |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Power Rating | 600W |
| REACH SVHC | No |
| Reverse Standoff Voltage | 31V |
| RoHS | Compliant |
| Voltage Rating (DC) | 31V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

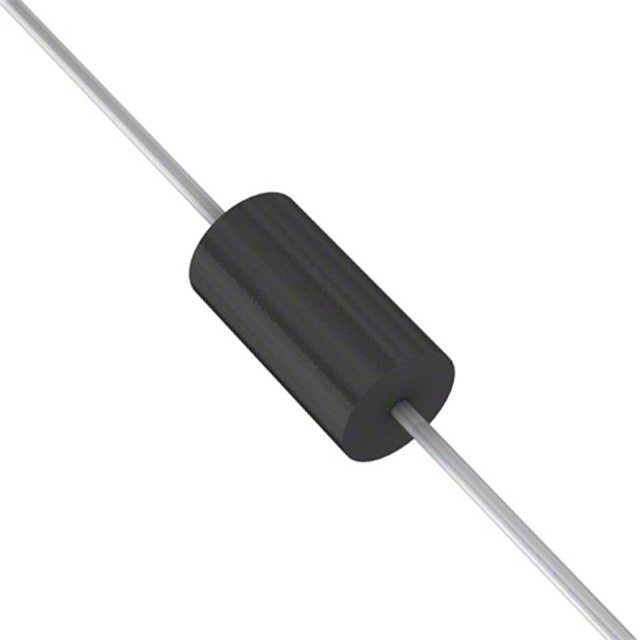

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diotec | Production | ||
| Taiwan Semiconductor | Production | ||
| STMicroelectronics | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Diotec | Production | ||
| Vishay | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| World Products | Production | ||
| Semikron | Unknown |
