ESDALCL5-1BM2 - STMicroelectronics

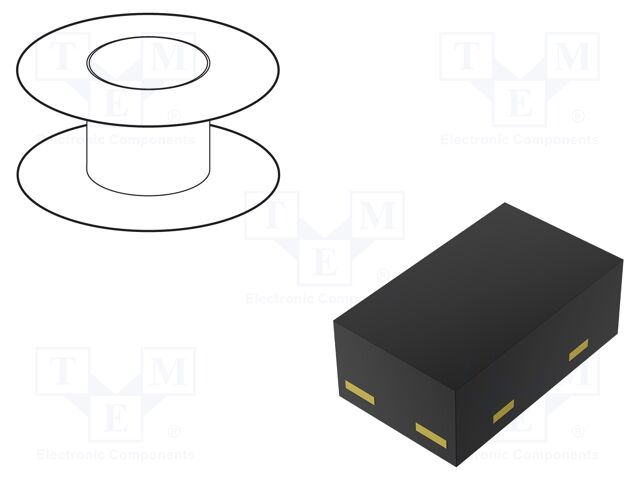

ESDA Series 5 V 26 pF Bi-Directional 1-Line ESD Protection TVS Diode - SOD-882
Technical Details
| Breakdown Voltage | 8V |
| Capacitance | 26pF |
| China RoHS | Compliant |
| Clamping Voltage | 21V |
| Composition | Zener |
| Country of Origin | Mainland China |
| Depth | 600µm |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ESD Protection | Yes |
| Height | 500µm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2012-10-31 |
| Lead Free | Lead Free |
| Leakage Current | 1nA |
| Length | 1mm |
| Lifecycle Status | Obsolete |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Repetitive Reverse Voltage (Vrrm) | 3V |
| Max Reverse Leakage Current | 10nA |
| Max Surge Current | 9A |
| Min Breakdown Voltage | 5V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 5V |
| Packaging | Tape & Reel |
| Peak Pulse Current | 9A |
| Peak Pulse Power | 150W |
| Peak Reverse Current | 10nA |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 3V |
| RoHS | Compliant |
| Schedule B | 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Width | 650µm |
