L6387ED - STMicroelectronics

IGBT/MOSFET Driver, 2 Channels, High Side and Low Side, 650 mA, 17 V, 105 ns, 8 Pins, SOIC

Technical Details

Case/Package	SOP
China RoHS	Compliant
Fall Time	30ns
Frequency	400kHz
Height	1.25mm
Height - Seated (Max)	1.75mm
Lead Free	Lead Free
Length	4.9mm
Lifecycle Status	Production
Max Operating Temperature	125°C
Max Output Current	650mA
Max Power Dissipation	750mW
Max Supply Voltage	17V
Min Operating Temperature	-45°C
Min Supply Voltage	5.5V
Mount	Surface Mount
Number of Channels	2
Number of Circuits	1
Number of Drivers	2
Number of Outputs	2
Number of Pins	8
Number of Terminals	8
Operating Supply Voltage	15V
Output Current	650mA
Output Voltage	580V
Power Dissipation	750mW
Propagation Delay	110ns
Radiation Hardening	No
REACH SVHC	Yes
Rise Time	50ns
RoHS	Compliant
Schedule B	8542390000
Terminal Pitch	1.27mm
Turn-Off Delay Time	105ns
Turn-On Delay Time	110ns
Undervoltage Threshold	5.5V
Width	3.9mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

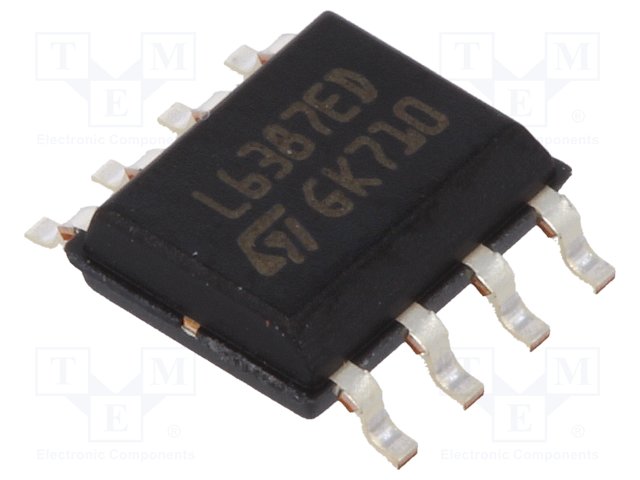

STMicroelectronics L6387ED | TME
