LD2985BM50R - STMicroelectronics
LD2985 Series 150 mA 5.0V Fixed Low Noise LDO Voltage Regulator - SOT-23-5
Technical Details
| Case/Package | LSSOP |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Dropout Voltage | 280mV |
| Height | 1.3mm |
| Height - Seated (Max) | 1.45mm |
| Input Bias Current | 80µA |
| Lead Free | Contains Lead |
| Length | 2.9mm |
| Lifecycle Status | Production |
| Max Input Voltage | 16V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Output Current | 150mA |
| Min Input Voltage | 2.5V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Number of Regulators | 1 |
| Number of Terminals | 5 |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Packaging | Cut Tape |
| Polarity | Positive |
| Quiescent Current | 100µA |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Terminal Pitch | 950µm |
| Voltage Tolerance | 3.5% |
| Width | 1.625mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

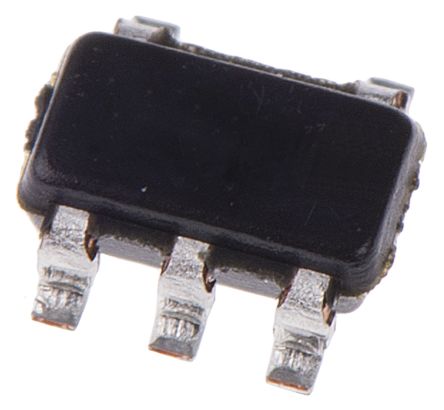

Images
