LM323T - STMicroelectronics
Standard Regulator Pos 5V 3A 3-Pin(3+Tab) TO-220AB Tube / IC REG LDO 5V 3A TO220
Technical Details
| Case/Package | TO |
| China RoHS | Non-Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 9.15mm |
| Height - Seated (Max) | 19.68mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 1980-01-04 |
| Lead Free | Lead Free |
| Length | 10.2mm |
| Lifecycle Status | Obsolete |
| Max Input Voltage | 15V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Output Current | 3A |
| Max Power Dissipation | 30W |
| Min Input Voltage | 7.5V |
| Min Operating Temperature | 0°C |
| Min Output Voltage | 4.75V |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 3 |
| Number of Regulators | 1 |
| Number of Terminals | 3 |
| Output Current | 3A |
| Output Type | Fixed |
| Output Voltage | 5V |
| Polarity | Positive |
| Power Dissipation | 30W |
| Power Rating | 30W |
| Quiescent Current | 20mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Terminal Pitch | 2.54mm |
| Voltage Tolerance | 5% |
| Width | 4.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

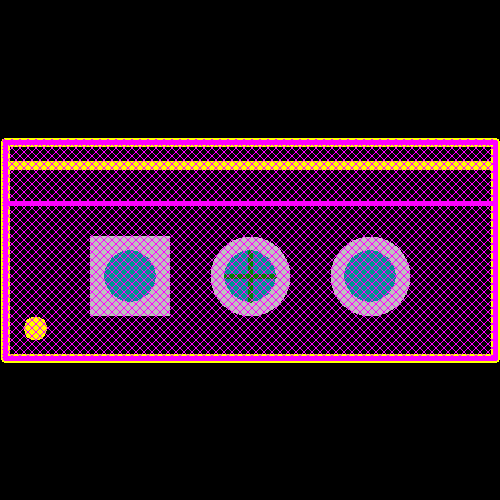

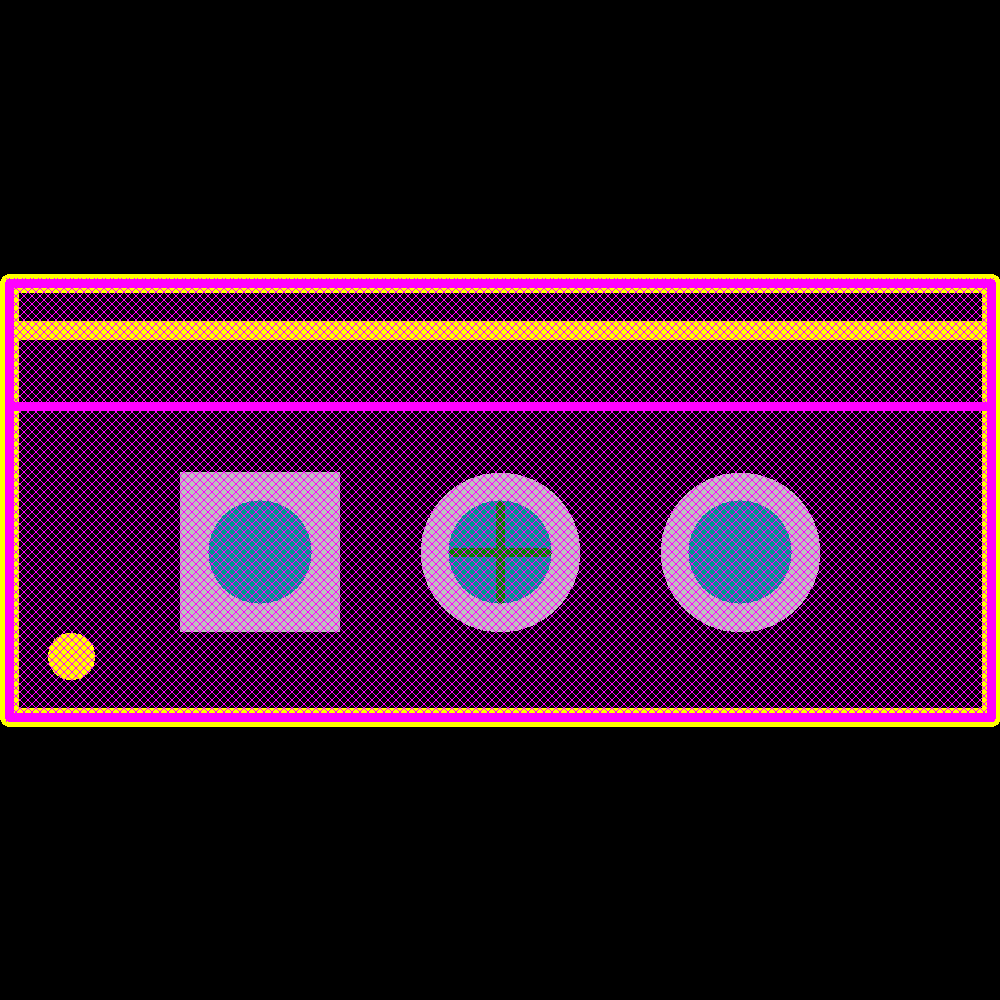

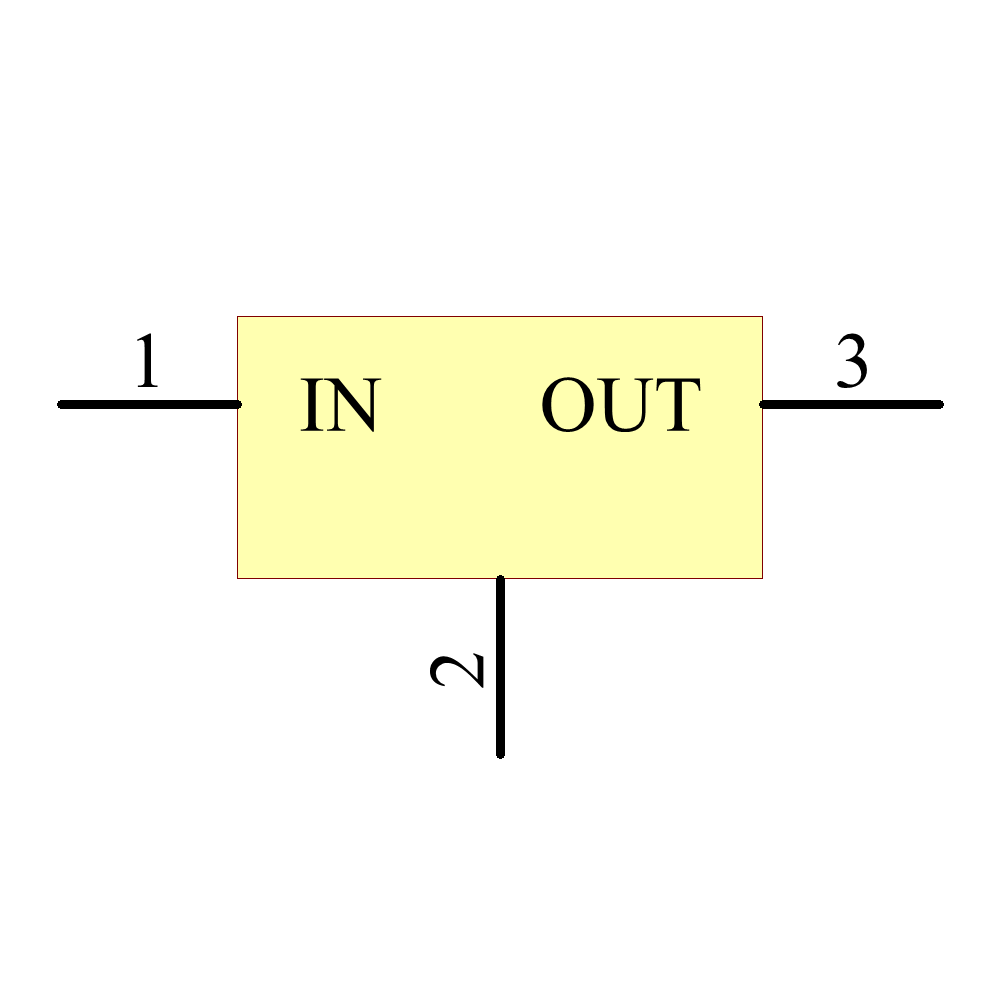

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices / Linear Technology | Obsolete | ||
| Analog Devices / Linear Technology | Obsolete | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices / Linear Technology | Unknown | ||
| Semelab | Unknown | ||
| STMicroelectronics | Obsolete | ||
| onsemi | Obsolete | ||
| Texas Instruments | Obsolete | ||
| Analog Devices / Linear Technology | Obsolete | ||
| TT Electronics | Obsolete |
