Integrated Circuits (ICs)  >  Memory  >  EEPROM

STMicroelectronics - M24C02-WMN6TP

M24C02-WMN6TP - STMicroelectronics

M24C02 Series 2 Kb (256 x 8) 2.5 V SMT Serial I²C Bus EEPROM - SOIC-8

 Datasheets

Technical Details

Access Time 900ns
Ambient Temperature Range High 85°C
Case/Package SOP
China RoHS Compliant
Country of Origin Mainland China
Density 2kb
Export Control Classification Number (ECCN) Code EAR99
Frequency 400kHz
Height 1.75mm
Height - Seated (Max) 1.75mm
Harmonized Tariff Schedule (HTS) Code 8542.32.00.51
Interface Serial
Introduction Date 1980-01-04
Lead Free Lead Free
Length 4.9mm
Lifecycle Status Production
Max Frequency 400kHz
Max Operating Temperature 85°C
Max Supply Current 2mA
Max Supply Voltage 5.5V
Memory Size 256B
Memory Type EEPROM
Manufacturer Package Identifier SO8N-SO-A
Min Operating Temperature -40°C
Min Supply Voltage 2.5V
Mount Surface Mount
Nominal Supply Current 1mA
Number of Circuits 1
Number of Pins 8
Number of Terminals 8
Number of Words 256
Operating Supply Voltage 5V
Packaging Tape and Reel
Radiation Hardening No
REACH SVHC Yes
RoHS Compliant
Schedule B 8542320050, 8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|8542320050|85
Temperature Grade Industrial
Terminal Pitch 1.27mm
Width 3.9mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

STMicroelectronics M24C02-WMN6TP | TME

TME

Datasheets

 Farnell
 Farnell
 Farnell

Lifecycle Status Indicator

   Production

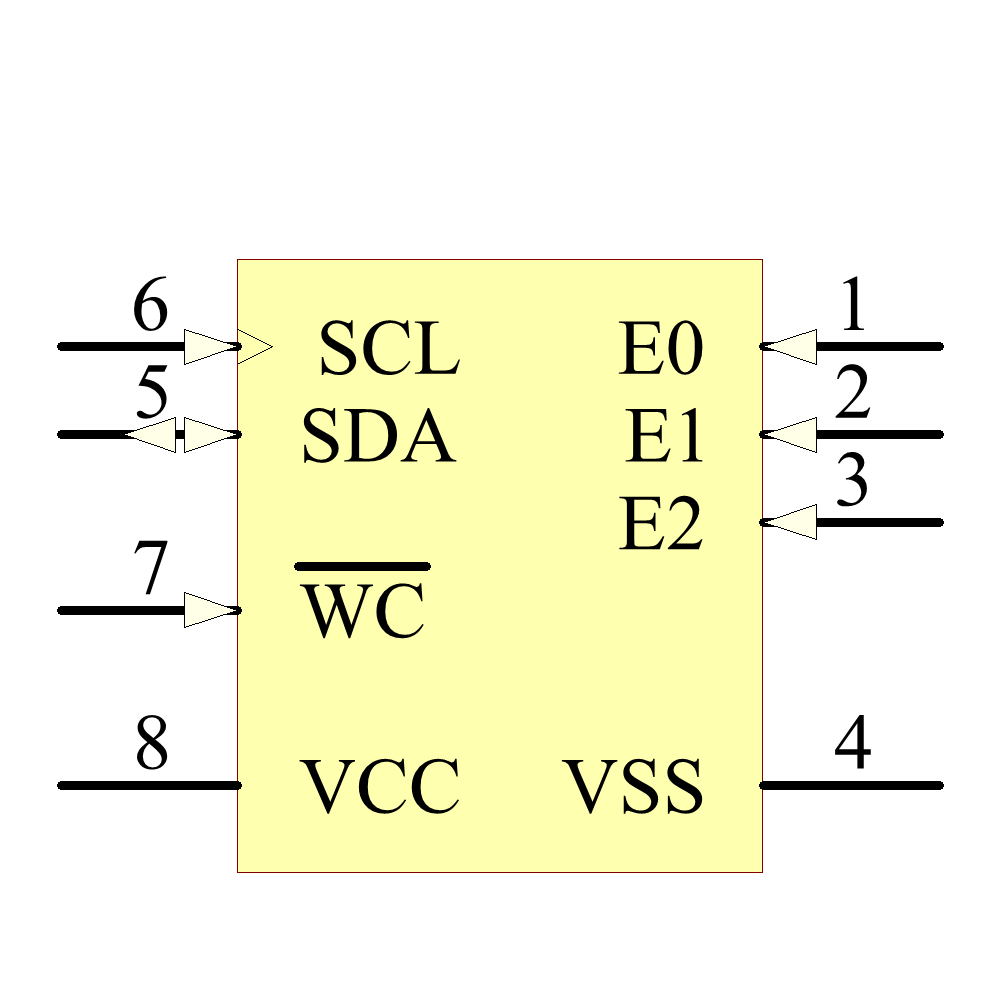

Symbol

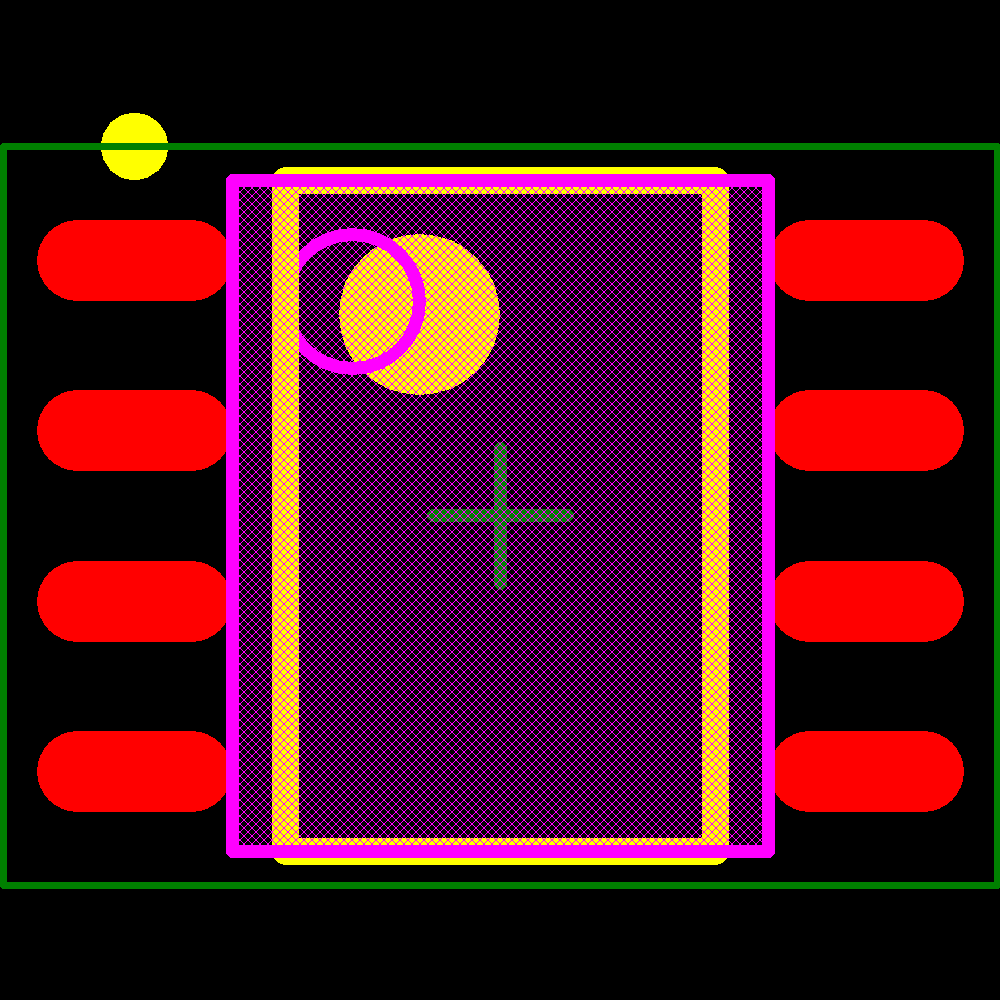

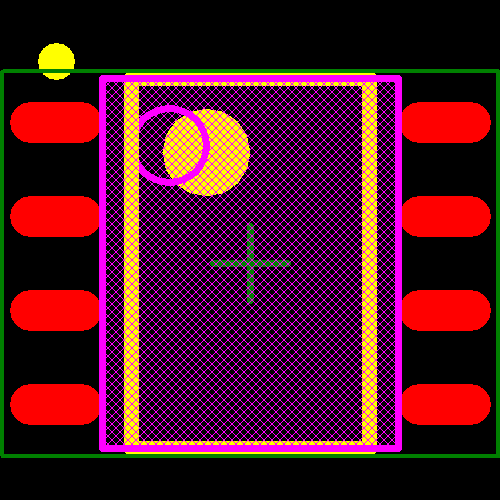

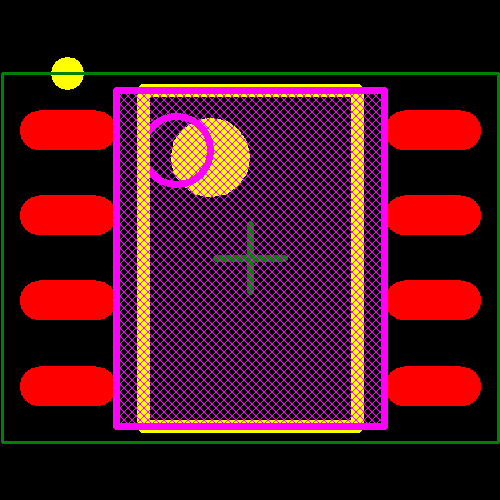

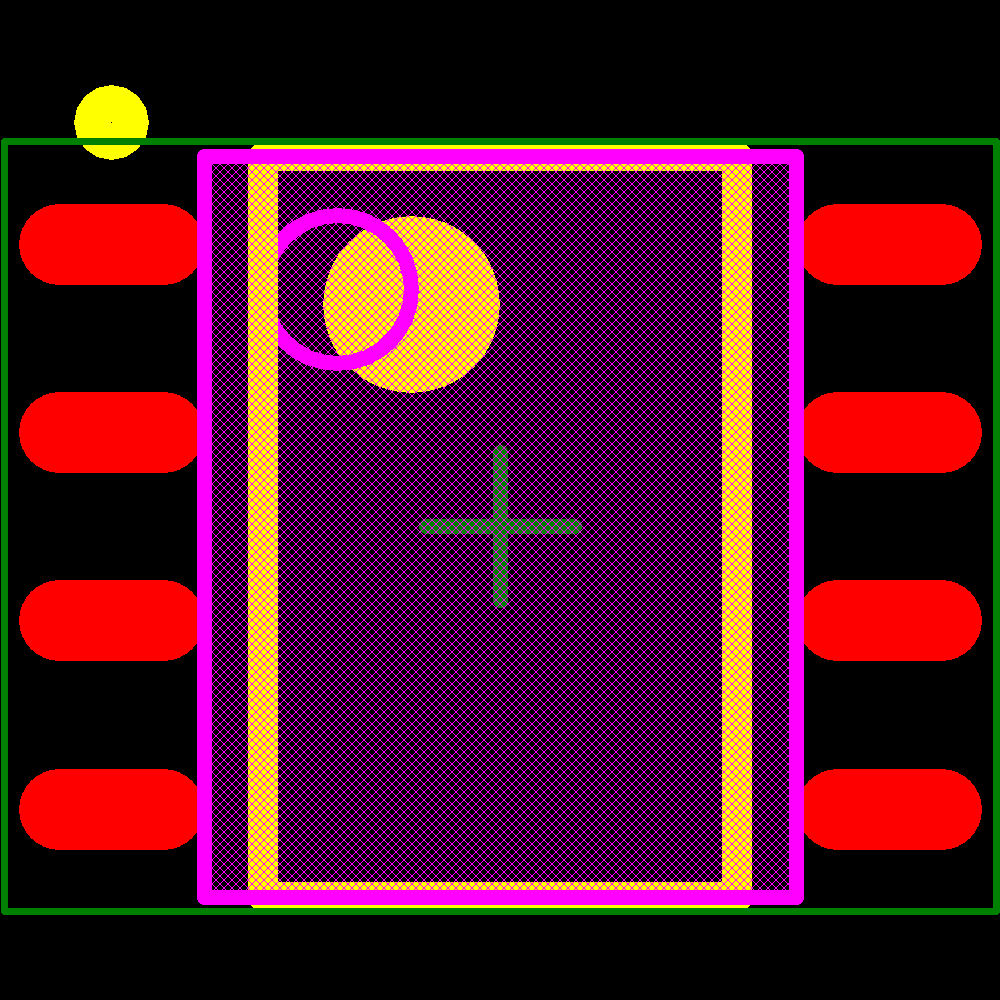

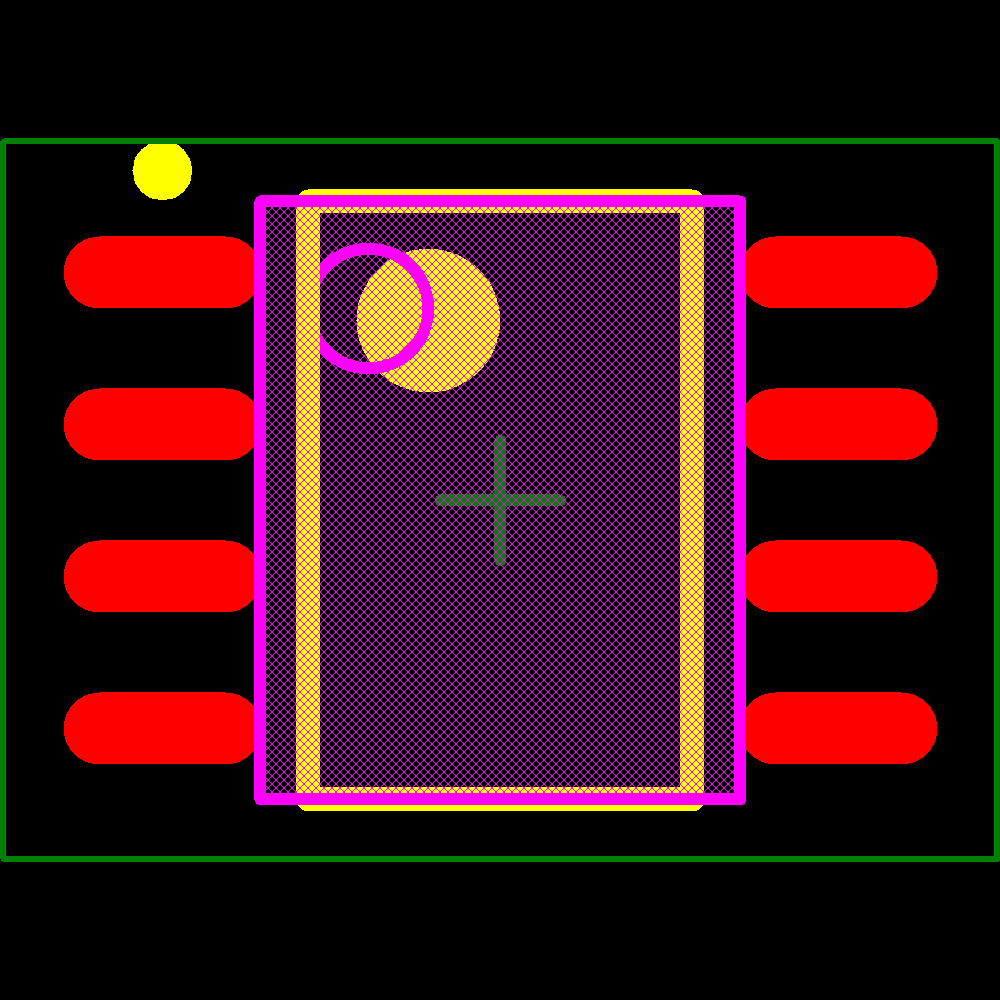

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
STMicroelectronics
M24C02-WMN6TP/S
Obsolete
STMicroelectronics
M24C02-WMN6P
Production
STMicroelectronics
M24C02-WMN3T/W
Obsolete
STMicroelectronics
M24C02-WMN6G
Obsolete
STMicroelectronics
M24C02-WMN3
Obsolete
STMicroelectronics
M24C02-WMN3TP/W
Obsolete
STMicroelectronics
M24C02-WMN3TG/S
Obsolete
STMicroelectronics
M24C02-WMN3P/S
Production
STMicroelectronics
M24C02-WMN6
Obsolete
STMicroelectronics
M24C02-WMN3TP/S
Obsolete

See more alternatives See less alternatives
