M74HC107B1R - STMicroelectronics
J-K Flip-Flop, HC/UH Series, 2-Func, Negative Edge Triggered, 2-Bit, Complementary Output, CMOS, PDIP14
Technical Details
| Case/Package | DIP |
| China RoHS | Compliant |
| Clock Edge Trigger Type | Negative Edge |
| Frequency | 21MHz |
| Height - Seated (Max) | 5.1mm |
| High Level Output Current | -5.2mA |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 1980-01-04 |
| Lifecycle Status | Obsolete |
| Load Capacitance | 50pF |
| Logic Function | Flip-Flop |
| Low Level Output Current | 4mA |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 6V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Gates | 2 |
| Number of Input Lines | 4 |
| Number of Inputs | 2 |
| Number of Output Lines | 2 |
| Number of Pins | 14 |
| Number of Terminals | 14 |
| Operating Supply Voltage | 4.5V |
| Output Current | 5.2mA |
| Polarity | Non-Inverting |
| Propagation Delay | 190ns |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Military |
| Terminal Pitch | 2.54mm |
| Termination | Through Hole |
| Turn-On Delay Time | 210ns |
| Width | 7.62mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

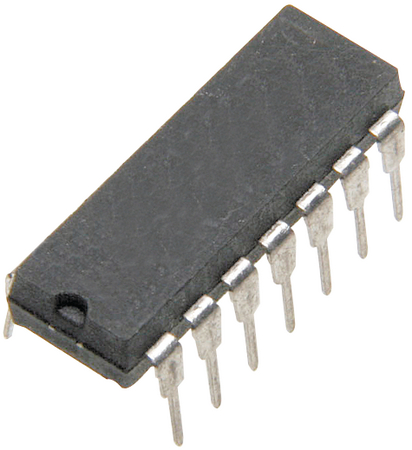

Images
Farnell
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Obsolete | ||
| Rochester Electronics | Unknown | ||
| NXP Semiconductors | Obsolete | ||
| Motorola | Obsolete | ||
| Motorola | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| NXP Semiconductors | Obsolete | ||
| onsemi | Obsolete | ||
| Fairchild Semiconductor | Obsolete |
