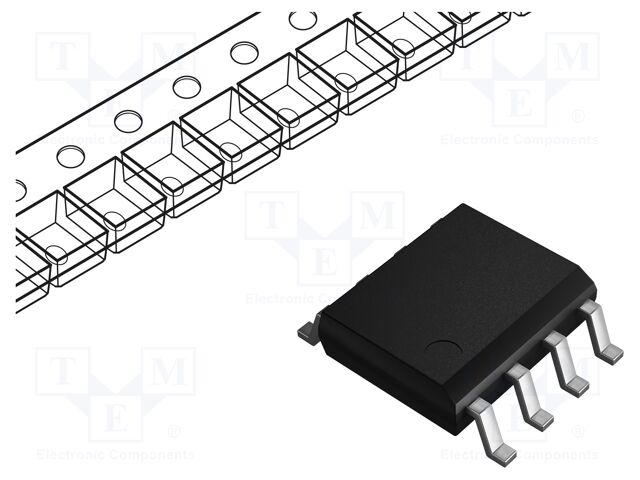

M95640-RMN6P - STMicroelectronics
64K Bit Serial Spi Bus EEPROM With High Speed Clock EEPROM, 8KX8, Serial, Cmos, PDSO8
Technical Details
| Access Time | 80ns |
| Case/Package | SOP |
| China RoHS | Compliant |
| Density | 64kb |
| Frequency | 2MHz |
| Height - Seated (Max) | 1.75mm |
| Interface | Serial |
| Length | 4.9mm |
| Lifecycle Status | Production |
| Max Frequency | 5MHz |
| Max Operating Temperature | 85°C |
| Max Supply Current | 1mA |
| Max Supply Voltage | 5.5V |
| Memory Size | 8kB |
| Memory Type | EEPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Nominal Supply Current | 5mA |
| Number of Circuits | 1 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Operating Supply Voltage | 2.5V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| STMicroelectronics | Production | ||
| STMicroelectronics | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| STMicroelectronics | Obsolete | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production |
