MC34063ABD-TR - STMicroelectronics
DC-DC Switching Buck, Boost, Inverting Regulator, Adjustable, 3V-40Vin, 1.25V-38Vout, 1.5Aout, SOIC-8
Technical Details
| Case/Package | SOP |
| China RoHS | Compliant |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 89% |
| Frequency | 100kHz |
| Height | 1.25mm |
| Height - Seated (Max) | 1.75mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Input Current | 2.5mA |
| Introduction Date | 1980-01-04 |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Lifecycle Status | Production |
| Max Input Voltage | 40V |
| Max Operating Temperature | 85°C |
| Max Output Current | 1.5A |
| Max Output Voltage | 38V |
| Max Supply Current | 4mA |
| Max Supply Voltage | 40V |
| Max Switching Frequency | 100kHz |
| Min Input Voltage | 3V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.25V |
| Mount | Surface Mount |
| Nominal Input Voltage | 5V |
| Nominal Output Voltage | 1.25V |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Output Current | 1.5A |
| Output Type | Adjustable, Fixed |
| Output Voltage | 1.25V |
| Packaging | Tape and Reel |
| Power Dissipation | 625mW |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|85 |
| Switching Frequency | 100kHz |
| Synchronous Rectifier | No |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Topology | Boost |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images

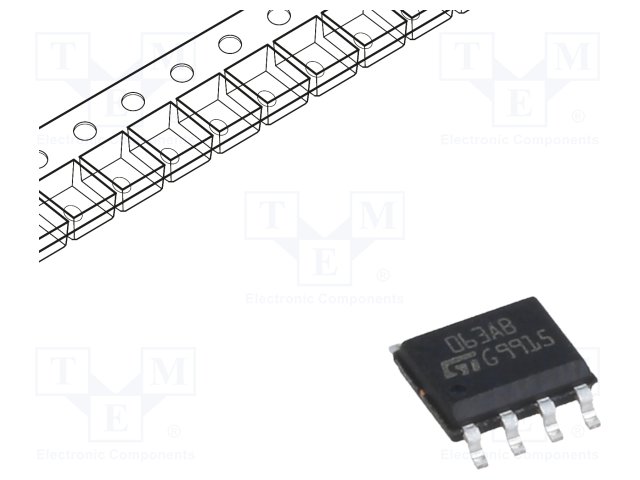

TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Production | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Production | ||
| Texas Instruments | Production |
