Discrete Semiconductors > Transistors > BJTs

MJE2955T - STMicroelectronics

Trans GP BJT PNP 60V 10A 75000mW 3-Pin(3+Tab) TO-220AB Tube

Technical Details

Case/Package	TO-220
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	70V
Collector Emitter Breakdown Voltage	60V
Collector Emitter Saturation Voltage	8V
Collector Emitter Voltage (VCEO)	60V
Country of Origin	Mainland China
Current Rating	-10A
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Frequency	2MHz
Gain Bandwidth Product	2MHz
Height	9.15mm
hFE Min	5
Harmonized Tariff Schedule (HTS) Code	8541.29.00.95
Introduction Date	1980-01-04
Lead Free	Lead Free
Length	10.4mm
Lifecycle Status	Production
Max Collector Current	10A
Max Frequency	2MHz
Max Operating Temperature	150°C
Max Power Dissipation	75W
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Polarity	PNP
Power Dissipation	75W
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8541290080
Transition Frequency	2MHz
Voltage Rating (DC)	-60V
Weight	4.535924g
Width	4.6mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

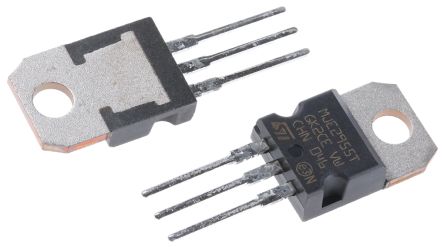

STMicroelectronics MJE2955T | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	MJE2955T	Obsolete
Fairchild Semiconductor	KSB834	Obsolete
Fairchild Semiconductor	KSB707	Obsolete
onsemi	MJE5852	Obsolete
onsemi	D45VH10	Obsolete
Panasonic	2SB0945P	Obsolete
onsemi	MJE15033	Obsolete
onsemi	KSE2955T	Obsolete
onsemi	BD240BTU	Obsolete
Bourns	TIP30-S	Obsolete

See more alternatives See less alternatives
