P6KE15CA - STMicroelectronics
P6KE Series 600 W 15 V Bi Directional Transient Voltage Suppressor - DO-15
Technical Details
| Breakdown Voltage | 15V |
| Case/Package | DO-15 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 27.2V |
| Composition | Zener |
| Country of Origin | Mainland China |
| Diameter | 3.6mm |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1980-01-04 |
| Lead Free | Lead Free |
| Leakage Current | 500µA |
| Length | 7.6mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 15.8V |
| Max Junction Temperature (Tj) | 175°C |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 5W |
| Max Repetitive Reverse Voltage (Vrrm) | 13V |
| Max Reverse Leakage Current | 500µA |
| Max Surge Current | 147A |
| Min Breakdown Voltage | 14.3V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Bidirectional Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 12.8V |
| Peak Pulse Current | 147A |
| Peak Pulse Power | 600W |
| Peak Reverse Current | 500nA |
| Polarity | Bidirectional |
| Power Dissipation | 600W |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 14.3V |
| Reverse Standoff Voltage | 12.8V |
| RoHS | Compliant |
| Test Current | 1mA |
| Voltage Rating (DC) | 15V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

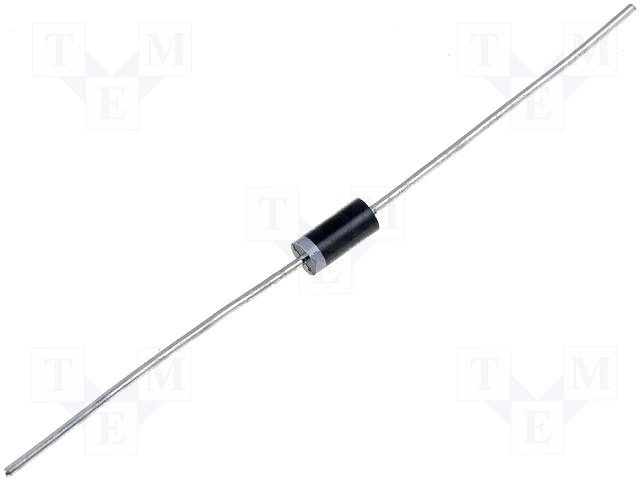

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Vishay | Production | ||
| Semikron | Unknown | ||
| Taiwan Semiconductor | Production | ||
| STMicroelectronics | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| World Products | Production | ||
| Semikron | Unknown | ||
| Littelfuse | Production | ||
| Diodes Inc. | Obsolete | ||
| STMicroelectronics | Obsolete |
