P6KE27ARL - STMicroelectronics
Trans Voltage Suppressor Diode, 600W, 23.1V V(RWM), Unidirectional, 1 Element, Silicon, DO-204AC
Technical Details
| Breakdown Voltage | 27V |
| Capacitance | 1.15nF |
| Case/Package | DO-15 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 48.3V |
| Composition | Zener |
| Diameter | 3.53mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1980-01-04 |
| Lead Free | Lead Free |
| Leakage Current | 500µA |
| Length | 6.75mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 28.4V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 5W |
| Max Surge Current | 1mA |
| Min Breakdown Voltage | 25.7V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 23.1V |
| Peak Pulse Current | 83A |
| Peak Pulse Power | 600W |
| Peak Reverse Current | 500nA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Power Rating | 600W |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 25.7V |
| Reverse Standoff Voltage | 23.1V |
| RoHS | Compliant |
| Test Current | 1mA |
| Voltage Rating (DC) | 27V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

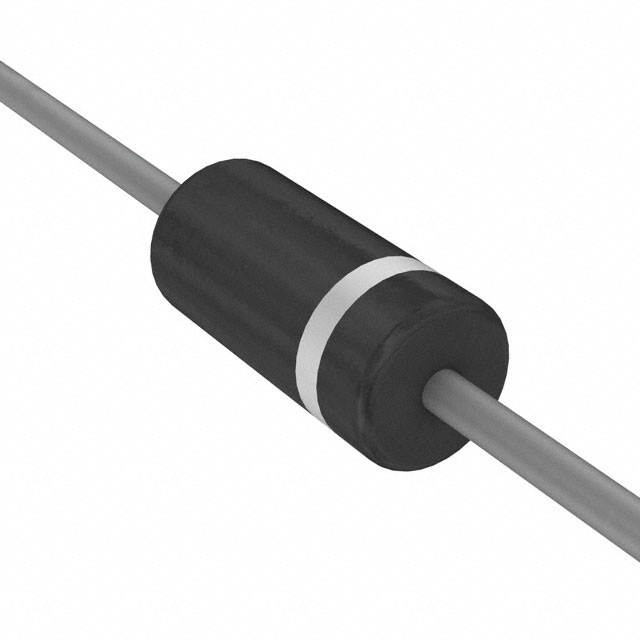

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Leshan Radio Co. | Unknown | ||
| Taiwan Semiconductor | Obsolete | ||
| EIC Semiconductor | Production | ||
| Vishay | Obsolete | ||
| Panjit | Production | ||
| Taiwan Semiconductor | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Production |
