P6KE440ARL - STMicroelectronics
P6KE Series 600 W 440 V Axial Uni-Directional Transil TVS Diode - DO-15
Technical Details
| Breakdown Voltage | 440V |
| Case/Package | DO-15 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 776V |
| Composition | Zener |
| Country of Origin | Mainland China |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1980-01-04 |
| Lead Free | Lead Free |
| Leakage Current | 500µA |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 462V |
| Max Junction Temperature (Tj) | 175°C |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 5W |
| Max Repetitive Reverse Voltage (Vrrm) | 376V |
| Max Reverse Leakage Current | 500µA |
| Max Surge Current | 5.2A |
| Min Breakdown Voltage | 418V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 376V |
| Packaging | Tape & Reel (TR) |
| Peak Pulse Current | 5.2A |
| Peak Pulse Power | 600W |
| Peak Reverse Current | 500nA |
| Polarity | Unidirectional |
| Power Dissipation | 600W |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 418V |
| Reverse Standoff Voltage | 376V |
| RoHS | Compliant |
| Schedule B | 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080 |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

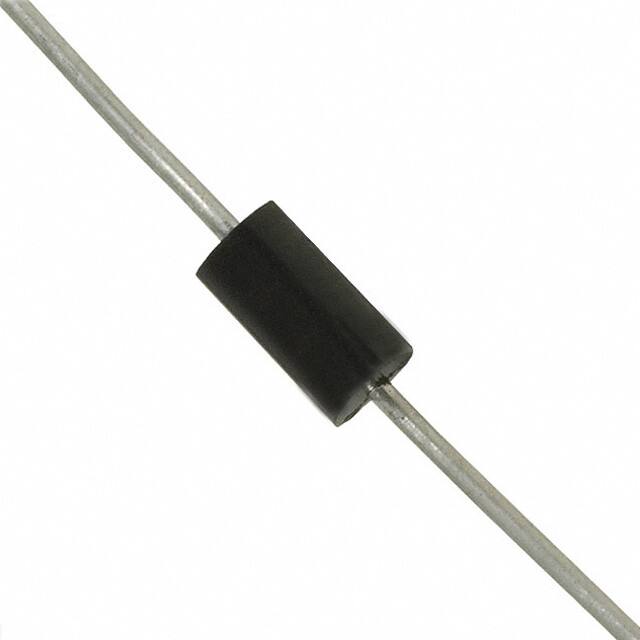

Images
Future Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Vishay | Production | ||
| STMicroelectronics | Obsolete | ||
| Vishay | Production | ||
| Taiwan Semiconductor | Production | ||
| Panjit | NRND | ||
| Littelfuse | Production | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Diotec | Production |
