Discrete Semiconductors > Thyristors

SMP100LC-35 - STMicroelectronics

Thyristor SIDAC 35V 24A 2-Pin DO-214AA T/R

Technical Details

Breakdown Voltage	35V
Capacitance	55pF
China RoHS	Non-Compliant
Clamping Voltage	55V
Contact Plating	Tin
Direction	Bidirectional
Element Configuration	Single
Forward Voltage	35V
Height	2.65mm
Hold Current	150mA
Lead Free	Lead Free
Leakage Current	2µA
Length	4.6mm
Lifecycle Status	Production
Max Breakdown Voltage	35V
Max Junction Temperature (Tj)	150°C
Max Operating Temperature	150°C
Max Repetitive Reverse Voltage (Vrrm)	35V
Max Reverse Leakage Current	2µA
Max Surge Current	100A
Min Breakdown Voltage	35V
Min Operating Temperature	-55°C
Mount	Surface Mount
Number of Channels	1
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Operating Supply Voltage	32V
Packaging	Cut Tape
Peak Pulse Current	100A
Polarity	Bidirectional
Radiation Hardening	No
REACH SVHC	No
Reverse Standoff Voltage	32V
RoHS	Compliant
Schedule B	8541300080, 8541300080\|8541300080\|8541300080\|8541300080\|8541300080
Termination	SMD/SMT
Test Current	5µA
Voltage Rating (DC)	35V
Width	3.95mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

STMicroelectronics SMP100LC-35 | RS

RS

Datasheets

Lifecycle Status Indicator

Production

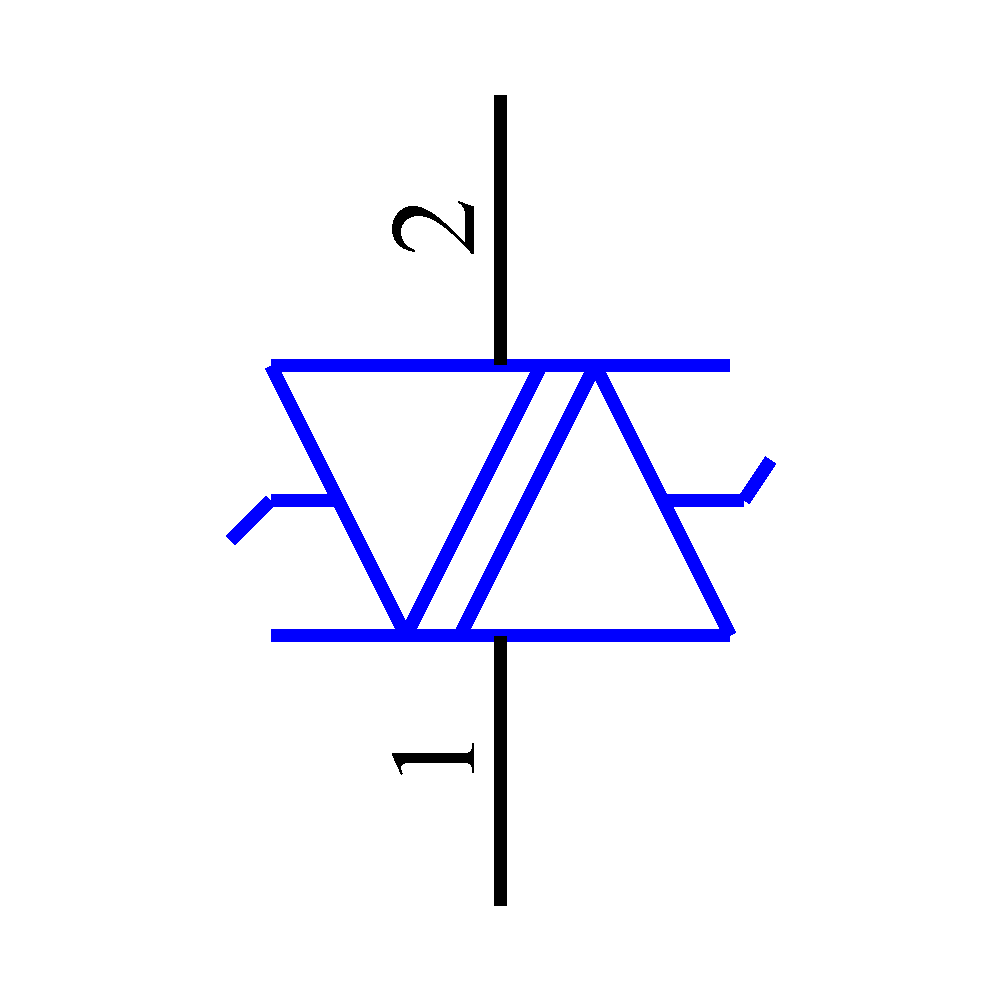

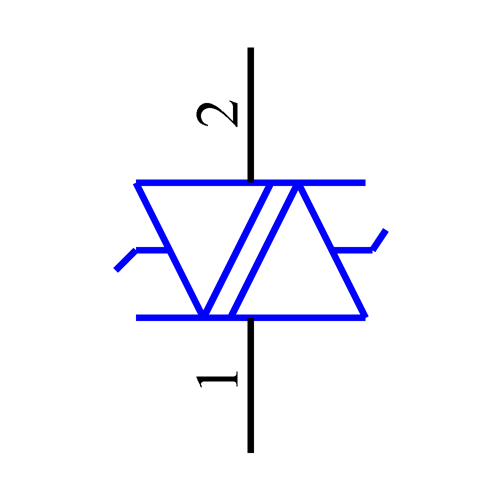

Symbol

SMP100LC-35 Symbol - STMicroelectronics

SMP100LC-35 Symbol - STMicroelectronics

SMP100LC-35 Symbol - STMicroelectronics

SMP100LC-35 Symbol - STMicroelectronics

‹ ›

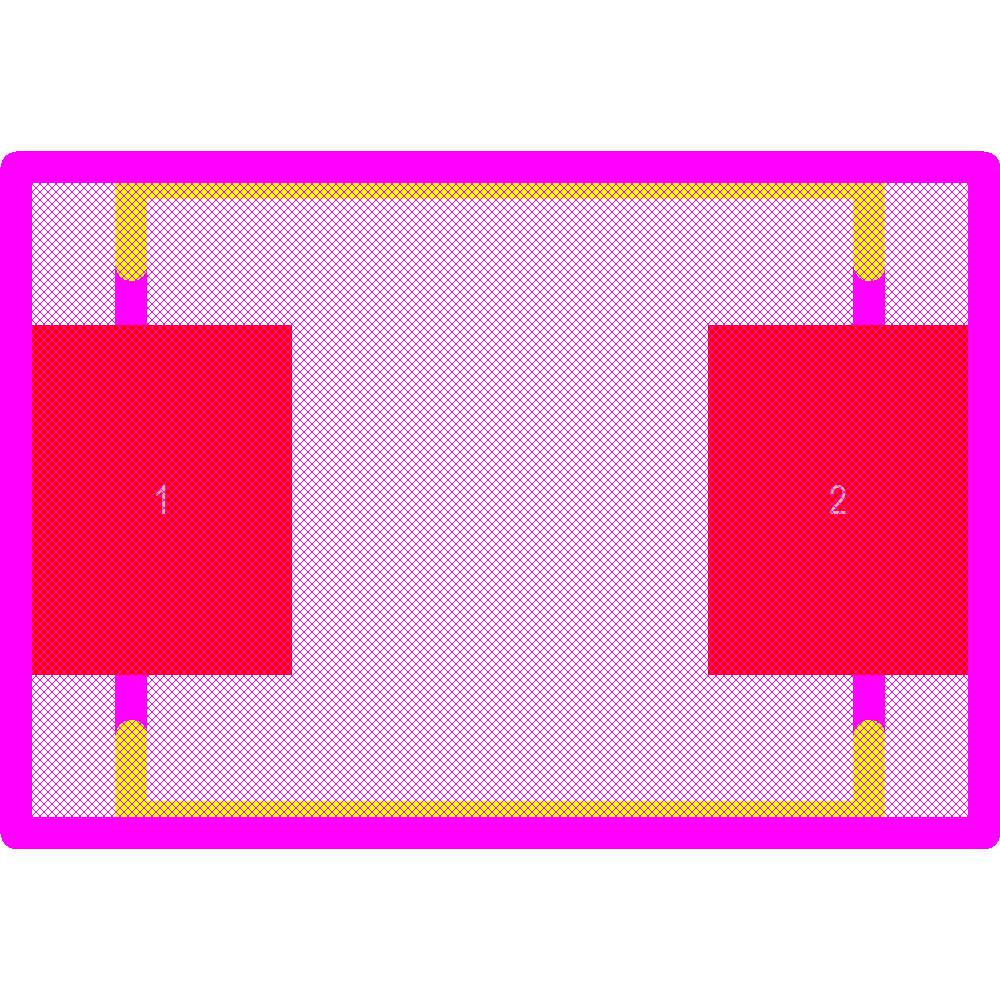

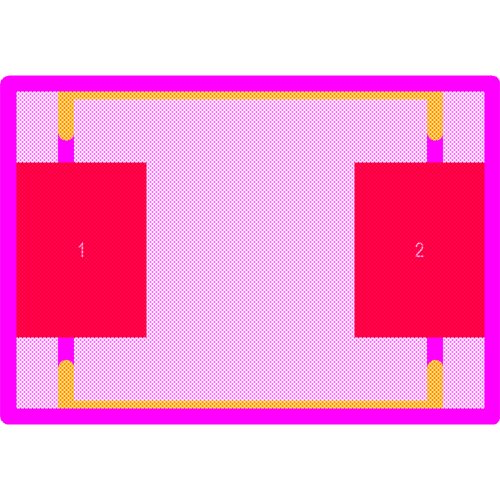

Footprint

SMP100LC-35 Footprint - STMicroelectronics

SMP100LC-35 Footprint - STMicroelectronics

SMP100LC-35 Footprint - STMicroelectronics

SMP100LC-35 Footprint - STMicroelectronics

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
TE Connectivity	TVB035RSC-L	Obsolete
STMicroelectronics	SMP80MC-230	Obsolete
STMicroelectronics	SMP100MC-160	Production
STMicroelectronics	SMP100MC-400	Production
STMicroelectronics	SMP80MC-270	Production
STMicroelectronics	SMP80MC-120	Obsolete
STMicroelectronics	SMP100MC-120	Obsolete
STMicroelectronics	SMP80MC-160	Obsolete
STMicroelectronics	SMP80MC-140	Obsolete
STMicroelectronics	SMP80MC-320	Obsolete

See more alternatives See less alternatives
