STMicroelectronics - STCF02PNR

STCF02PNR - STMicroelectronics

STCF02 Series 600 mA 1.8 MHz Surface Mount High Power White LED Driver QFN-20

 Datasheets

Technical Details

Case/Package QFN
China RoHS Compliant
Export Control Classification Number (ECCN) Code EAR99
Frequency 1.8MHz
Height - Seated (Max) 1mm
Harmonized Tariff Schedule (HTS) Code 8542.39.00.60
Introduction Date 2005-12-02
Lead Free Lead Free
Length 4mm
Lifecycle Status Production
Max Operating Temperature 85°C
Max Supply Voltage 4.5V
Min Operating Temperature -40°C
Min Supply Voltage 2.7V
Mount Surface Mount
Number of Characters 1
Number of Circuits 1
Number of Outputs 1
Number of Pins 20
Number of Segments 1
Number of Terminals 20
Operating Supply Voltage 3.6V
Output Current 600mA
Output Current per Channel 600mA
Output Voltage 5.1V
Packaging Tape & Reel (TR)
Quiescent Current 3µA
Radiation Hardening No
REACH SVHC Yes
RoHS Compliant
Switching Frequency 1.8MHz
Temperature Grade Industrial
Terminal Pitch 500µm
Width 4mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

Datasheets

 DigiKey
 Anglia
 Microchip USA

Lifecycle Status Indicator

   Production

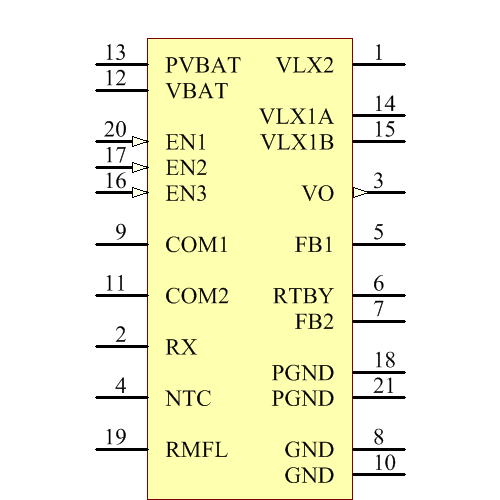

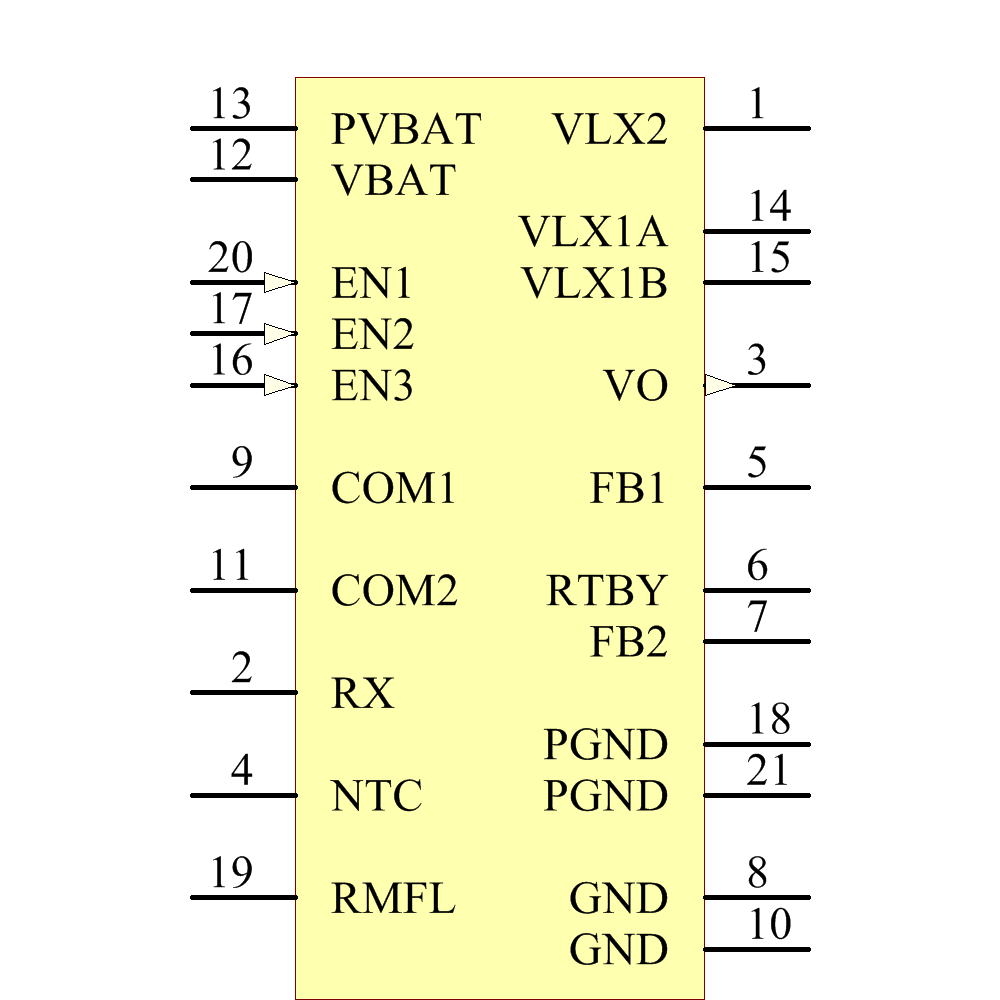

Symbol

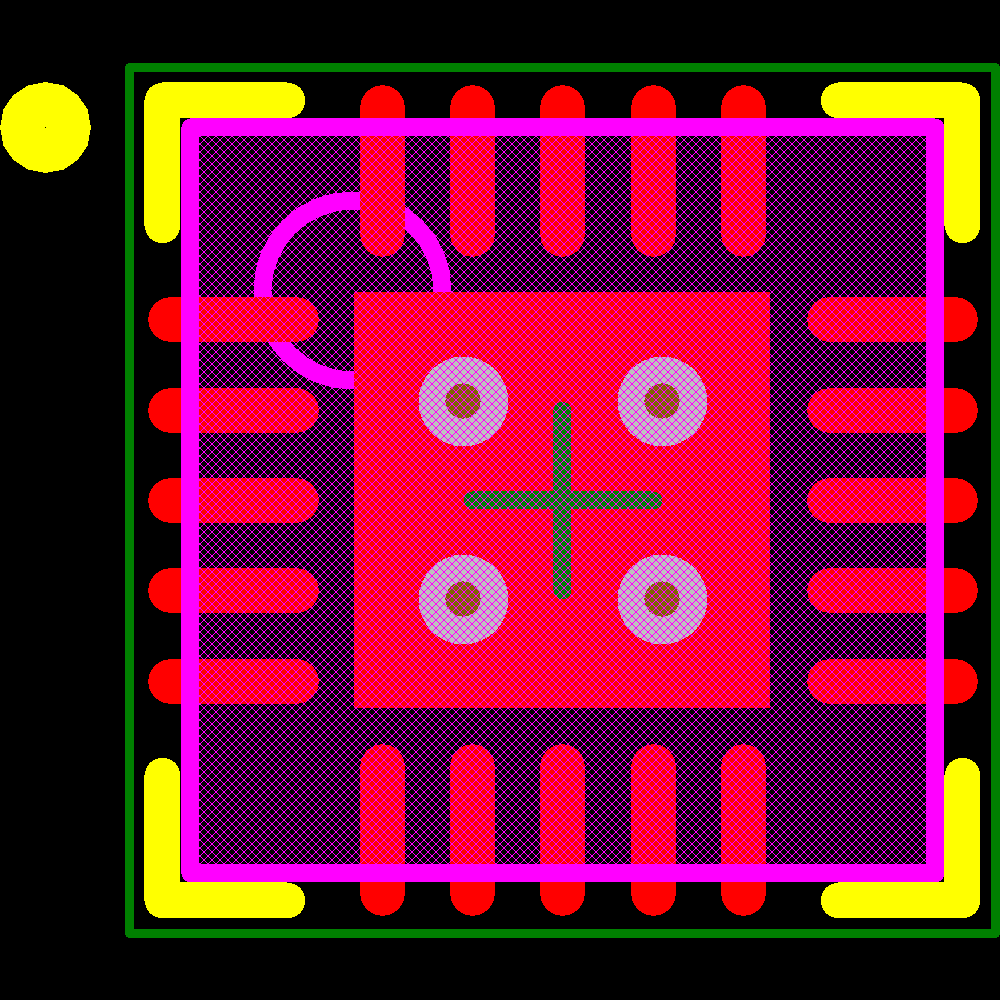

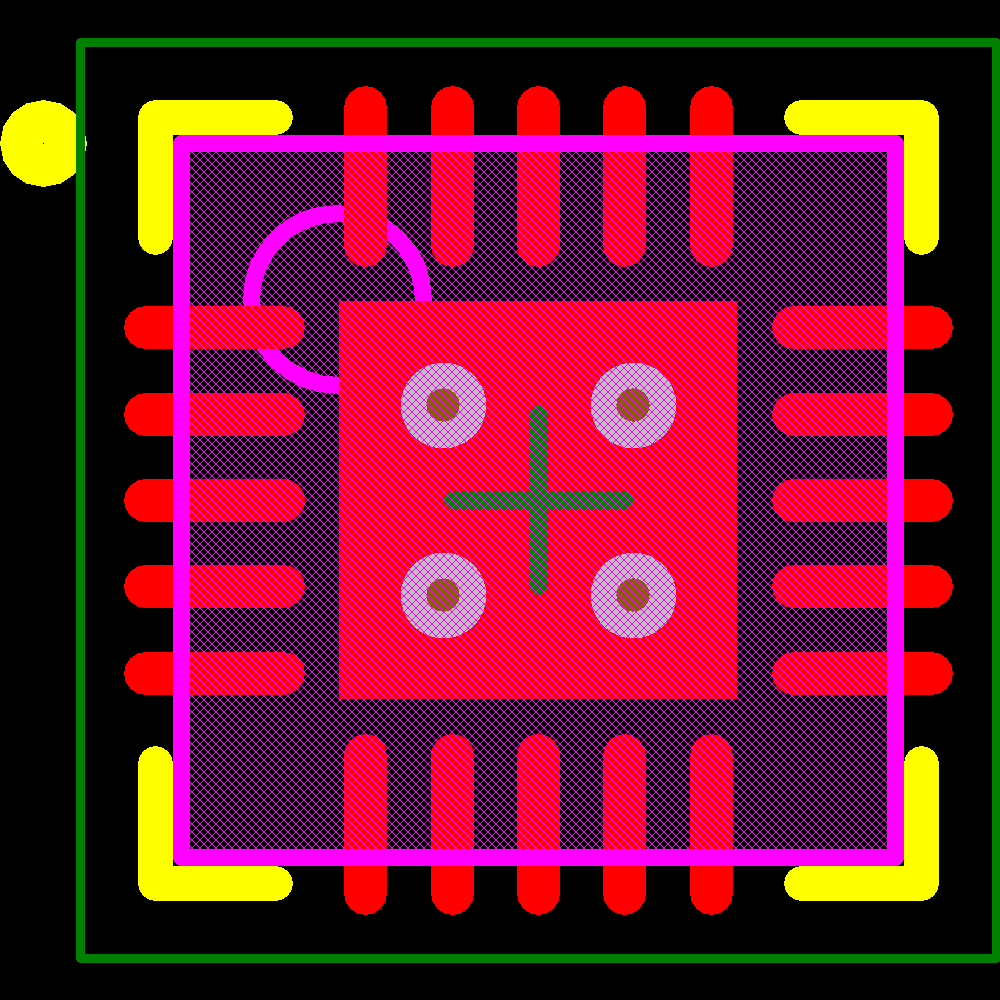

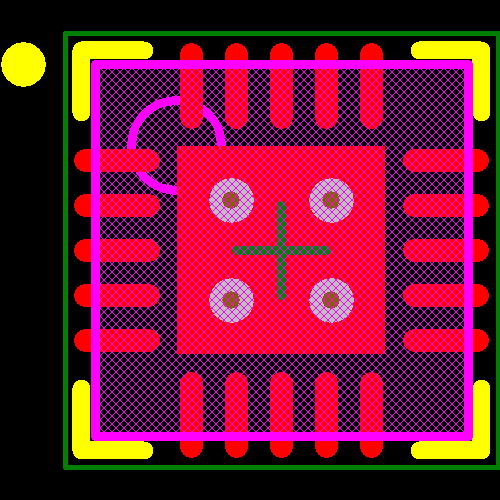

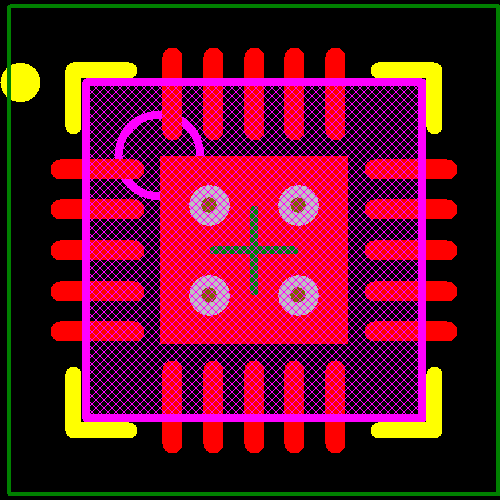

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Analog Devices
ADP8870ACPZ-R7
Production
Analog Devices
ADP8860ACPZ-R7
Production
Analog Devices
ADP8863ACPZ-R7
Production
Analog Devices
ADP8866ACPZ-R7
Production
Analog Devices
LTC3209EUF-2#PBF
Production
Analog Devices
MAX16834ATP+
Production
MaxLinear
XRP6840BILB-F
Obsolete
Texas Instruments
ONET1191VRGPR
Unknown
Texas Instruments
ONET1191VRGPRG4
Unknown
Texas Instruments
ONET1191VRGPT
Obsolete

See more alternatives See less alternatives
