STCF03PNR - STMicroelectronics
STCF03 Series 800 mA 1.8 MHz High Power White LED Driver w/I²C Interface -QFN-20
Technical Details
| Case/Package | QFN |
| China RoHS | Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 1.8MHz |
| Height - Seated (Max) | 1mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2006-09-29 |
| Lead Free | Lead Free |
| Length | 4mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 800mW |
| Max Supply Current | 1.5mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 1.5mA |
| Number of Characters | 1 |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 20 |
| Number of Segments | 2 |
| Number of Terminals | 20 |
| Operating Supply Voltage | 3.6V |
| Output Current | 800mA |
| Output Current per Channel | 800mA |
| Output Voltage | 5.3V |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 800mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 500µm |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

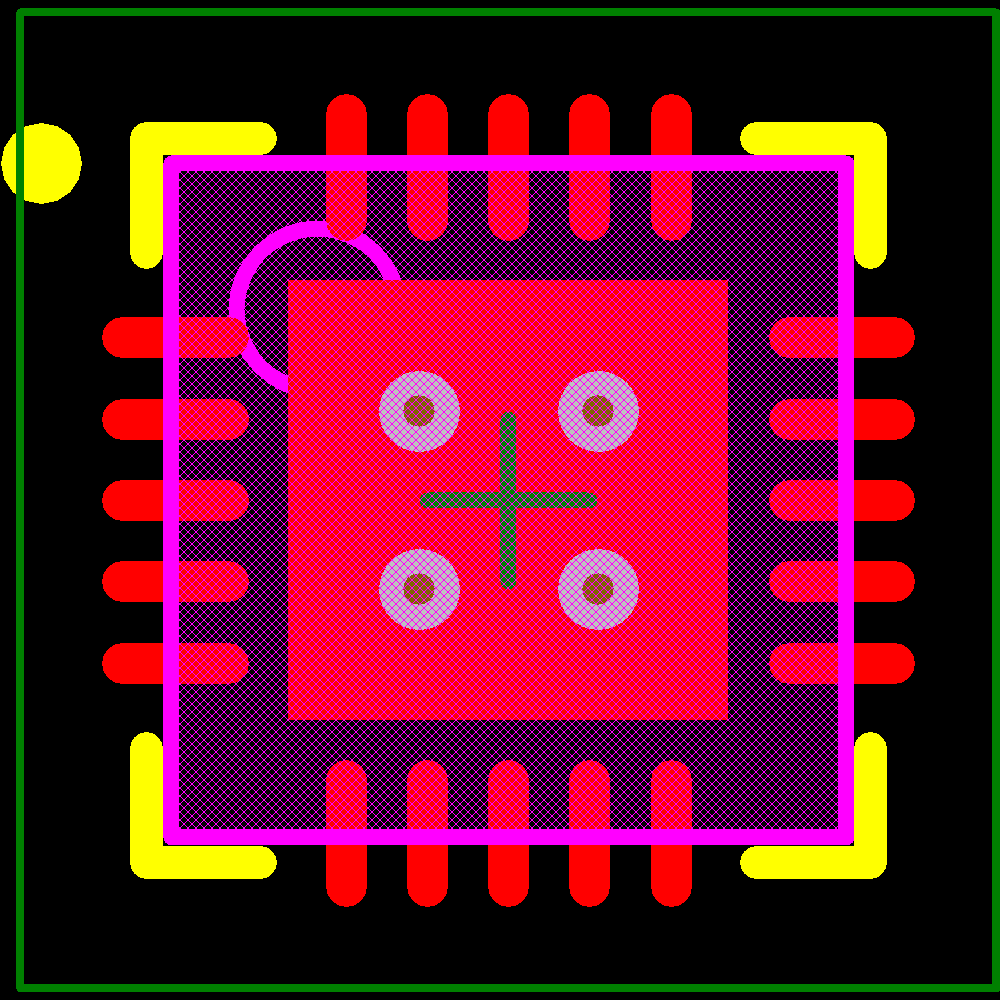

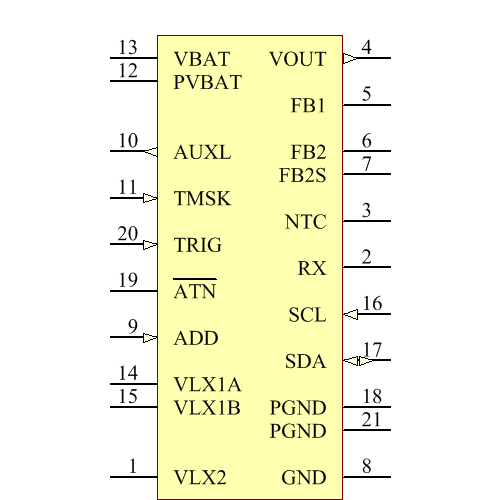

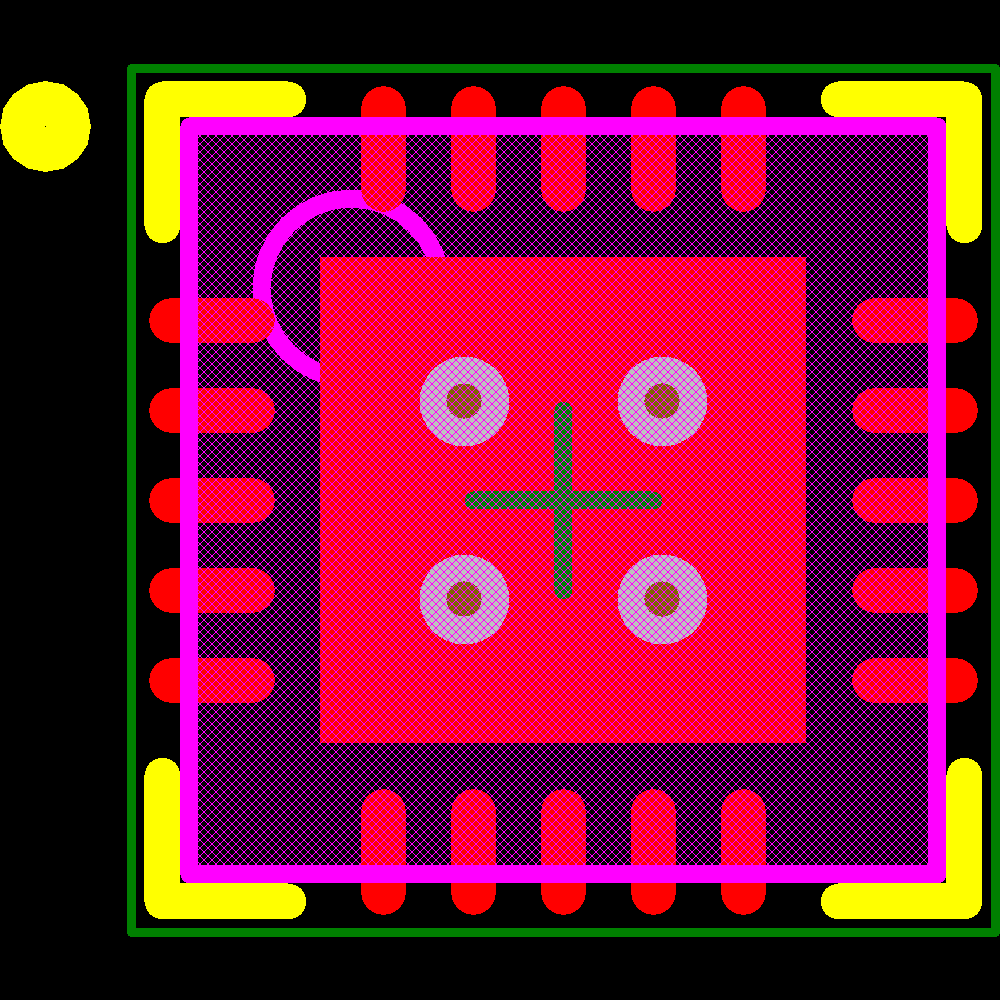

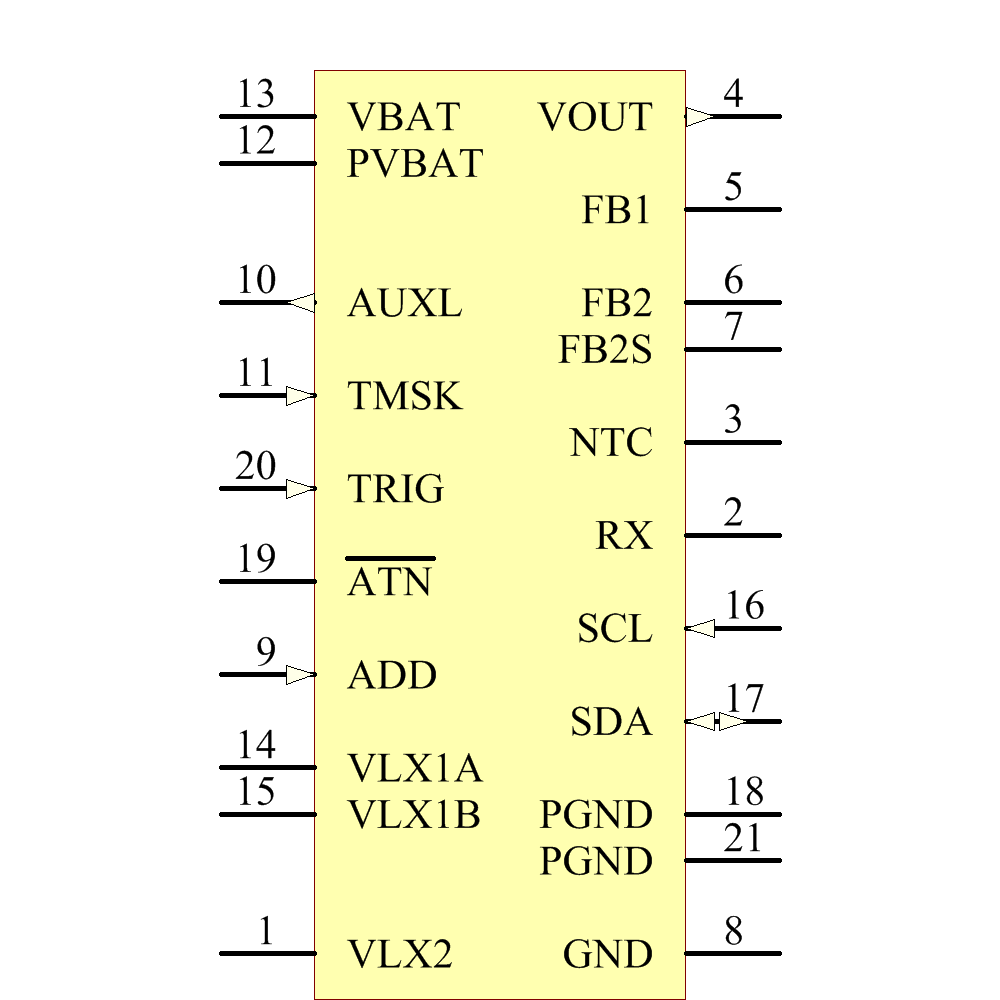

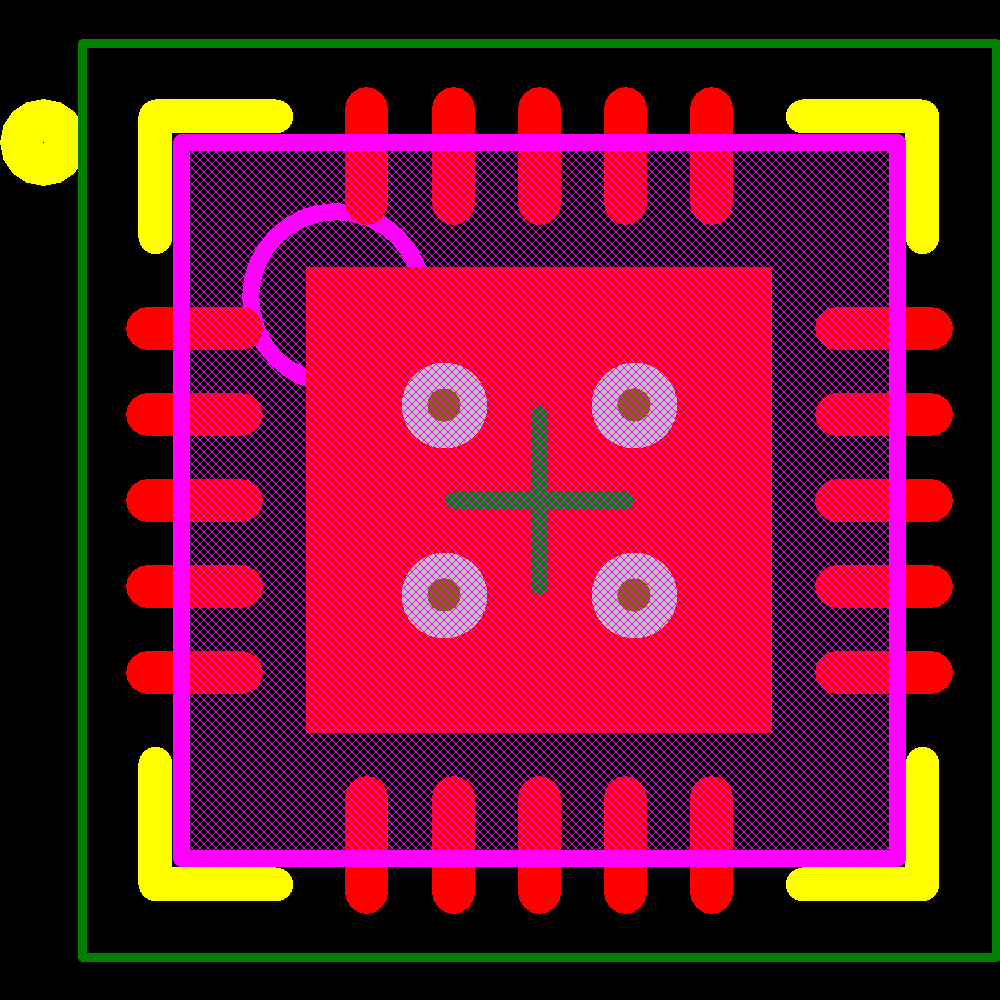

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Renesas | Obsolete |
