STCS1APHR - STMicroelectronics
STCS1A Series 1.5 A 50 KHz Surface Mount Constant Current LED Driver - SOIC-8
Technical Details
| Case/Package | SOIC |
| China RoHS | Compliant |
| Height - Seated (Max) | 1.7mm |
| High Level Output Current | 1.5A |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Lifecycle Status | Production |
| Max Input Voltage | 40V |
| Max Operating Temperature | 125°C |
| Max Output Current | 1.5A |
| Max Supply Current | 3µA |
| Max Supply Voltage | 40V |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Characters | 1 |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 10 |
| Number of Terminals | 8 |
| Operating Supply Voltage | 12V |
| Output Current | 1.5A |
| Output Current per Channel | 1.5A |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Temperature Grade | Automotive |
| Terminal Pitch | 1.27mm |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

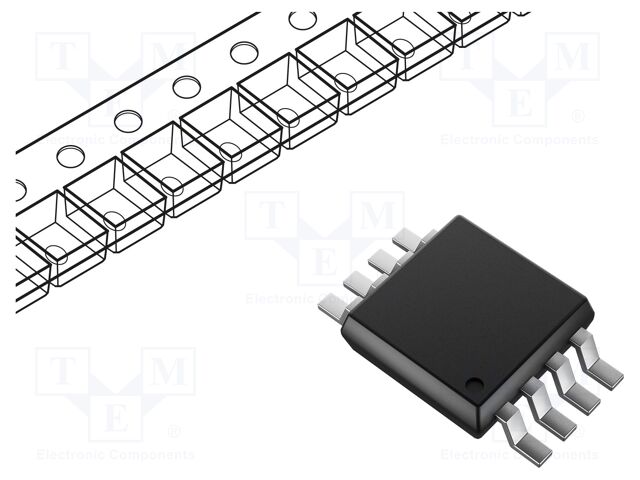

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| STMicroelectronics | Production | ||
| Allegro MicroSystems | Production | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | NRND | ||
| onsemi | Obsolete | ||
| Texas Instruments | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production |
