STF3NK80Z - STMicroelectronics

N-CHANNEL 800V - 3.8 Ohm - 2.5A TO-220FP Zener-Protected SuperMESH™ Power MOSFET

Technical Details

Case/Package TO-220-3
China RoHS Non-Compliant
Continuous Drain Current (ID) 2.5A
Country of Origin Mainland China
Current Rating 2.5A
Drain to Source Breakdown Voltage 800V
Drain to Source Resistance 4.5Ω
Drain to Source Voltage (Vdss) 800V
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Fall Time 40ns
Gate to Source Voltage (Vgs) 30V
Height 9.3mm
Input Capacitance 485pF
Introduction Date 1980-01-04
Lead Free Lead Free
Length 10.4mm
Lifecycle Status Production
Max Operating Temperature 150°C
Max Power Dissipation 25W
Min Breakdown Voltage 800V
Min Operating Temperature -55°C
Mount Through Hole
Number of Elements 1
Number of Pins 3
Number of Terminals 3
Power Dissipation 25W
Radiation Hardening No
Rds On Max 4.5Ω
REACH SVHC No
Resistance 4.5Ω
Rise Time 27ns
RoHS Compliant
Schedule B 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
Threshold Voltage 3.75V
Turn-Off Delay Time 36ns
Turn-On Delay Time 17ns
Voltage Rating (DC) 800V
Width 4.6mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

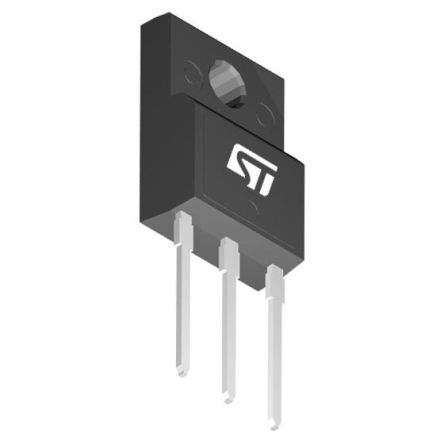

STMicroelectronics STF3NK80Z | RS
