Integrated Circuits (ICs) > Power Management ICs > LED Drivers

STLA02PUR - STMicroelectronics

Tape & Reel (TR) STLA02 Step-Up (Boost) PWM led driver 0.5mm 2mA 18V 530mW

Case/Package	DFN EP
China RoHS	Compliant
Contact Plating	Gold
Country of Origin	Malaysia
Export Control Classification Number (ECCN) Code	EAR99
Frequency	2.3MHz
Harmonized Tariff Schedule (HTS) Code	8542.39.00.60
Introduction Date	2011-02-22
Lead Free	Lead Free
Lifecycle Status	Production
Max Input Voltage	18V
Max Operating Temperature	85°C
Max Power Dissipation	530mW
Max Supply Current	2mA
Max Supply Voltage	18V
Min Input Voltage	2.5V
Min Operating Temperature	-40°C
Min Supply Voltage	2.5V
Mount	Surface Mount
Nominal Supply Current	4mA
Number of Channels	1
Number of Outputs	1
Number of Pins	6
Number of Segments	6
Number of Terminals	6
Operating Supply Voltage	3V
Output Current	20mA
Output Voltage	27V
Packaging	Tape and Reel
Power Dissipation	530mW
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Temperature Grade	Industrial
Terminal Pitch	500µm
Topology	Boost

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

STMicroelectronics STLA02PUR | Future Electronics

Future Electronics

Production

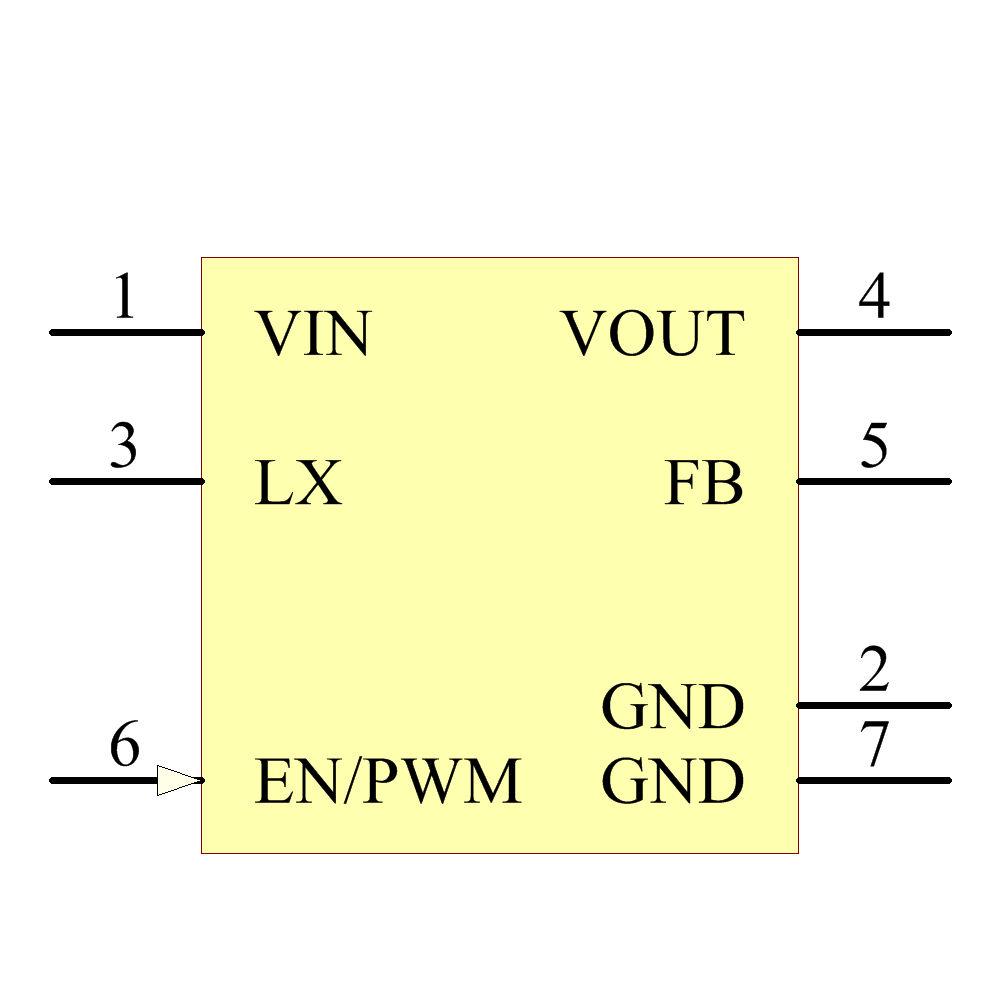

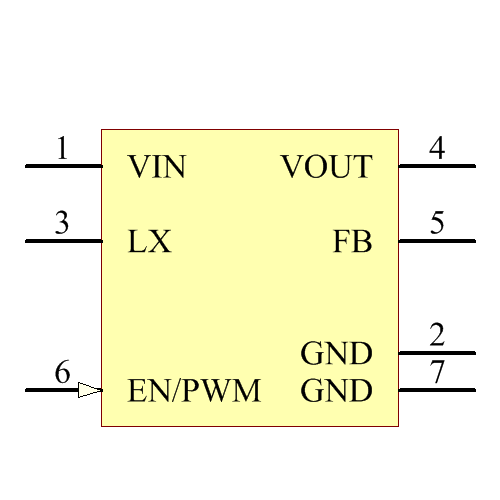

Symbol

‹ ›

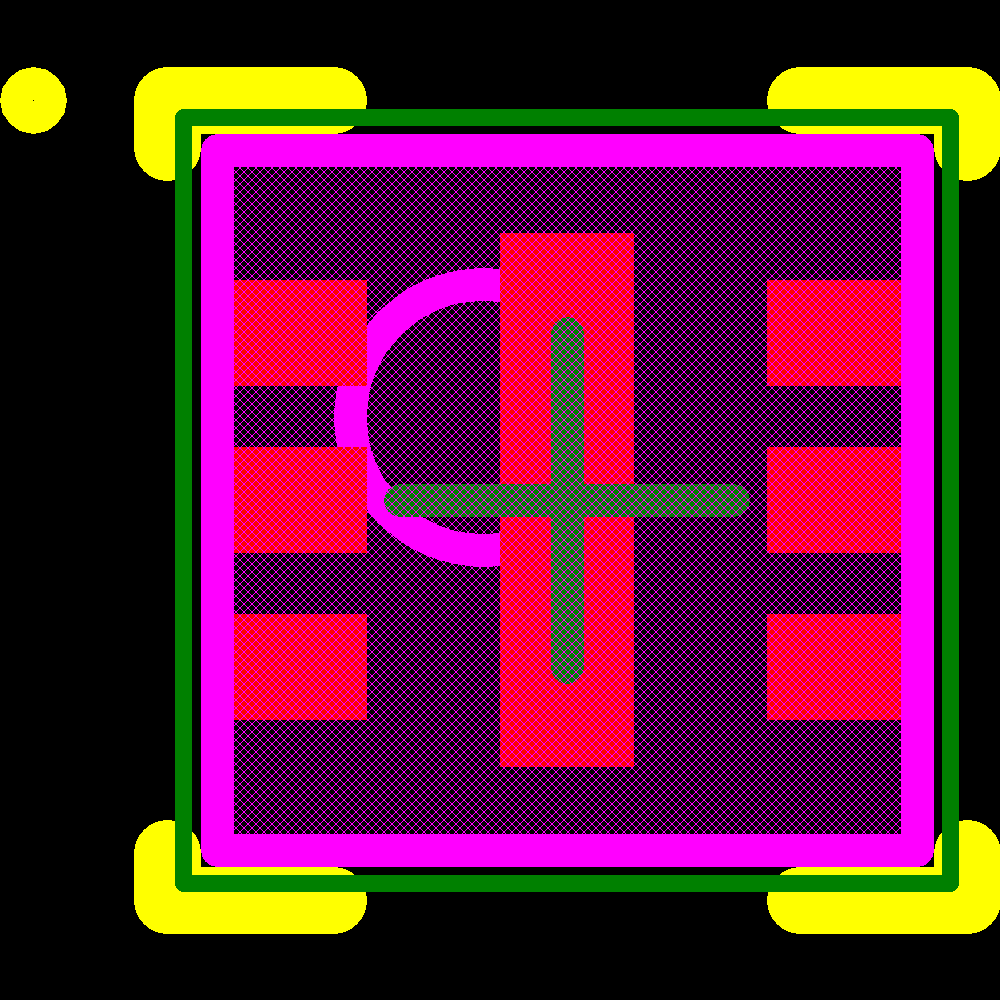

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Analog Devices	LT3590EDC#TRPBF	Production
Analog Devices / Linear Technology	LT3590EDC#PBF	Unknown
onsemi	FAN5613MPX	Obsolete
STMicroelectronics	STLA01PUR	Obsolete
Analog Devices	LT3491EDC#TRPBF	Production
Analog Devices	LT3593EDC#TRPBF	Production
Analog Devices / Linear Technology	LT3491EDC#TR	Unknown
Analog Devices / Linear Technology	LT3491EDC	Unknown
Analog Devices	LT3593EDC#PBF	Unknown
Semtech	SC4541ULTRT	Obsolete
