STP11NK50ZFP - STMicroelectronics

Trans MOSFET N-CH 500V 10A 3-Pin(3+Tab) TO-220FP Tube / MOSFET N-CH 500V 10A TO-220FP

Technical Details

Case/Package	TO-220-3
China RoHS	Non-Compliant
Contact Plating	Tin
Continuous Drain Current (ID)	10A
Country of Origin	Mainland China
Drain to Source Breakdown Voltage	500V
Drain to Source Resistance	520mΩ
Drain to Source Voltage (Vdss)	500V
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Fall Time	15ns
Gate to Source Voltage (Vgs)	30V
Height	20mm
Input Capacitance	1.39nF
Introduction Date	1980-01-04
Lead Free	Lead Free
Length	10.4mm
Lifecycle Status	Production
Max Junction Temperature (Tj)	150°C
Max Operating Temperature	150°C
Max Power Dissipation	30W
Manufacturer Package Identifier	TO-220FP-7012510
Min Breakdown Voltage	500V
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Channels	1
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Power Dissipation	30W
Radiation Hardening	No
Rds On Max	520mΩ
REACH SVHC	No
Resistance	520MΩ
Rise Time	18ns
RoHS	Compliant
Threshold Voltage	3.75V
Turn-Off Delay Time	41ns
Turn-On Delay Time	14.5ns
Width	4.6mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

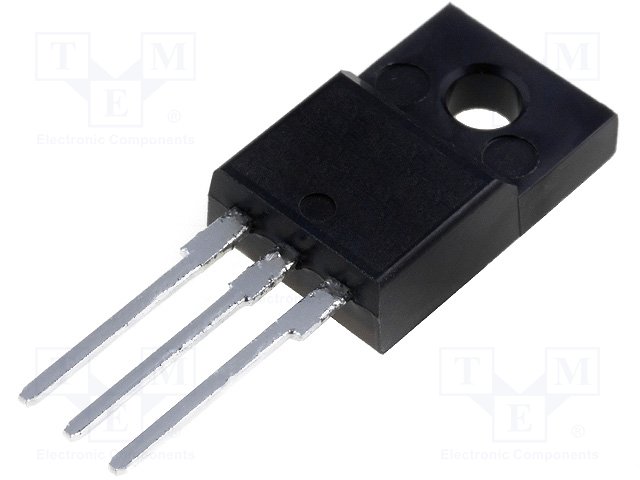

STMicroelectronics STP11NK50ZFP | TME
