Discrete Semiconductors > Transistors > MOSFETs

STP13NK60Z - STMicroelectronics

N-Channel 600 V, 0.48 Ohm, 13 A TO-220 Zener-Protected SuperMesh(TM) POWER MOSFET

Technical Details

Case/Package	TO-220
China RoHS	Non-Compliant
Continuous Drain Current (ID)	13A
Country of Origin	Mainland China
Current Rating	13A
Drain to Source Breakdown Voltage	600V
Drain to Source Resistance	550mΩ
Drain to Source Voltage (Vdss)	600V
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Fall Time	12ns
Gate to Source Voltage (Vgs)	30V
Height	19.68mm
Input Capacitance	2.03nF
Introduction Date	1980-01-04
Length	10.4mm
Lifecycle Status	Production
Max Junction Temperature (Tj)	150°C
Max Operating Temperature	150°C
Max Power Dissipation	135W
Min Breakdown Voltage	600V
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Channels	1
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Power Dissipation	150W
Radiation Hardening	No
Rds On Max	550mΩ
REACH SVHC	No
Rise Time	14ns
RoHS	Compliant
Schedule B	8541290080, 8541290080\|8541290080, 8541290080\|8541290080\|8541290080, 8541290080\|8541290080\|8541290080\|8541290080
Threshold Voltage	3.75V
Turn-Off Delay Time	61ns
Turn-On Delay Time	22ns
Voltage Rating (DC)	600V
Width	4.6mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

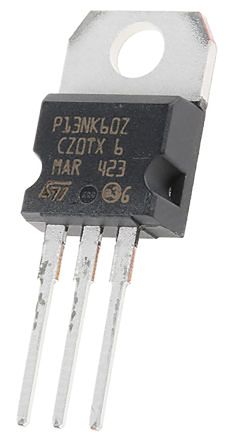

Images

STMicroelectronics STP13NK60Z | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Symbol

STP13NK60Z Symbol - STMicroelectronics

STP13NK60Z Symbol - STMicroelectronics

STP13NK60Z Symbol - STMicroelectronics

STP13NK60Z Symbol - STMicroelectronics

‹ ›

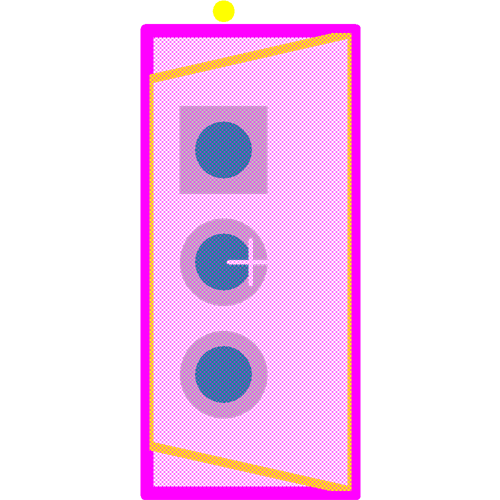

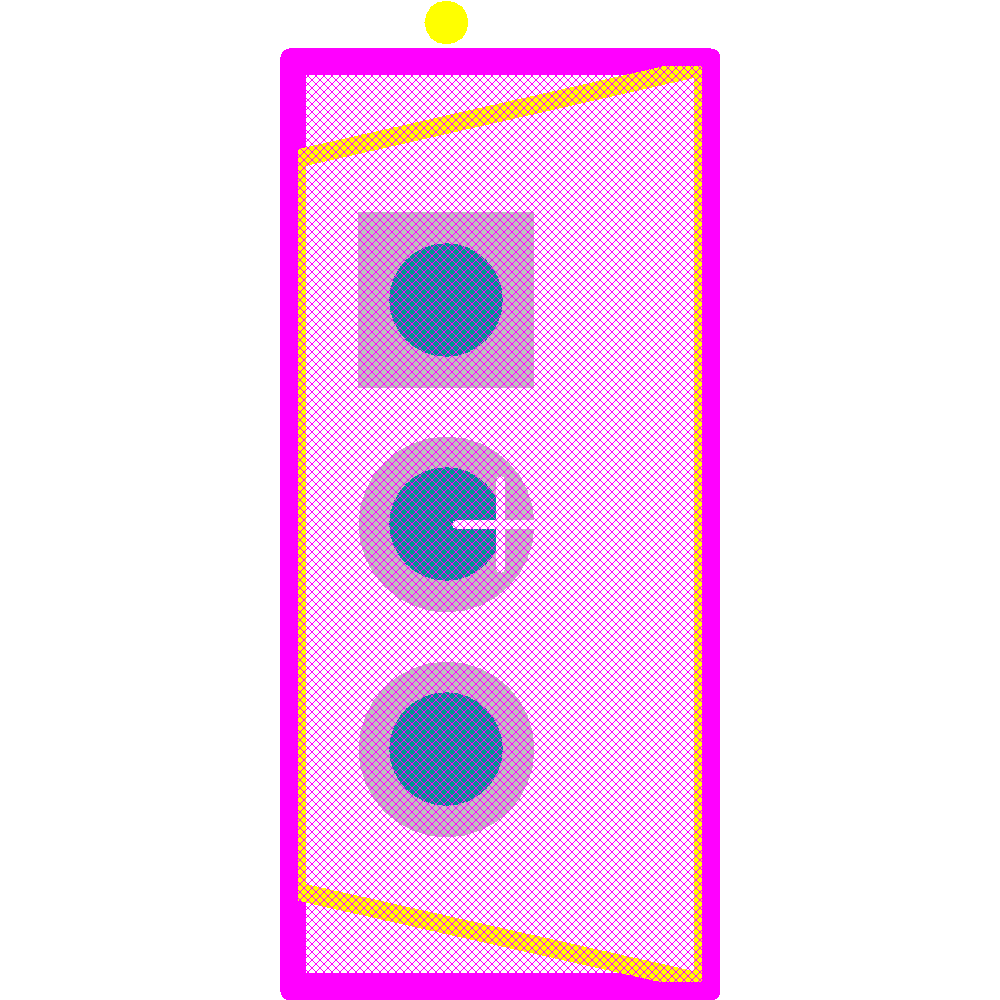

Footprint

STP13NK60Z Footprint - STMicroelectronics

STP13NK60Z Footprint - STMicroelectronics

STP13NK60Z Footprint - STMicroelectronics

STP13NK60Z Footprint - STMicroelectronics

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	FQPF3N40	Obsolete
STMicroelectronics	STD6N10	Obsolete
STMicroelectronics	STW12NK90Z	Production
STMicroelectronics	STP22NE03L	Obsolete
Fairchild Semiconductor	FQB45N15V2	Obsolete
STMicroelectronics	STP30NF10	Production
STMicroelectronics	STB150NF55T4	Production
STMicroelectronics	STD17N05T4	Unknown
STMicroelectronics	STD70NS04ZL	Production
STMicroelectronics	STD86N3LH5	Production

See more alternatives See less alternatives
