STP16NF06 - STMicroelectronics

Transistor MOSFET N Channel 60 Volt 16 Amp 3 Pin 3+ Tab TO-220 Tube

Technical Details

Case/Package	TO-220
China RoHS	Non-Compliant
Continuous Drain Current (ID)	16A
Country of Origin	Mainland China
Current Rating	16A
Drain to Source Breakdown Voltage	60V
Drain to Source Resistance	100mΩ
Drain to Source Voltage (Vdss)	60V
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Fall Time	6ns
Gate to Source Voltage (Vgs)	20V
Height	9.15mm
Input Capacitance	315pF
Introduction Date	1980-01-04
Lead Free	Lead Free
Length	10.4mm
Lifecycle Status	Production
Max Operating Temperature	175°C
Max Power Dissipation	45W
Min Breakdown Voltage	60V
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Power Dissipation	45W
Radiation Hardening	No
Rds On Max	100mΩ
REACH SVHC	No
Resistance	100mΩ
Rise Time	18ns
RoHS	Compliant
Schedule B	8541290080, 8541290080\|8541290080, 8541290080\|8541290080\|8541290080, 8541290080\|8541290080\|8541290080\|8541290080
Turn-Off Delay Time	17ns
Turn-On Delay Time	7ns
Voltage Rating (DC)	60V
Weight	4.535924g
Width	4.6mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

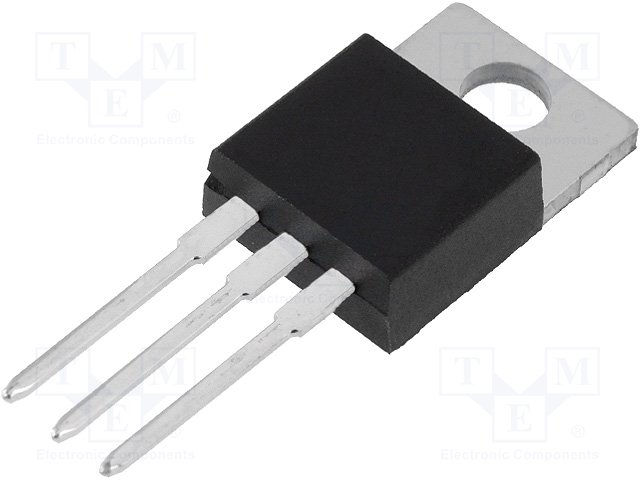

STMicroelectronics STP16NF06 | TME
