STPS30L45CT - STMicroelectronics
Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, TO-220AB
Technical Details
| Average Rectified Current | 30A |
| Case/Package | TO-220AB |
| China RoHS | Non-Compliant |
| Current Rating | 30A |
| Element Configuration | Common Cathode |
| Forward Current | 30A |
| Forward Voltage | 500mV |
| Height | 9.15mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Lifecycle Status | Production |
| Max Forward Surge Current (Ifsm) | 220A |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Output Current | 15A |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Leakage Current | 400µA |
| Max Reverse Voltage (DC) | 45V |
| Max Surge Current | 220A |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Peak Non-Repetitive Surge Current | 220A |
| Peak Reverse Current | 400µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Standoff Voltage | 45V |
| RMS Current (Irms) | 30A |
| RoHS | Compliant |
| Voltage Rating (DC) | 45V |
| Width | 4.6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

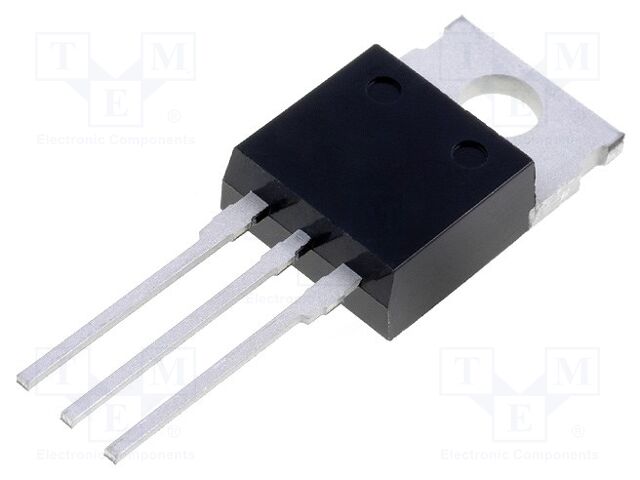

Images
