THBT20011D - STMicroelectronics
THBT20011 Series 200 Vdrm 30 A Surface Mount Protection Thyristor - SOIC-8
Technical Details
| Breakdown Voltage | 200V |
| Capacitance | 80pF |
| Case/Package | SOP |
| China RoHS | Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.25mm |
| Height - Seated (Max) | 1.75mm |
| Hold Current | 150mA |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.01 |
| Introduction Date | 1980-01-04 |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 290V |
| Max Operating Temperature | 150°C |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Surge Current | 30A |
| Min Breakdown Voltage | 50V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Circuits | 1 |
| Number of Elements | 3 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Operating Supply Voltage | 180V |
| Packaging | Bulk |
| Peak Pulse Current | 30A |
| Polarity | Bidirectional |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 180V |
| RoHS | Compliant |
| Terminal Pitch | 1.27mm |
| Termination | SMD/SMT |
| Voltage Rating (DC) | 200V |
| Weight | 80.002354mg |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

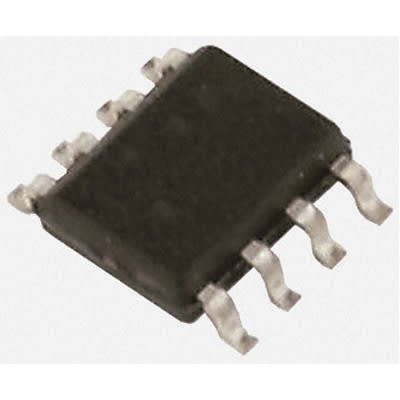

Images
