TN1215-600B-TR - STMicroelectronics
Silicon Controlled Rectifier, 12A I(T)RMS, 8000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element
Technical Details
| Case/Package | DPAK |
| China RoHS | Non-Compliant |
| Forward Voltage | 1.6V |
| Hold Current | 5mA |
| Lead Free | Lead Free |
| Leakage Current | 2mA |
| Lifecycle Status | Production |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max RMS Current | 12A |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 110.14kA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RMS Current (Irms) | 12A |
| RoHS | Compliant |
| Schedule B | 8541300080, 8541300080|8541300080|8541300080|8541300080|8541300080 |
| Voltage Rating (DC) | 600V |
| Weight | 1.799996g |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

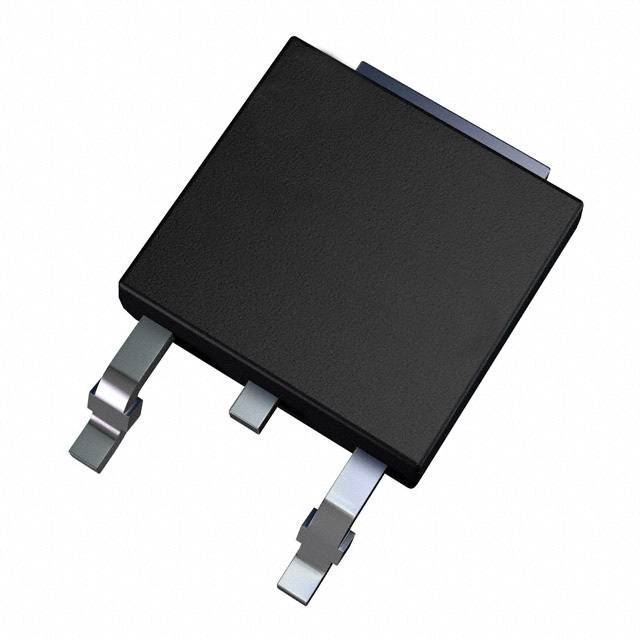

Images
Future Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| STMicroelectronics | Production | ||
| WeEn Semiconductors | Production | ||
| Littelfuse | Production | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Obsolete | ||
| Littelfuse | Production | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete |
