TN2540-800G-TR - STMicroelectronics

TN2540 Series 800 V 25 A Surface Mount Standard SCRs - D2PAK

Technical Details

Case/Package	D2PAK
China RoHS	Non-Compliant
Current Rating	16A
Forward Voltage	1.6V
Height	4.6mm
Hold Current	50mA
Lead Free	Lead Free
Leakage Current	4mA
Length	10.28mm
Lifecycle Status	Production
Max Junction Temperature (Tj)	125°C
Max Operating Temperature	125°C
Max Repetitive Reverse Voltage (Vrrm)	800V
Max RMS Current	25A
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Elements	1
Number of Pins	3
Number of Terminals	2
Packaging	Tape and Reel
Peak Non-Repetitive Surge Current	300A
Radiation Hardening	No
REACH SVHC	No
RMS Current (Irms)	25A
RoHS	Compliant
Schedule B	8541300080, 8541300080\|8541300080\|8541300080\|8541300080\|8541300080
Weight	2.000002g
Width	9.35mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

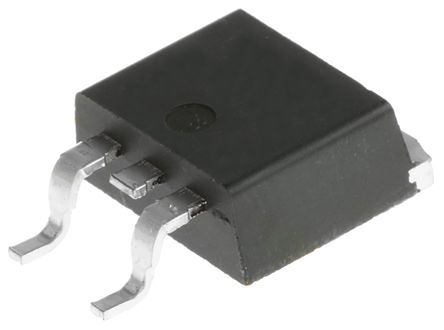

STMicroelectronics TN2540-800G-TR | RS
