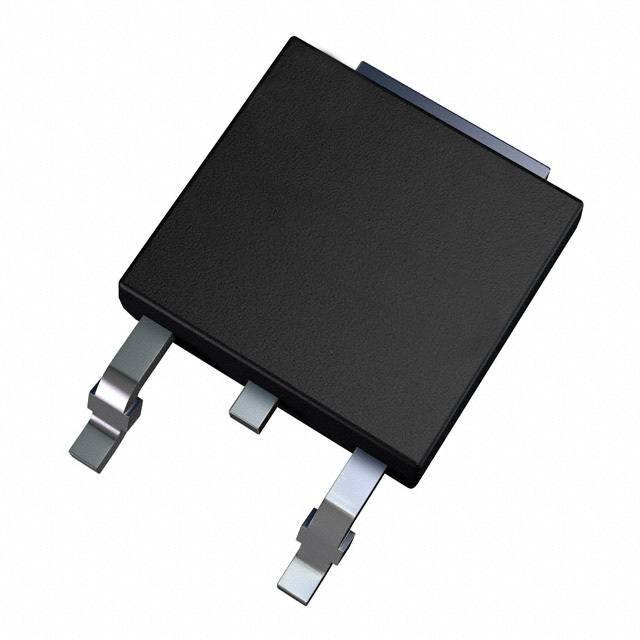

TN815-800B - STMicroelectronics
Silicon Controlled Rectifier, 8A I(T)RMS, 8A I(T), 800V V(DRM), 800V V(RRM), 1 Element
Technical Details
| Case/Package | TO-252 |
| China RoHS | Non-Compliant |
| Current Rating | 5A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Hold Current | 40mA |
| Harmonized Tariff Schedule (HTS) Code | 8541.30.00.80 |
| Introduction Date | 1980-01-04 |
| Lead Free | Lead Free |
| Leakage Current | 10µA |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 125°C |
| Max Repetitive Reverse Voltage (Vrrm) | 800V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| REACH SVHC | No |
| RMS Current (Irms) | 8A |
| RoHS | Compliant |
| Voltage Rating (DC) | 800V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| STMicroelectronics | Production | ||
| Littelfuse | Production | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Production | ||
| onsemi | Obsolete | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| NXP Semiconductors | Unknown | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Obsolete |
