Circuit Protection > TVS Diodes

TPN3021RL - STMicroelectronics

TVS Thyristor, Bidirectional, 8 Pins, SOIC, Overvoltage Protector, 38 V, 3 Circuits

Technical Details

Breakdown Voltage	38V
Capacitance	16pF
Case/Package	SOIC
China RoHS	Compliant
Contact Plating	Gold
Country of Origin	Mainland China
Direction	Bidirectional
Export Control Classification Number (ECCN) Code	EAR99
ESD Protection	No
Height	1.65mm
Hold Current	30mA
Harmonized Tariff Schedule (HTS) Code	8541.30.00.80
Introduction Date	1980-01-04
Lead Free	Lead Free
Leakage Current	4µA
Length	5mm
Lifecycle Status	Obsolete
Max Breakdown Voltage	38V
Max Operating Temperature	150°C
Max Repetitive Reverse Voltage (Vrrm)	28V
Max Reverse Leakage Current	4µA
Max Surge Current	4µA
Min Operating Temperature	-55°C
Mount	Surface Mount
Number of Channels	2
Number of Circuits	3
Number of Elements	3
Number of Pins	8
Number of Terminals	8
Peak Pulse Current	100A
Polarity	Bidirectional
Radiation Hardening	No
REACH SVHC	Yes
Reverse Standoff Voltage	28V
RoHS	Compliant
Schedule B	8541300080, 8541300080\|8541300080, 8541300080\|8541300080\|8541300080, 8541300080\|8541300080\|8541300080\|8541300080
Termination	SMD/SMT
Thickness	1.75mm
Voltage Rating (DC)	28V
Width	4mm
Working Voltage	28V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

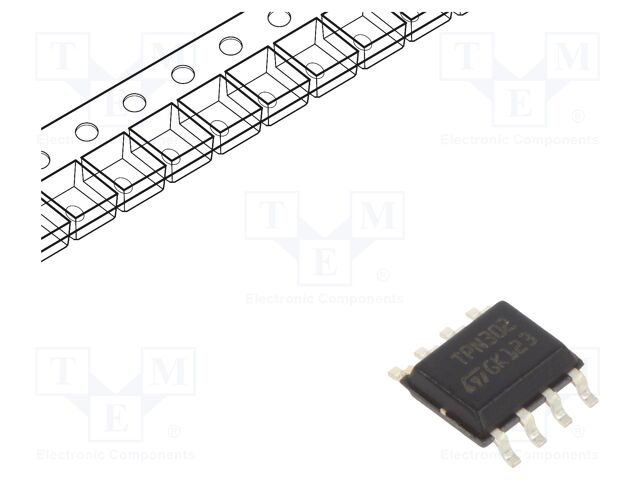

STMicroelectronics TPN3021RL | TME

TME

Datasheets

Lifecycle Status Indicator

Obsolete

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
STMicroelectronics	TPN3021	Obsolete
STMicroelectronics	THBT15011D	Obsolete
STMicroelectronics	THBT15011DRL	Obsolete
STMicroelectronics	THBT27011DRL	Obsolete
Texas Instruments	TCM1030D	Unknown
STMicroelectronics	THBT27011D	Obsolete
STMicroelectronics	THBT20011DRL	Obsolete
STMicroelectronics	THBT20011D	Obsolete
Texas Instruments	TCM1050D	Production
Bourns	TISP7260F3D	Production

See more alternatives See less alternatives
