USBLC6-2SC6 - STMicroelectronics
5A 17V 6V Unidirectional 5.25V SOT-23-6 ESD and Surge Protection (TVS/ESD) ROHS
Technical Details
| Breakdown Voltage | 6V |
| Capacitance | 2.5pF |
| Case/Package | SOT-23 |
| China RoHS | Compliant |
| Clamping Voltage | 17V |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Data Rate | 480Mbps |
| Depth | 1.75mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Dual |
| ESD Protection | Yes |
| Forward Voltage | 1.1V |
| Height | 1.45mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2005-03-15 |
| Lead Free | Lead Free |
| Leakage Current | 150nA |
| Length | 3.05mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 6V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Repetitive Reverse Voltage (Vrrm) | 5.25V |
| Max Reverse Leakage Current | 150nA |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 2 |
| Number of Channels | 2 |
| Number of Elements | 1 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Operating Supply Voltage | 1.1V |
| Peak Pulse Current | 5A |
| Peak Reverse Current | 150nA |
| Polarity | Unidirectional |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 6V |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|85 |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Width | 1.75mm |
| Working Voltage | 5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

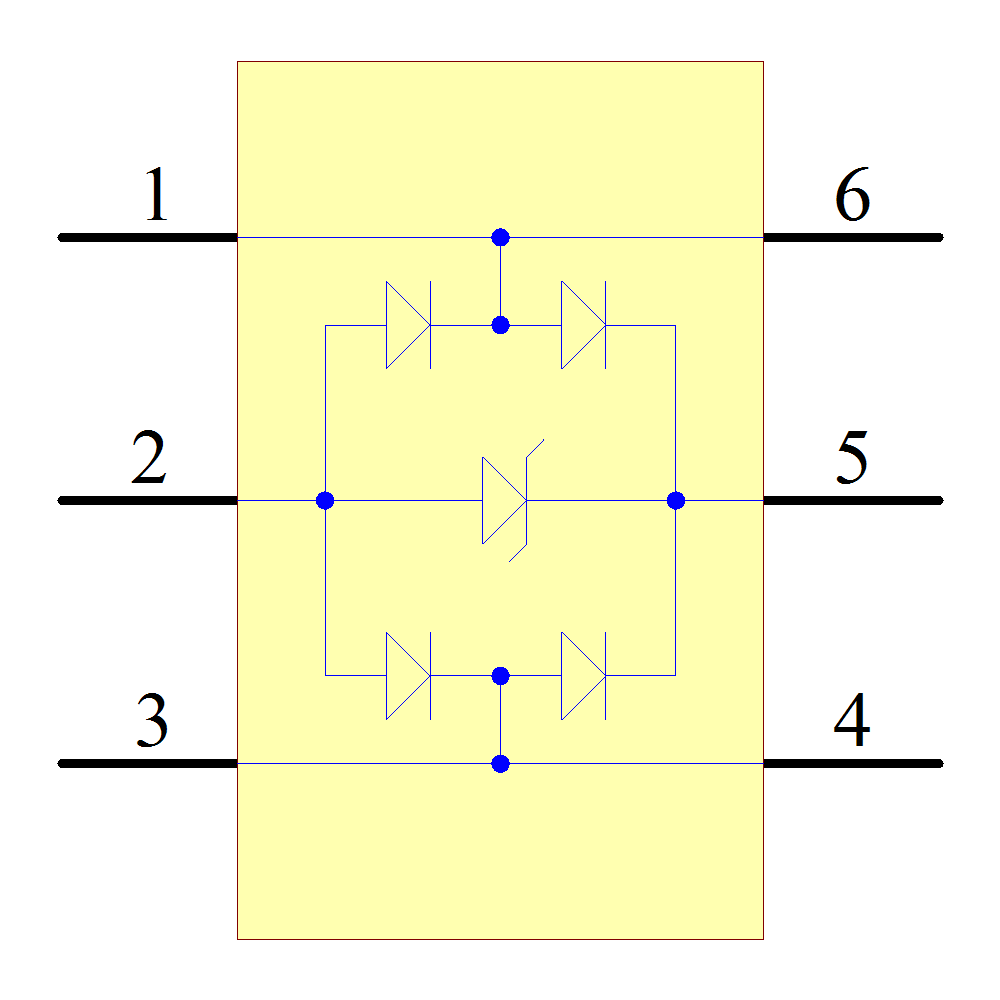

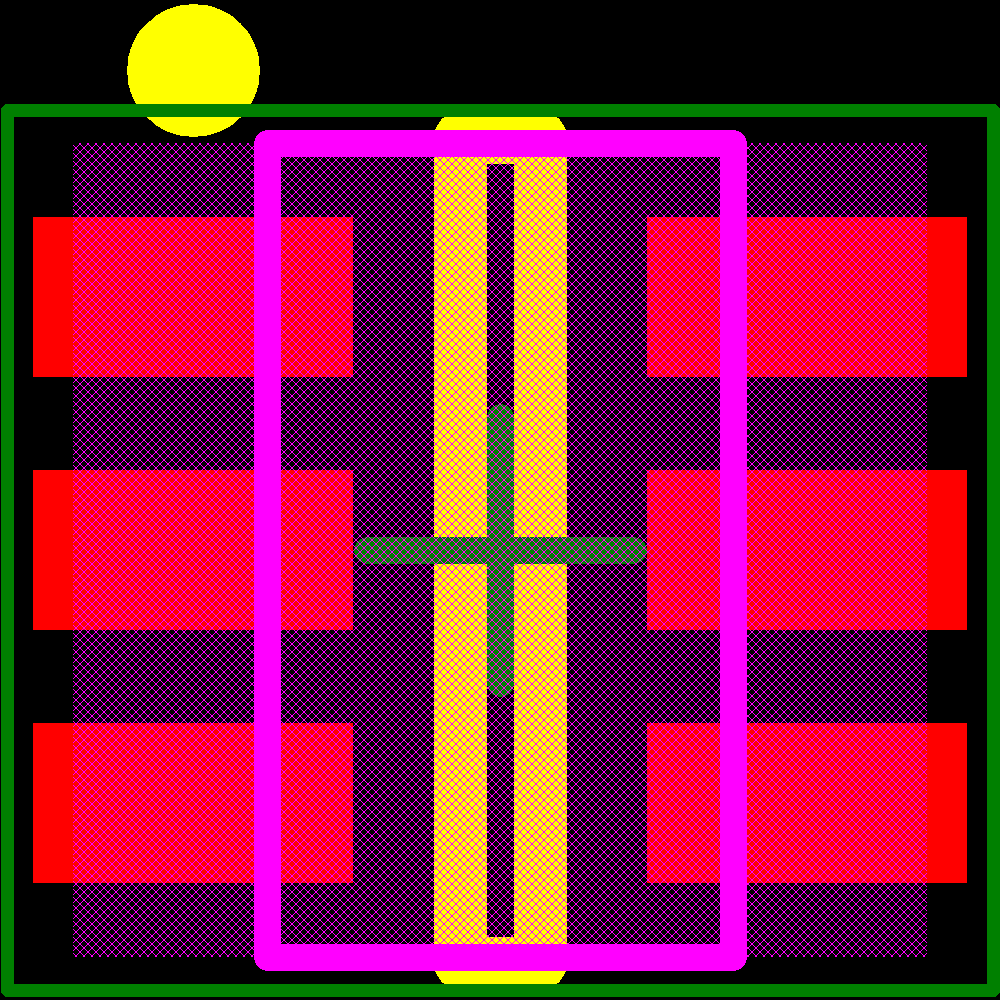

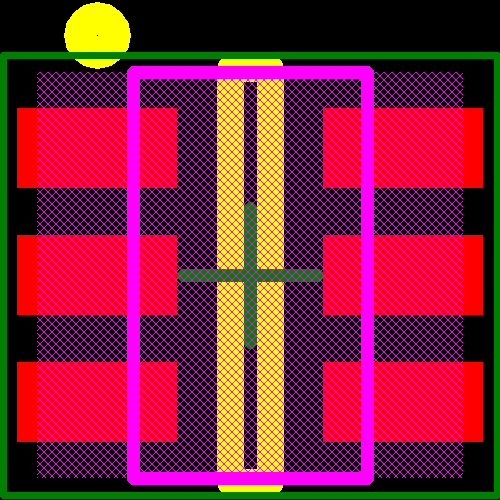

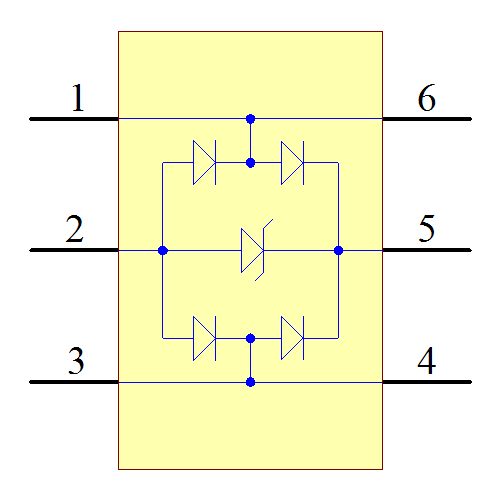

Images
Farnell
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| STMicroelectronics | Production | ||
| Littelfuse | Production | ||
| Littelfuse | Obsolete | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Bourns | Production | ||
| Bourns | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Littelfuse | Production |
