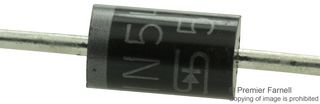

1N5408 - Taiwan Semiconductor
Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), DO-27
Technical Details
| Capacitance | 30pF |
| Current Rating | 3A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Forward Current | 3A |
| Forward Voltage | 950mV |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.80 |
| Introduction Date | 1998-01-20 |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Max Forward Surge Current (Ifsm) | 200A |
| Max Operating Temperature | 125°C |
| Max Output Current | 3A |
| Max Surge Current | 200A |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Output Current | 3A |
| Packaging | Cut Tape |
| Peak Non-Repetitive Surge Current | 200A |
| Peak Reverse Current | 10µA |
| Polarity | Standard |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 1kV |
| Reverse Voltage | 1kV |
| RoHS | Compliant |
| Voltage Rating (DC) | 1kV |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com |
US: 7
|
$ | 0.417 | 0.417 | 0.342 | 0.303 | 0.1322 | 0.0404 | ||
| Farnell |
GB: 0
|
$ | 0.2259 | 0.2137 | 0.1674 | 0.0797 | 0.0626 | |||
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Component Stockers USA |
US: 25198
|
$ | 0.33 | 0.23 | 0.23 | 0.20 | 0.14 | 0.06 | ||
| JRH Electronics |
US: 7
|
$ | 0.834 | 0.834 | 0.684 | 0.606 | 0.2644 | 0.0808 | ||
