1N5408 R0 - Taiwan Semiconductor
Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD
Technical Details
| China RoHS | Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Forward Current | 3A |
| Forward Voltage | 1V |
| Height | 5.6mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.80 |
| Introduction Date | 2014-06-23 |
| Length | 9.5mm |
| Lifecycle Status | Obsolete |
| Max Forward Surge Current (Ifsm) | 200A |
| Max Operating Temperature | 150°C |
| Max Output Current | 3A |
| Max Repetitive Reverse Voltage (Vrrm) | 1kV |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Peak Non-Repetitive Surge Current | 200A |
| Peak Reverse Current | 5µA |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 1kV |
| RoHS | Compliant |
| Width | 5.6mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

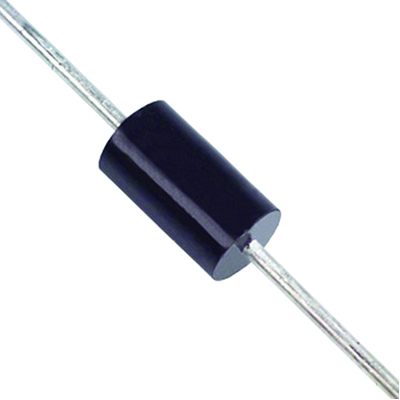

Images
