P6KE13A - Taiwan Semiconductor
DO-204AC DO-15Axial 2 Through Hole 1 Zener Tvs Diode 12.4V 33A 3.6mm 600W
Technical Details
| Breakdown Voltage | 13.1V |
| Case/Package | DO-15 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 18.2V |
| Diameter | 3.6mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Forward Voltage | 1V |
| Height | 3.6mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Lead Free | Lead Free |
| Length | 7.6mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 13.7V |
| Max Forward Surge Current (Ifsm) | 2.5A |
| Max Junction Temperature (Tj) | 175°C |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 5W |
| Max Repetitive Reverse Voltage (Vrrm) | 250V |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 100A |
| Min Breakdown Voltage | 12.4V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 11.1V |
| Peak Pulse Current | 34A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Dissipation | 200mW |
| Power Rating | 600W |
| REACH SVHC | No |
| Reverse Recovery Time | 50ns |
| Reverse Standoff Voltage | 11.1V |
| RoHS | Compliant |
| Schedule B | 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080 |
| Test Current | 1mA |
| Voltage Rating (DC) | 13V |
| Width | 3.6mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

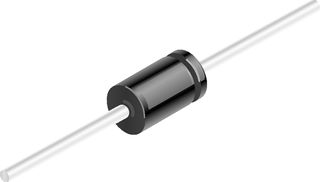

Images
Newark
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diodes Inc. | Production | ||
| Taiwan Semiconductor | Unknown | ||
| onsemi | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Vishay | Production | ||
| Vishay | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Obsolete | ||
| Vishay | Production | ||
| Diodes Inc. | Obsolete |
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Fly-Wing Technology |
HK: 2405
|
$ | 0.3872 | 0.2913 | 0.2913 | 0.2626 | 0.1527 | 0.1527 | ||
| XingHuan International |
CN: 60000
|
$ | ||||||||
