Technical Details
| Breakdown Voltage | 33.1V |
| Case/Package | DO-15 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 45.7V |
| Country of Origin | Mainland China |
| Diameter | 3.6mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 1V |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1991-08-15 |
| Lead Free | Lead Free |
| Length | 7.6mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 34.7V |
| Max Forward Surge Current (Ifsm) | 2.5A |
| Max Junction Temperature (Tj) | 175°C |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 5W |
| Max Repetitive Reverse Voltage (Vrrm) | 250V |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 100A |
| Min Breakdown Voltage | 31.4V |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 28.2V |
| Peak Pulse Current | 13.8A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Dissipation | 200mW |
| Power Rating | 600W |
| REACH SVHC | No |
| Reverse Recovery Time | 50ns |
| Reverse Standoff Voltage | 28.2V |
| RoHS | Compliant |
| Voltage Rating (DC) | 33V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

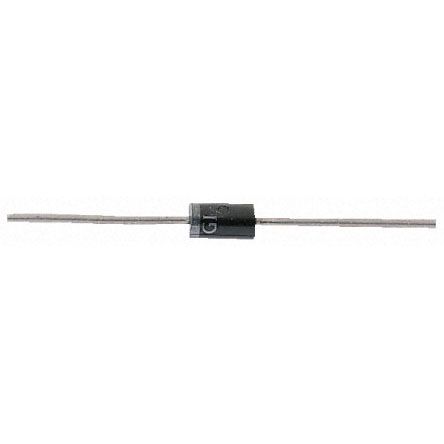

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| Semikron | Unknown | ||
| Littelfuse | Obsolete | ||
| Littelfuse | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Panjit | Production | ||
| Panjit | Production | ||
| Diodes Inc. | Obsolete | ||
| Littelfuse | Production | ||
| Central Semiconductor | Unknown |
