AH316M245001-T - TAIYO YUDEN

Antenna, Multilayer, Chip, SMD, Wireless LAN, Bluetooth, 2.4GHz, 2dB, 2 Max VSWR

Technical Details

Case/Package	1210
Case Code (Imperial)	1210
Case Code (Metric)	3225
Current Rating	140mA
Frequency	2.45GHz
Height	2.2mm
Impedance	50Ω
Introduction Date	2012-03-30
Length	3.2004mm
Lifecycle Status	Production
Max Frequency	2.5GHz
Max Length	3.35mm
Max Operating Temperature	80°C
Max Thickness	600µm
Max Width	1.75mm
Min Length	3.05mm
Min Operating Temperature	-20°C
Min Thickness	400µm
Min Width	1.45mm
Mount	Surface Mount
Number of Bands	1
Number of Pins	2
Packaging	Tape and Reel
Radiation Hardening	No
REACH SVHC	Yes
Resistance	2.1Ω
RoHS	Compliant
Shielding	Unshielded
Termination	Solder
Tolerance	10%
Width	2.4892mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

TAIYO YUDEN AH316M245001-T | Newark

Newark

Datasheets

Master Electronics

Lifecycle Status Indicator

Production

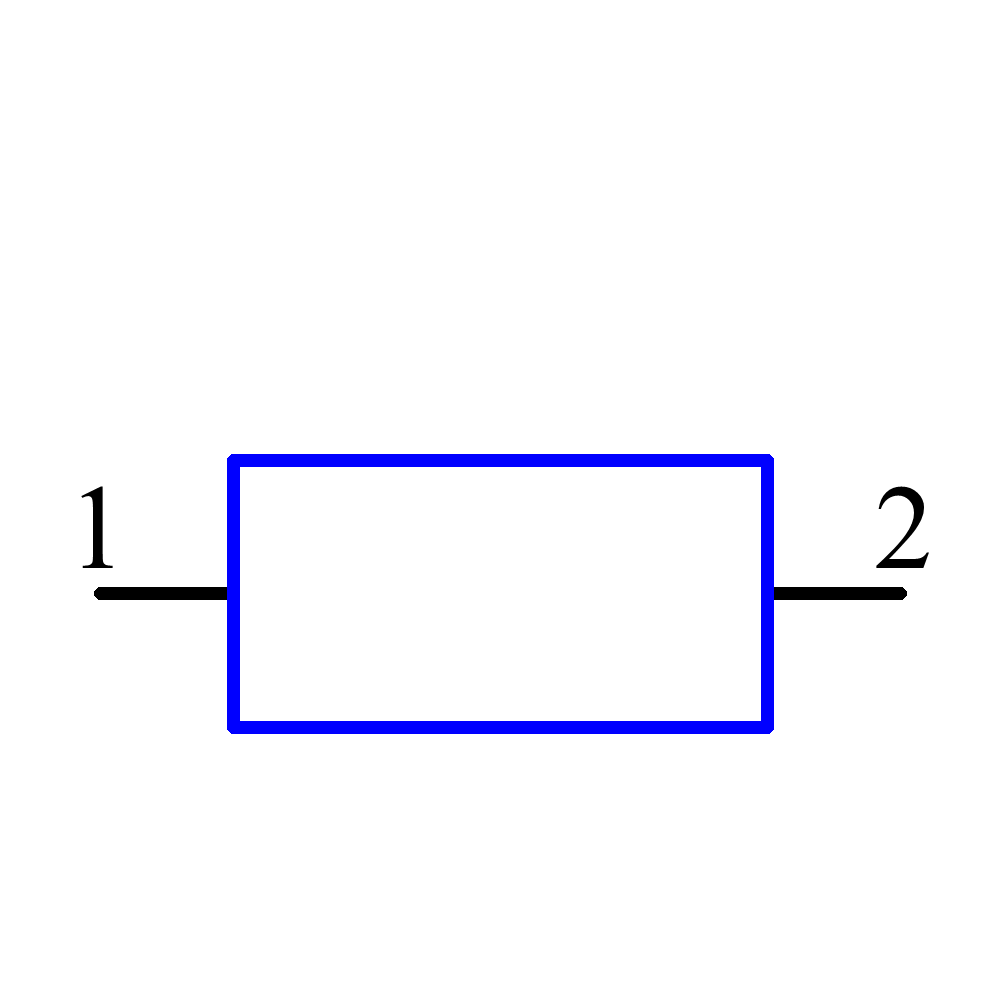

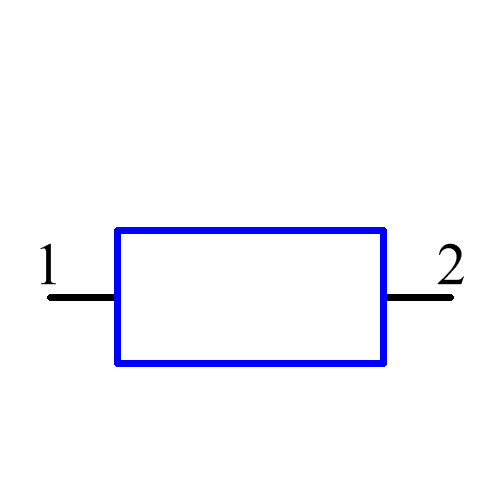

Symbol

AH316M245001-T Symbol - TAIYO YUDEN

AH316M245001-T Symbol - TAIYO YUDEN

AH316M245001-T Symbol - TAIYO YUDEN

AH316M245001-T Symbol - TAIYO YUDEN

‹ ›

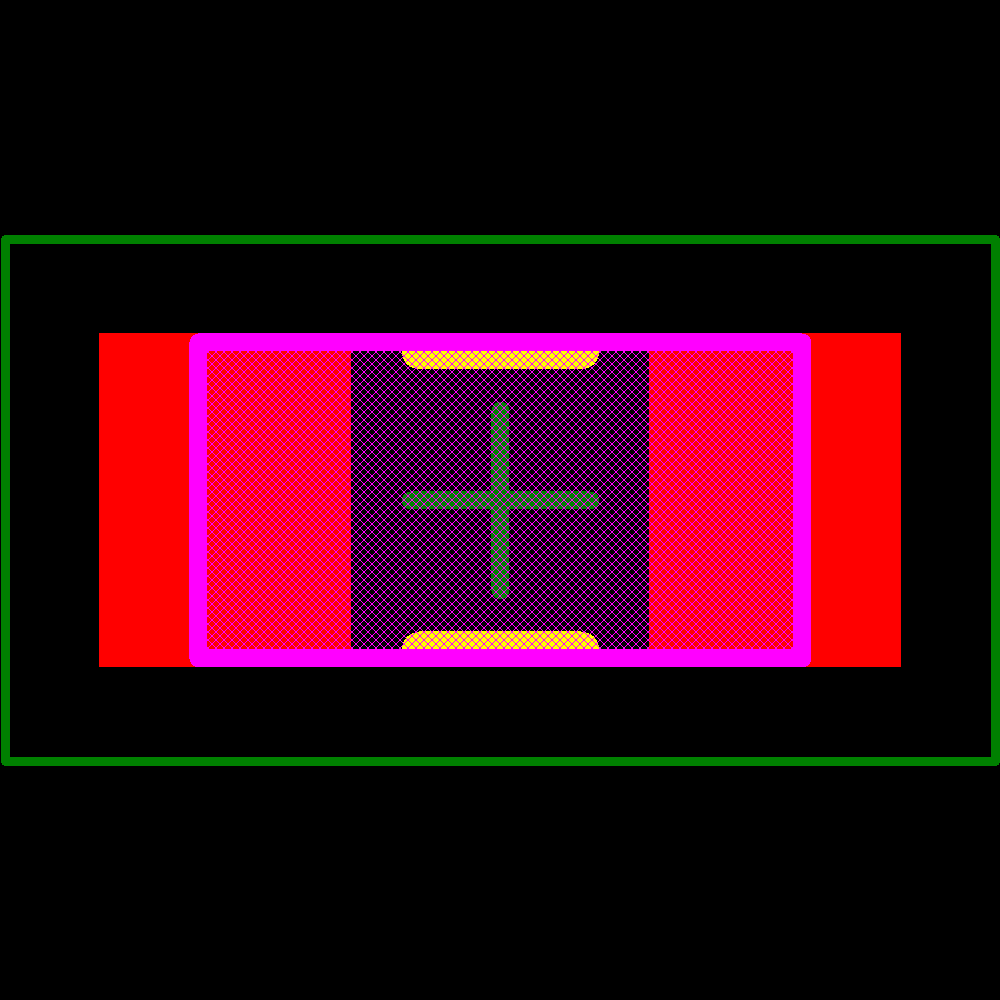

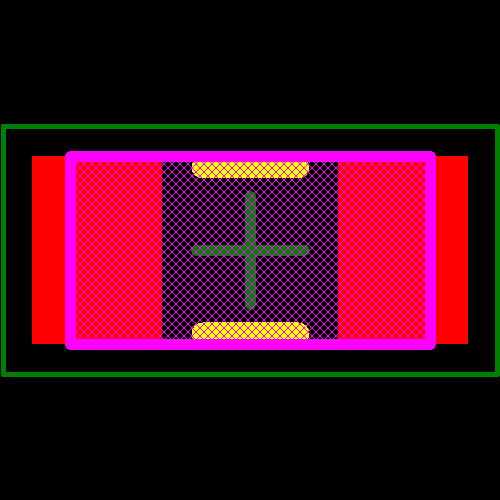

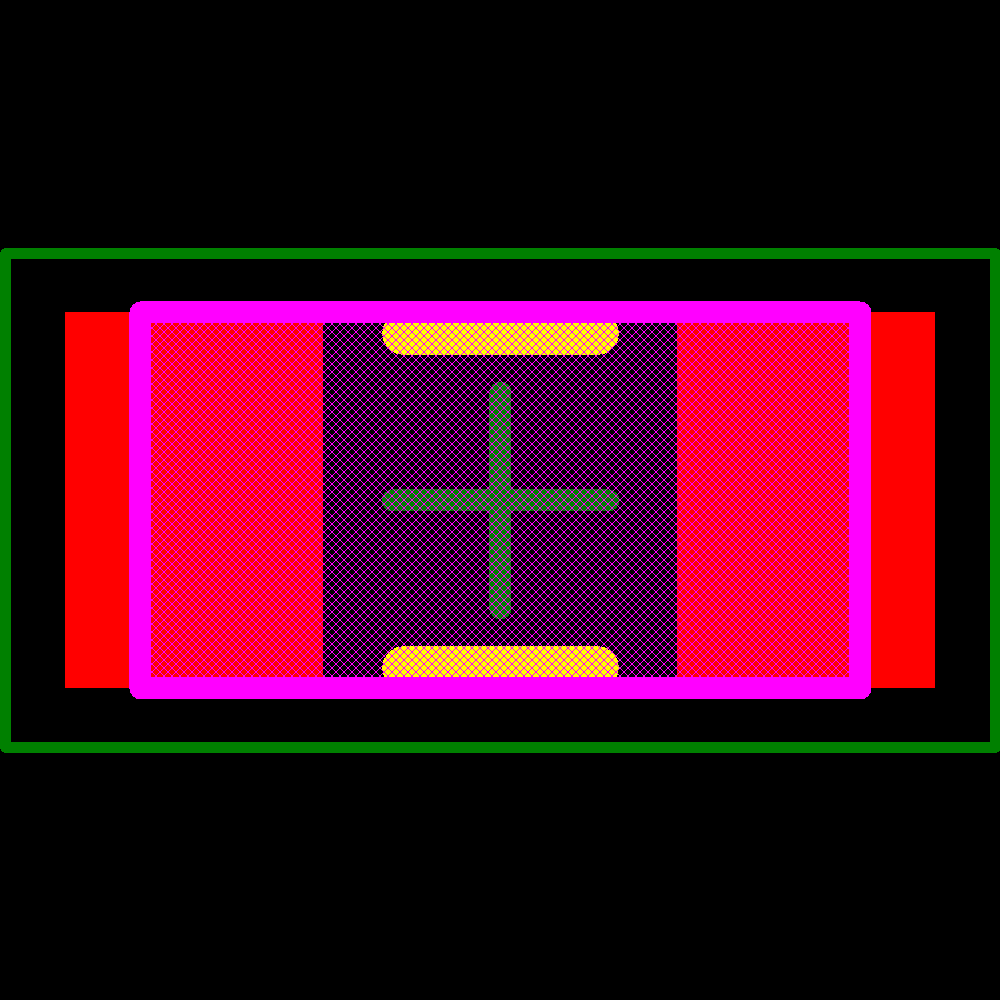

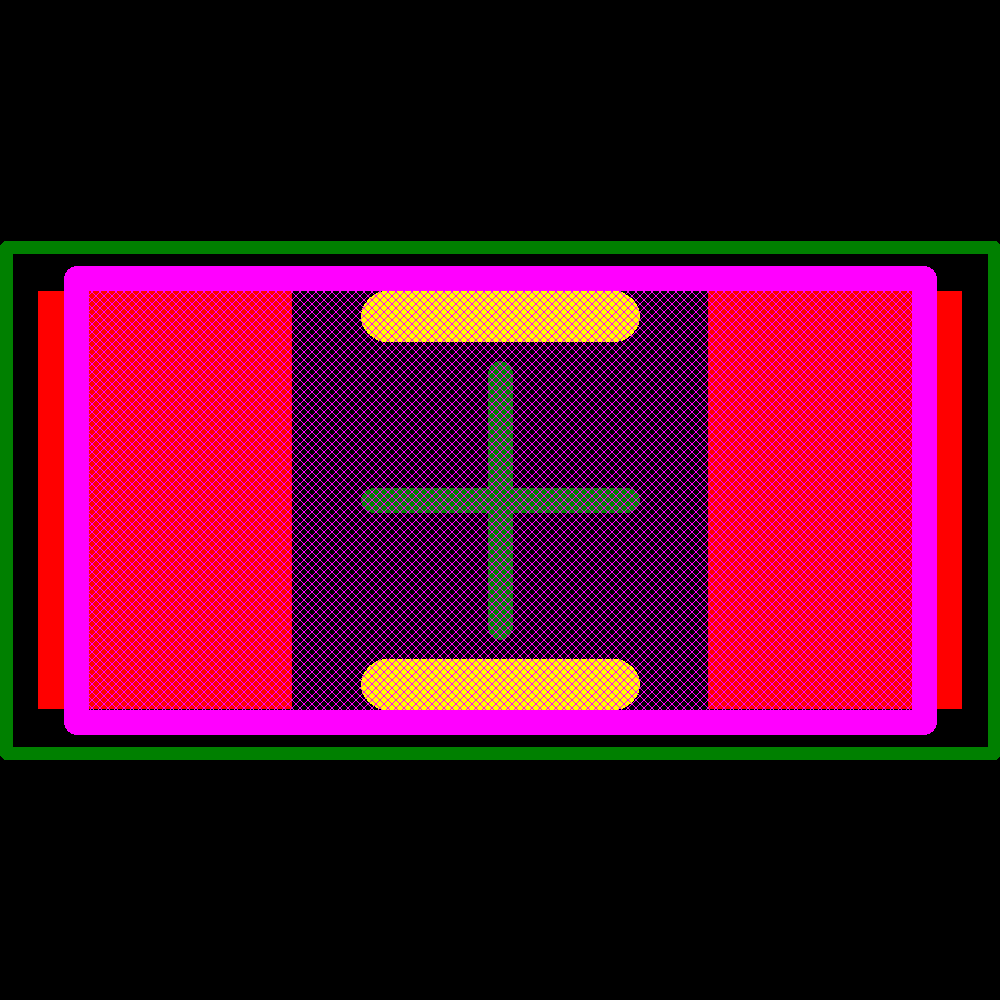

Footprint
