C1608X8R2A222K080AA - TDK
100V 2.2nF X8R 卤10% 0603 Multilayer Ceramic Capacitors MLCC - SMD/SMT ROHS
Technical Details
| Capacitance | 2.2nF |
| Case/Package | 0603 |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| China RoHS | Compliant |
| Composition | Ceramic |
| Depth | 800µm |
| Dielectric | X8R |
| Dielectric Material | Ceramic |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Features | High Temperature |
| Height | 800µm |
| Harmonized Tariff Schedule (HTS) Code | 8532.24.00.20 |
| Introduction Date | 2011-08-16 |
| Length | 1.6mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Material | Ceramic |
| Max Length | 1.7mm |
| Max Operating Temperature | 150°C |
| Max Width | 900µm |
| Min Length | 1.5mm |
| Min Operating Temperature | -55°C |
| Min Width | 700µm |
| Mount | Surface Mount |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Cut Tape (CT) |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Thickness | 939.8µm |
| Tolerance | 10% |
| Voltage Rating | 100V |
| Voltage Rating (DC) | 100V |
| Weight | 2.012816mg |
| Width | 800µm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

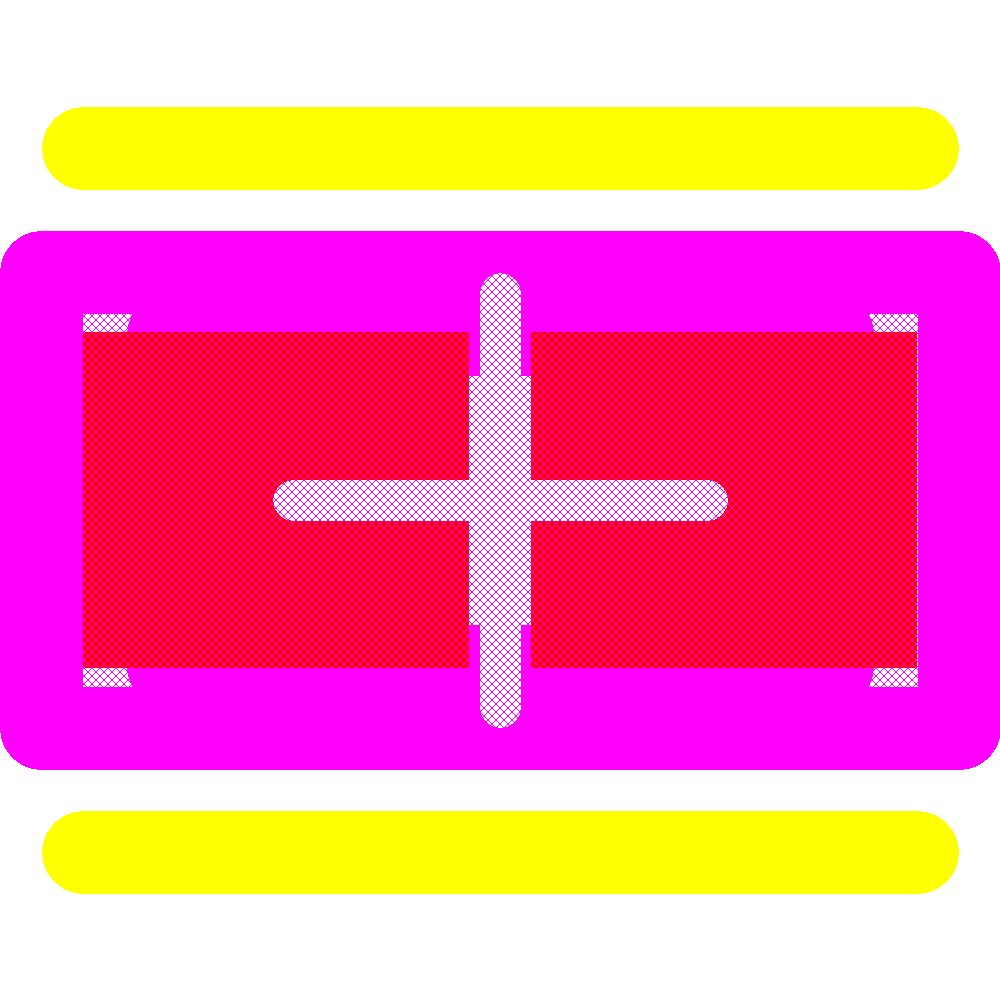

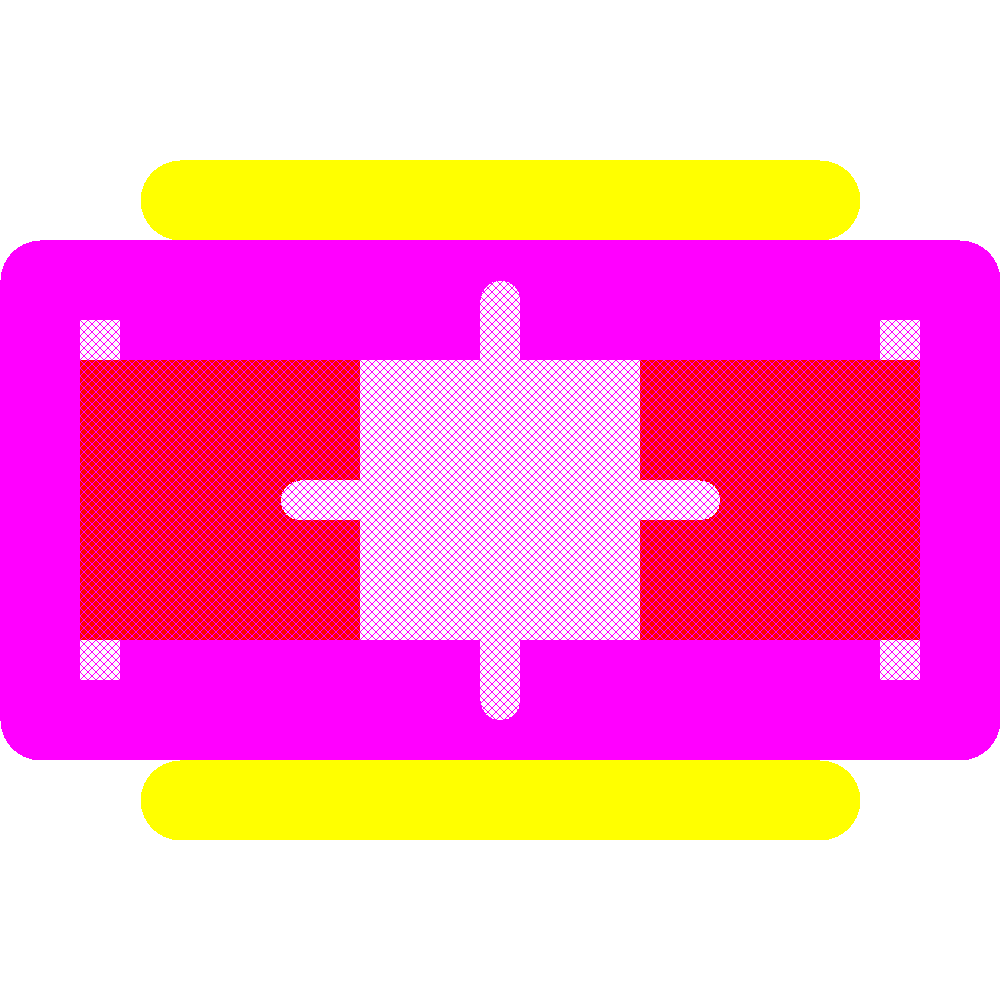

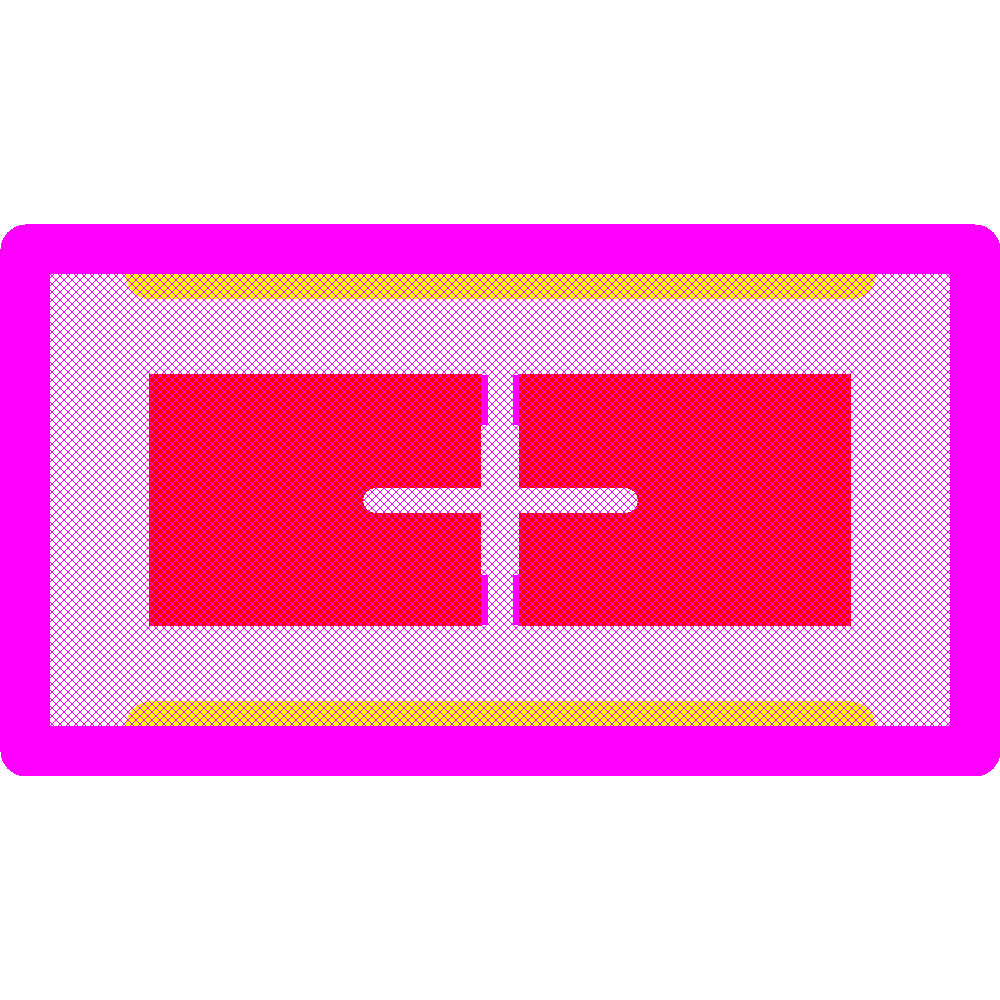

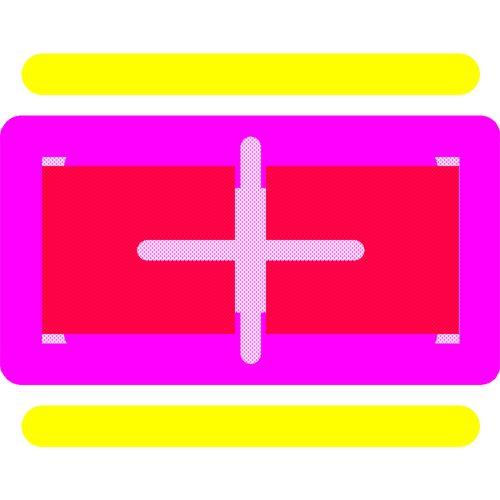

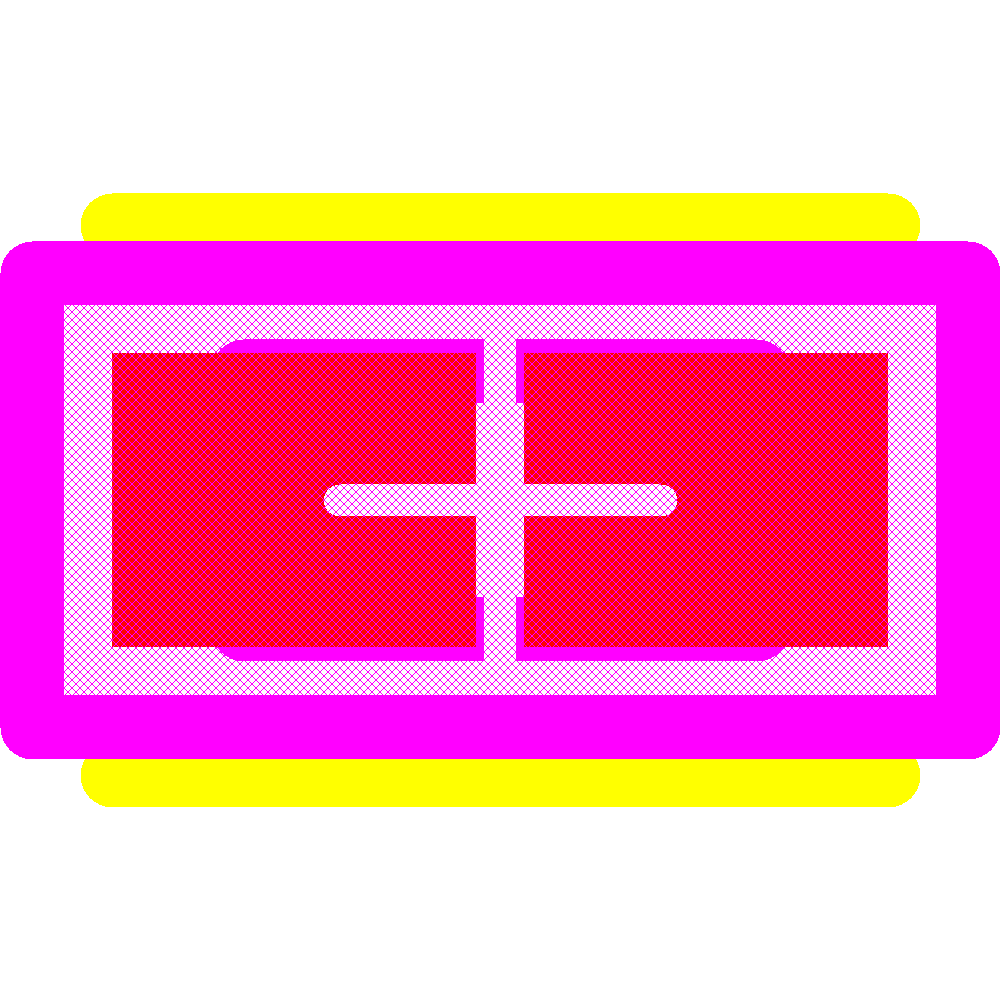

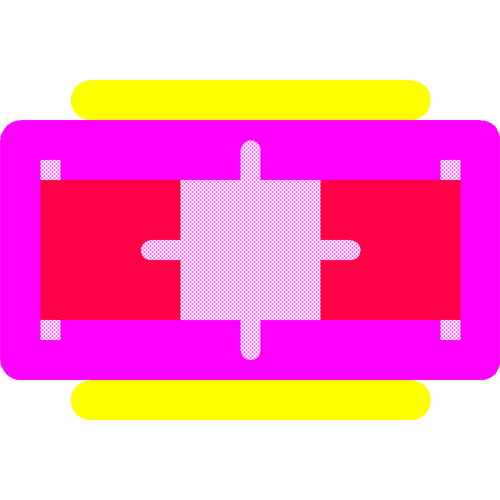

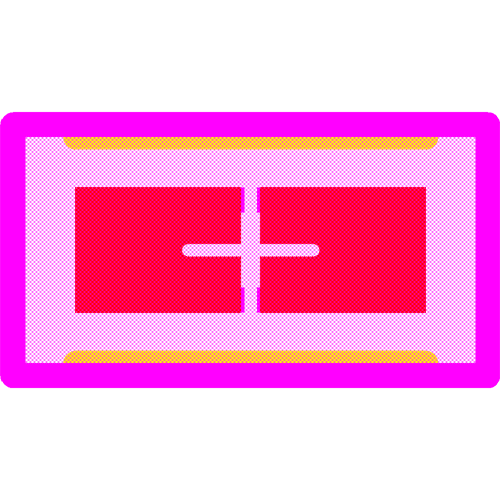

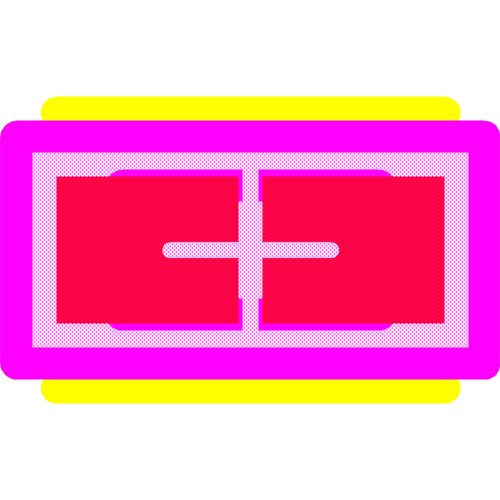

Images
