C2012X7S1E106K125AC - TDK
25V 10uF X7S 卤10% 0805 Multilayer Ceramic Capacitors MLCC - SMD/SMT ROHS
Technical Details
| Capacitance | 10µF |
| Case/Package | 0805 |
| Case Code (Metric) | 2012 |
| China RoHS | Compliant |
| Dielectric | X7S |
| Dielectric Material | Ceramic |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.25mm |
| Harmonized Tariff Schedule (HTS) Code | 8532.24.00.20 |
| Introduction Date | 2018-09-26 |
| Lead Free | Lead Free |
| Length | 2mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Material | Ceramic |
| Max Length | 2.25mm |
| Max Operating Temperature | 125°C |
| Max Width | 1.5mm |
| Min Length | 1.85mm |
| Min Operating Temperature | -55°C |
| Min Width | 1.1mm |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8532240020, 8532240020|8532240020|8532240020|8532240020|8532240020 |
| Thickness | 1.25mm |
| Tolerance | 10% |
| Voltage Rating | 25V |
| Voltage Rating (DC) | 25V |
| Width | 1.25mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

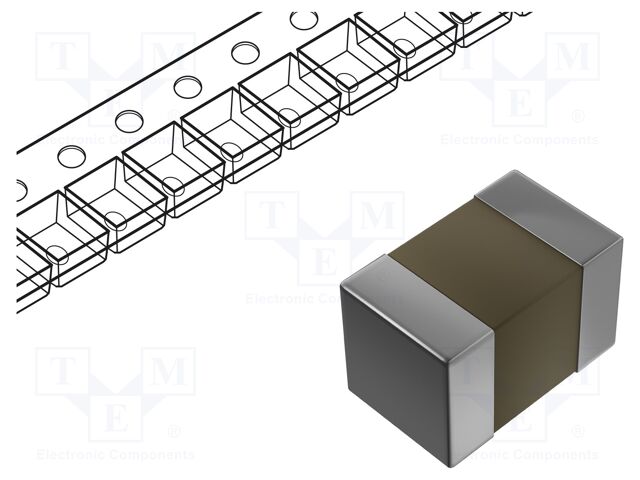

Images
