CGA5L2X8R1E105K160AE - TDK
Cap Ceramic 1uF 25V X8R 10% Pad SMD 1206 Soft Termination 150C Automotive T/R
Technical Details
| Capacitance | 1µF |
| Case/Package | 1206 |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| China RoHS | Compliant |
| Country of Origin | Japan |
| Dielectric Material | Ceramic |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Features | Soft Termination |
| Height | 1.6mm |
| Harmonized Tariff Schedule (HTS) Code | 8532.24.00.20 |
| Introduction Date | 2017-03-17 |
| Length | 3.2mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Material | Ceramic |
| Max Length | 3.6mm |
| Max Operating Temperature | 150°C |
| Max Width | 1.9mm |
| Min Length | 3mm |
| Min Operating Temperature | -55°C |
| Min Width | 1.4mm |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Ratings | AEC-Q200 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Thickness | 1.905mm |
| Tolerance | 10% |
| Voltage Rating | 25V |
| Voltage Rating (DC) | 25V |
| Width | 1.6mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

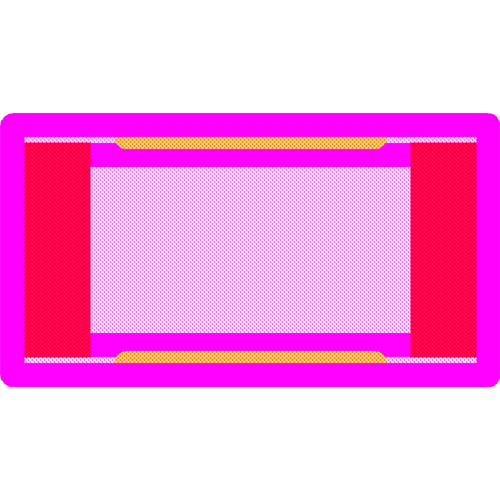

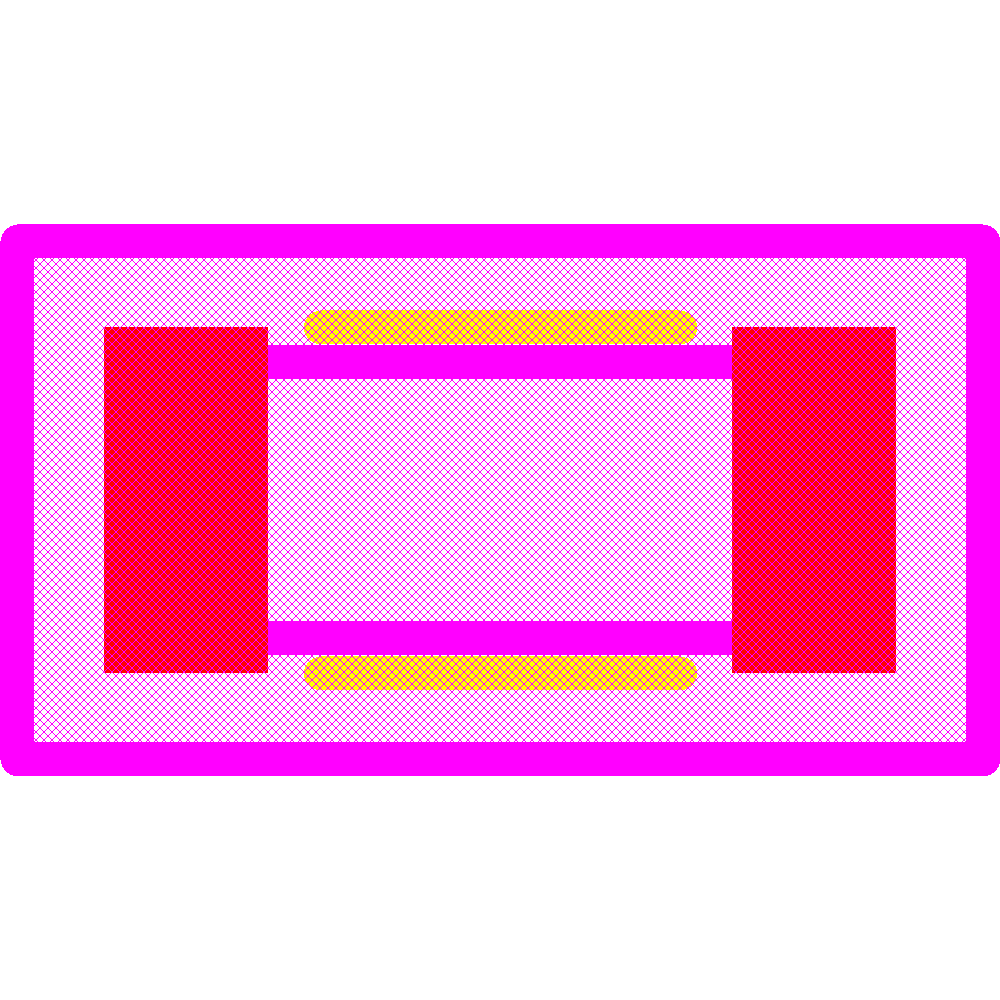

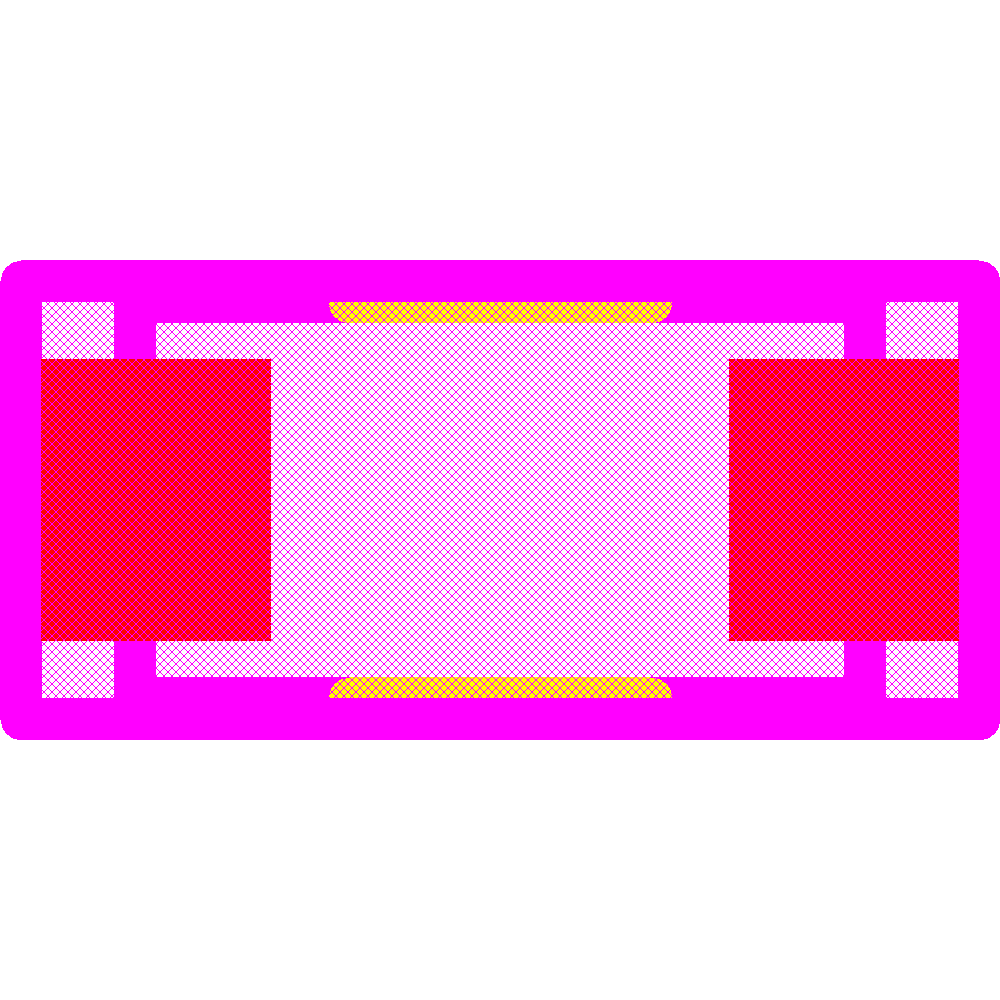

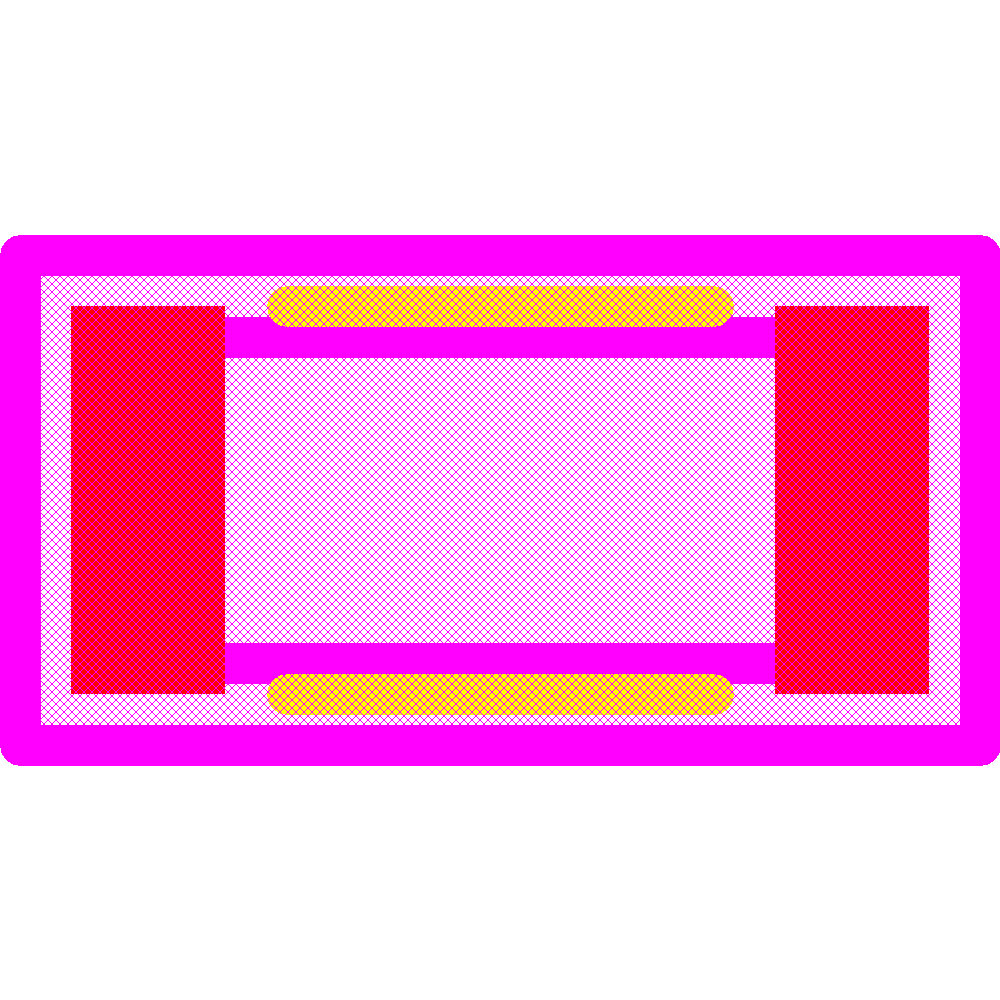

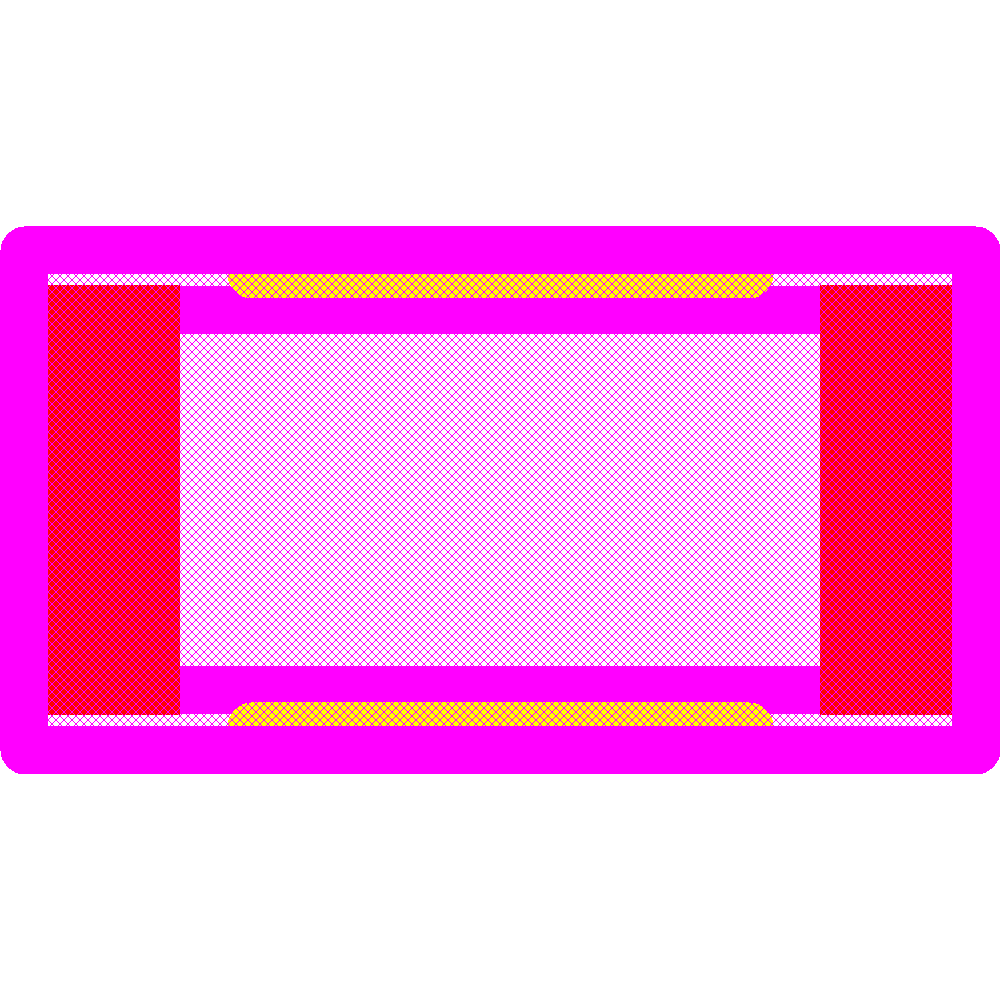

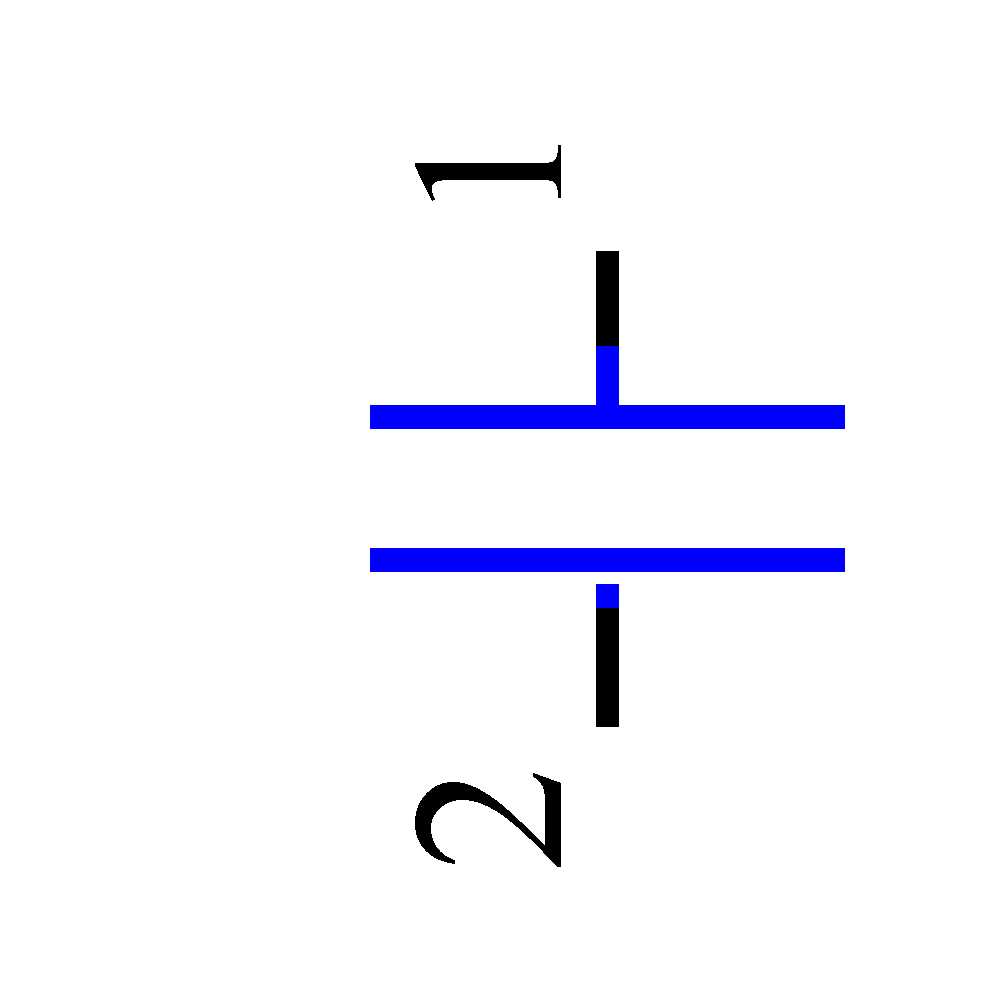

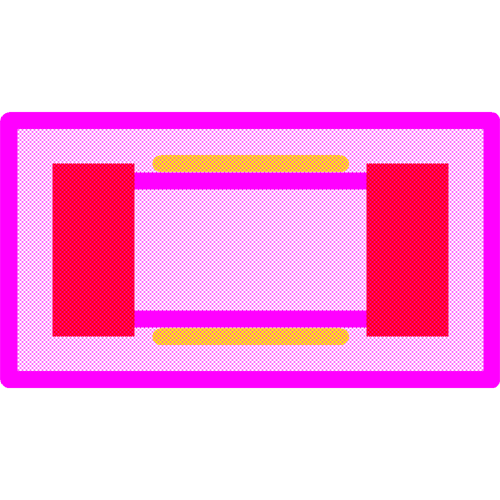

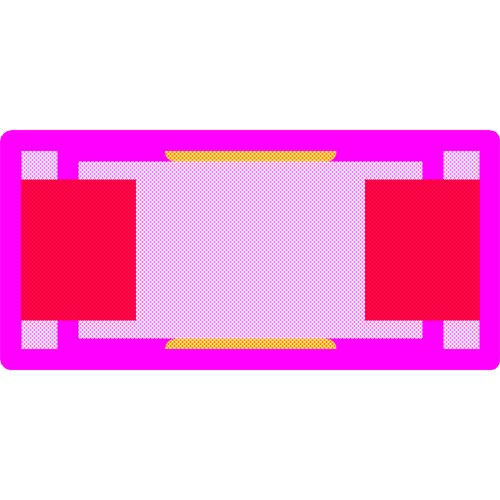

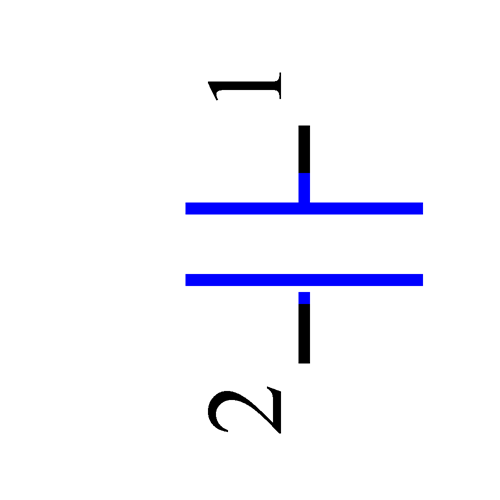

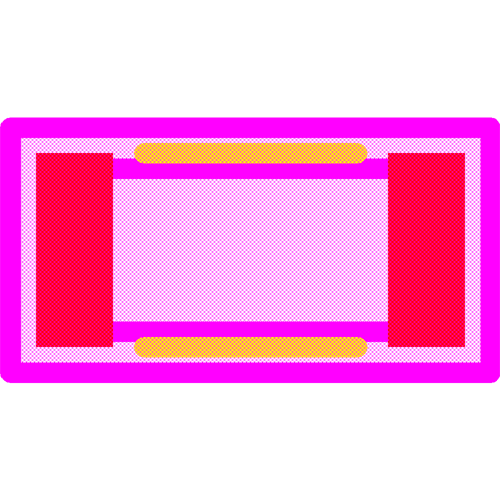

Images
