DEA162500LT-1217A1 - TDK
RF Filter Low Pass 2500MHz 2400MHz to 2500MHz 0.48dB 50Ohm SMD 6Pin 0603 T/R
Technical Details
| Bandwidth | 100MHz |
| Case/Package | 0603 |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Cutoff Frequency | 2.5GHz |
| Height | 600µm |
| Insertion Loss (dB) | 0.48dB |
| Introduction Date | 2004-03-05 |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Length | 1.7mm |
| Max Operating Temperature | 85°C |
| Max Thickness | 700µm |
| Max Width | 900µm |
| Min Length | 1.5mm |
| Min Operating Temperature | -40°C |
| Min Thickness | 500µm |
| Min Width | 700µm |
| Mount | Surface Mount |
| Number of Terminals | 6 |
| Packaging | Cut Tape (CT) |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Width | 800µm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

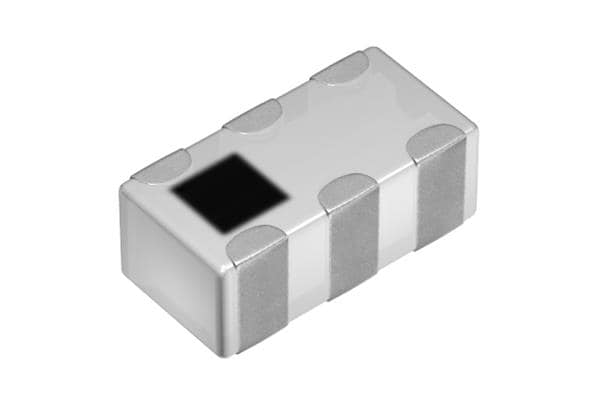

Images
