DEA252593BT-2074A3 - TDK
RF Filter Band Pass 2593MHz 2496MHz to 2690MHz 2.5dB 50Ohm SMD 4Pin 1008 T/R
Technical Details
| Bandwidth | 194MHz |
| Case/Package | 1008 |
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| China RoHS | Compliant |
| Country of Origin | Mainland China |
| Cutoff Frequency | 2.593GHz |
| Frequency | 2.593GHz |
| Height | 1mm |
| Impedance | 50Ω |
| Insertion Loss (dB) | 2.5dB |
| Introduction Date | 2007-06-25 |
| Lead Free | Lead Free |
| Length | 2.5mm |
| Lifecycle Status | NRND |
| Manufacturer Lifecycle Status | PRODUCTION (NOT RECOMMENDED FOR NEW DESIGN) |
| Max Length | 2.7mm |
| Max Operating Temperature | 85°C |
| Max Thickness | 1mm |
| Max Width | 2.2mm |
| Min Length | 2.3mm |
| Min Operating Temperature | -40°C |
| Min Width | 1.8mm |
| Mount | Surface Mount |
| Number of Terminals | 4 |
| Packaging | Digi-Reel® |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Width | 2mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

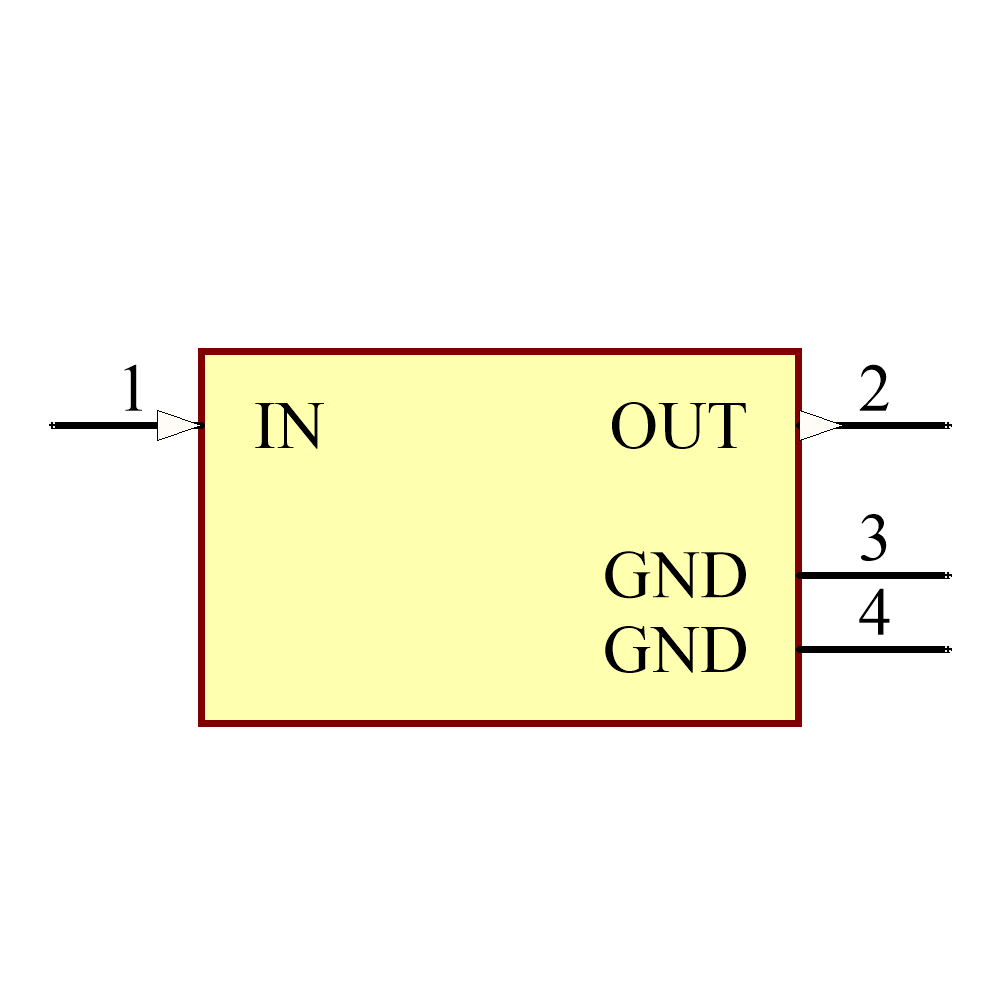

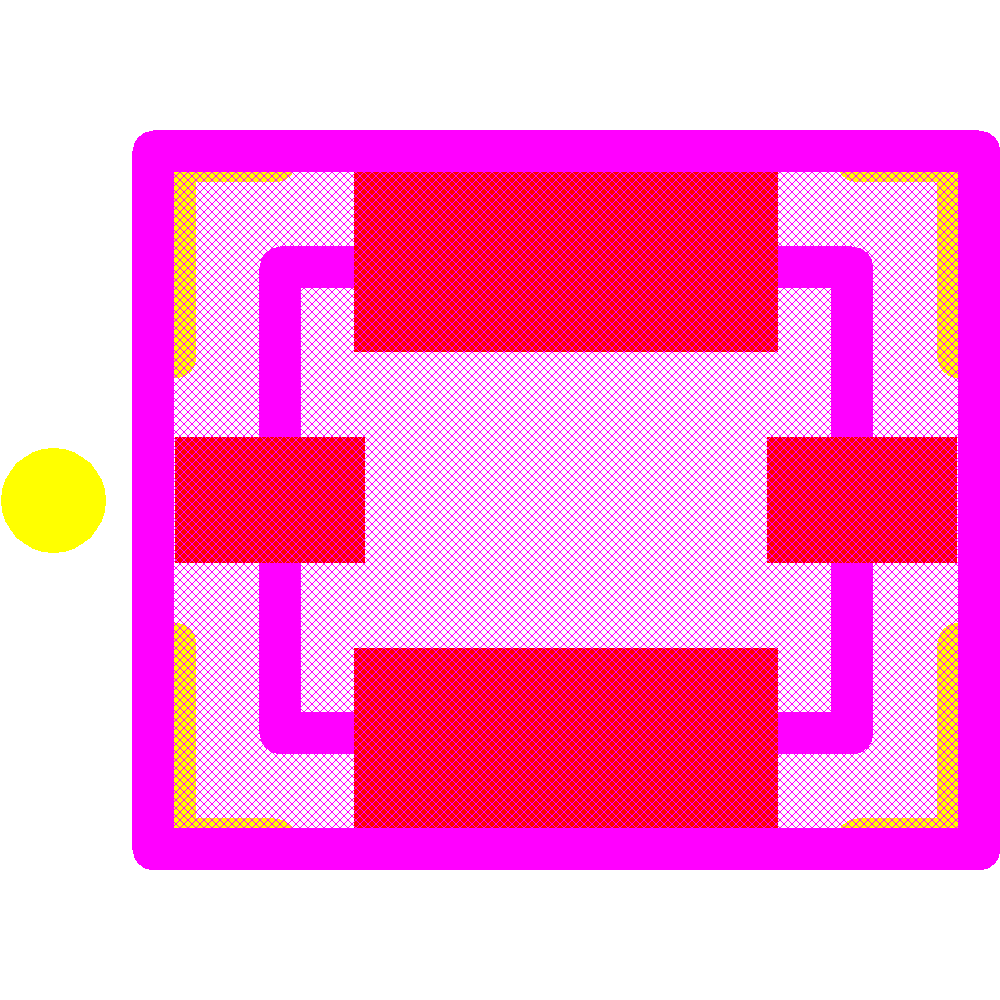

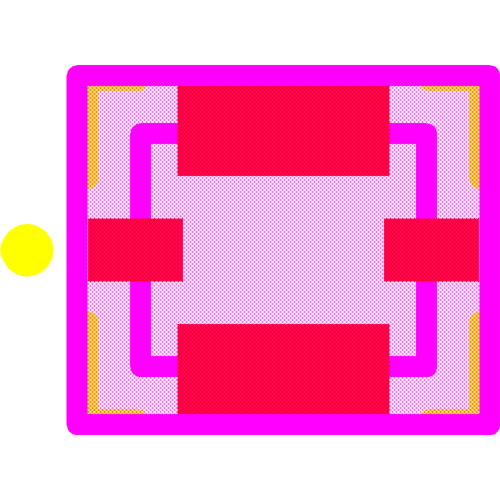

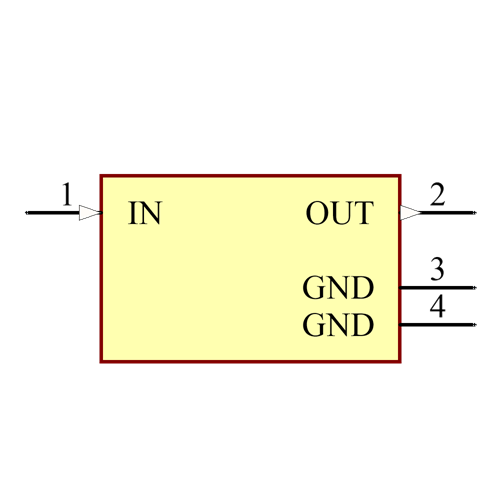

Images
