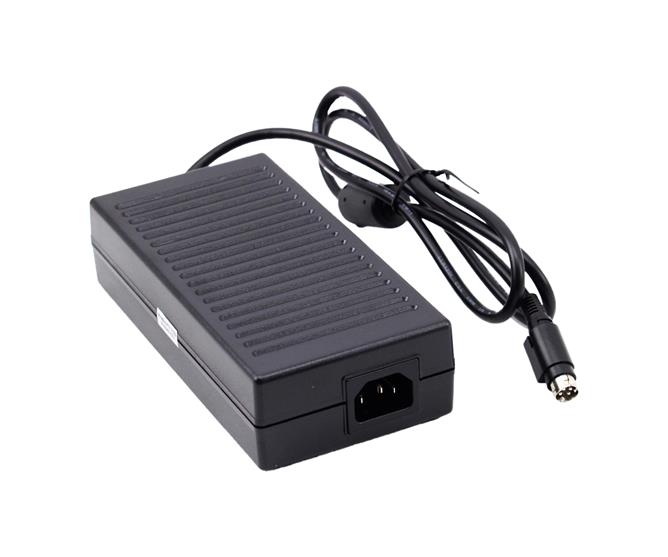

DT150PW190D - TDK-Lambda
Ac-dc Power Supply, Adapter, 19V, 7.9A, 150W, Level VI, DT100/150-C Series
Technical Details
| Approvals | CSA, EN, IEC, UL |
| Connector Type | Power |
| Cord Length | 1.050036m |
| Current - Output 1 | 7.9A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 89% |
| Height | 43.942mm |
| Height - Seated (Max) | 44mm |
| Introduction Date | 2021-06-02 |
| Length | 170mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | CURRENT/AVAILABLE |
| Max Current Rating | 2.5A |
| Max Input Voltage | 264V |
| Max Input Voltage (AC) | 264V |
| Max Operating Temperature | 60°C |
| Max Output Current | 7.9A |
| Max Output Power | 150W |
| Max Power Dissipation | 150W |
| Min Input Voltage | 90V |
| Min Input Voltage (AC) | 90V |
| Min Operating Temperature | -20°C |
| Nominal Input Voltage | 230V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Output Power | 150W |
| Output Voltage | 19V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Voltage - Output 1 | 19V |
| Weight | 816.466266g |
| Width | 85mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
