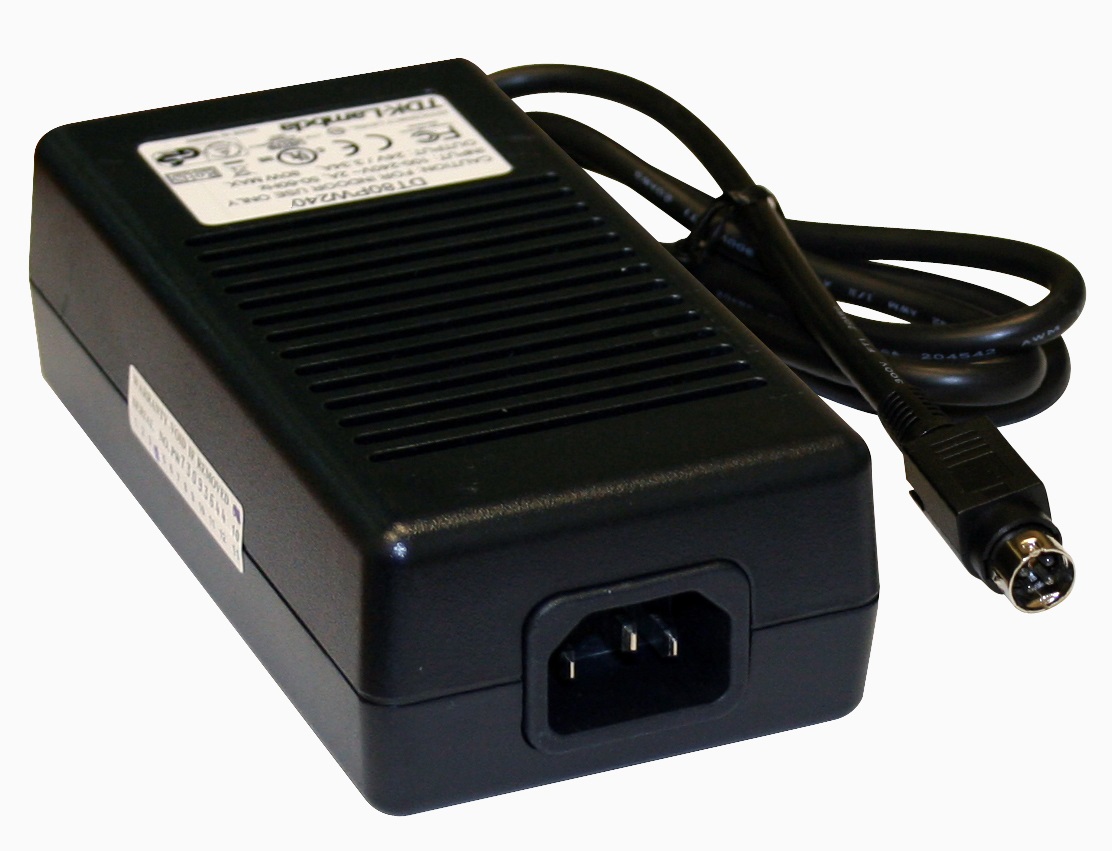

DT62PW120D - TDK-Lambda
Ac-Dc, Adapter, Input 115-230Vac, Output 12V 5.41A, 65W Rohs Compliant: Yes
Technical Details
| Approvals | CSA, EN, IEC, UL |
| Connector Type | Power |
| Cord Length | 1.050036m |
| Current - Output 1 | 5.41A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 89% |
| Height | 39.878mm |
| Height - Seated (Max) | 40mm |
| Introduction Date | 2020-01-22 |
| Length | 132mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | CURRENT/AVAILABLE |
| Max Input Voltage | 264V |
| Max Input Voltage (AC) | 264V |
| Max Operating Temperature | 70°C |
| Max Output Current | 5.41A |
| Max Output Power | 65W |
| Max Output Voltage | 12.6V |
| Max Power Dissipation | 62W |
| Min Input Voltage | 90V |
| Min Input Voltage (AC) | 90V |
| Min Operating Temperature | 0°C |
| Min Output Voltage | 11.4V |
| Nominal Input Voltage | 230V |
| Nominal Output Voltage | 12V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Output Power | 65W |
| Output Voltage | 12V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8504409520|8504409520|8504409520|8504409520|8504409520 |
| Voltage - Output 1 | 12V |
| Weight | 400.06847g |
| Width | 69mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
