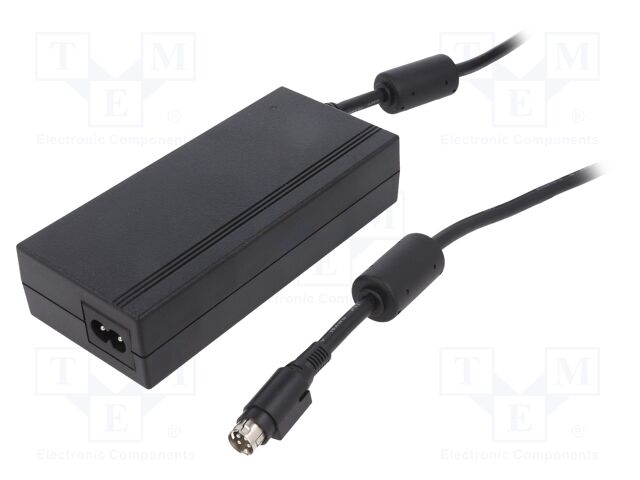

DTM110PW280C8 - TDK-Lambda
Ac-dc Power Supply, Medical & Ite, Adapter, 110W, 28V@3.93A, DTM110-C8 Series
Technical Details
| Approvals | CSA, EN, IEC, UL |
| Body Material | Plastic |
| Efficiency | 89% |
| Height - Seated (Max) | 33mm |
| Length | 140mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | CURRENT/AVAILABLE |
| Max Input Voltage | 264V |
| Max Operating Temperature | 60°C |
| Max Output Current | 3.93A |
| Max Output Power | 110W |
| Max Output Voltage | 29.4V |
| Min Input Voltage | 90V |
| Min Operating Temperature | -20°C |
| Min Output Voltage | 26.6V |
| Nominal Input Voltage | 115V |
| Nominal Output Voltage | 28V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Output Power | 110W |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Width | 63mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
