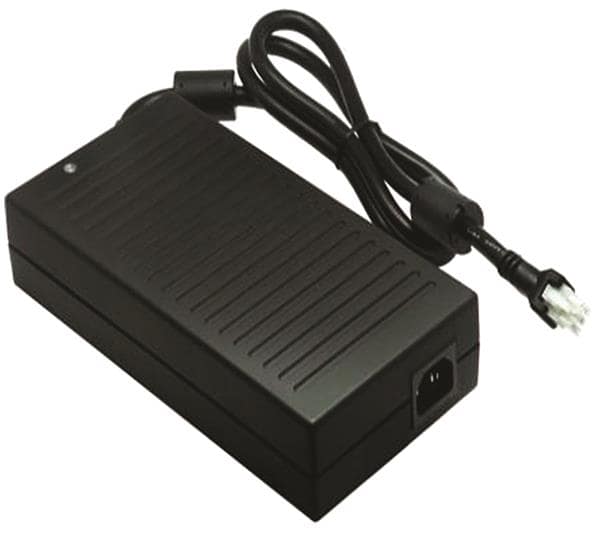

DTM250PW240D - TDK-Lambda
Ac-dc Power Supply, Medical & Ite, Adapter, 250W, 24V@10.41A, DTM250-D Series
Technical Details
| Approvals | CE, CSA, EN, IEC, UL |
| Body Material | Plastic |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 89% |
| Height - Seated (Max) | 45mm |
| Introduction Date | 2021-09-21 |
| Length | 200mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | CURRENT/AVAILABLE |
| Max Input Voltage | 264V |
| Max Operating Temperature | 60°C |
| Max Output Current | 10.416A |
| Max Output Power | 250W |
| Max Output Voltage | 25.2V |
| Min Input Voltage | 90V |
| Min Operating Temperature | -20°C |
| Min Output Voltage | 22.8V |
| Nominal Input Voltage | 115V |
| Nominal Output Voltage | 24V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Output Power | 250W |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Width | 90mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
