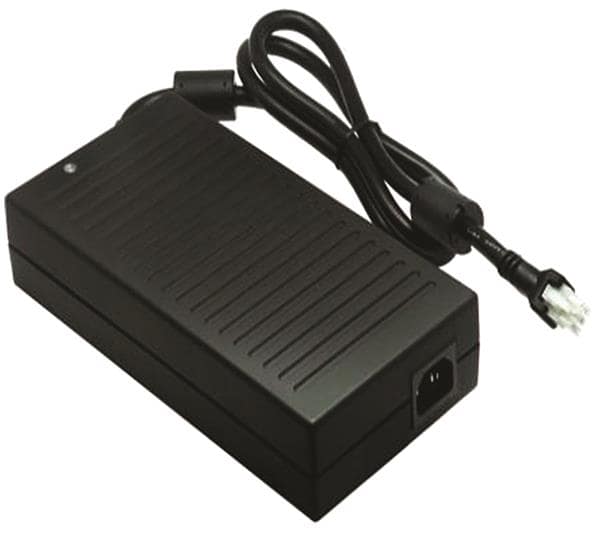

DTM250PW540D - TDK-Lambda
Ac-dc Power Supply, Medical & Ite, Adapter, 250W, 54V@4.629A, DTM250-D Series
Technical Details
| Approvals | CE, CSA, EN, IEC, UL |
| Body Material | Plastic |
| Efficiency | 89% |
| Height - Seated (Max) | 45mm |
| Length | 200mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | CURRENT/AVAILABLE |
| Max Input Voltage | 264V |
| Max Operating Temperature | 60°C |
| Max Output Current | 4.629A |
| Max Output Power | 250W |
| Max Output Voltage | 56.7V |
| Min Input Voltage | 90V |
| Min Operating Temperature | -20°C |
| Min Output Voltage | 51.3V |
| Nominal Input Voltage | 115V |
| Nominal Output Voltage | 54V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Output Power | 250W |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8504409530 |
| Width | 90mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Sager Electronics
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Worldway Electronics |
HK: 59187
|
$ | 47.6108 | 47.6108 | 46.1533 | 43.7242 | 43.7242 | |||
| Augswan |
CN: 78
|
$ | 332.657 | 332.657 | 332.657 | 332.657 | 332.657 | 332.657 | ||
